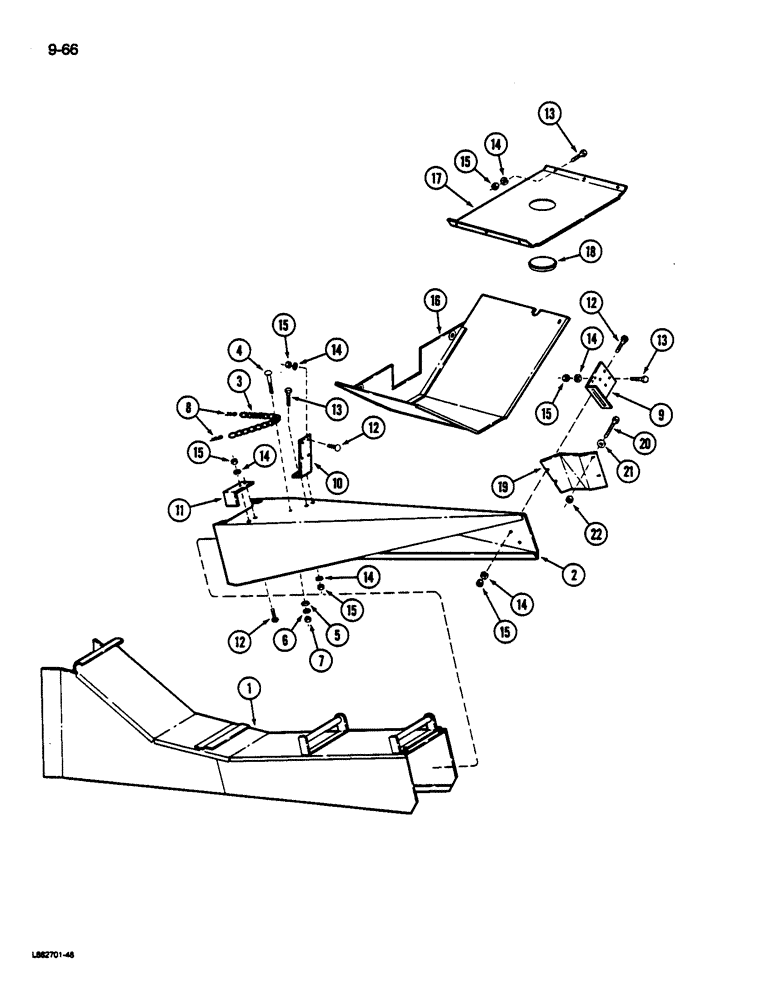

Запчасти Case IH 1822 (9-066) - PLANT GUARD (13) - PICKING SYSTEM

1

87289C2

SHIELD

- plant (Replaces 1278964C5)

2шт.

REF 1. SHIELD DOES NOT COME WITH HANDLE. SHOWN IN LATER MODEL BOOKS. P/N IS 160638C1

1шт.

2

1278973C4

SHIELD

TUNNEL - left

1шт.

2

1278974C4

SHIELD

TUNNEL - right

1шт.

3

655920R91

CHAIN (AG)

CHAIN - tunnel

2шт.

4

598798R1

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1 1/2", Gr 5

BOLT - round head square neck, 1/4 NC x 1-1/2 inch

2шт.

5

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

8

486830R1

COTTER PIN

PIN - quick attachable (Replaces 517843R1)

4шт.

9

1266374C1

SUPPORT

- tunnel

2шт.

10

1266376C4

SUPPORT

- tunnel

2шт.

11

1266377C2

ANGLE BAR

SUPPORT - tunnel

2шт.

12

598808R1

SCREW,Short NK, 3/8"-16 x 1/2", G5, Full Thd

BOLT - round head square neck. 3/8 NC x 1/2 inch

12шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

10шт.

14

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

22шт.

15

120377

NUT,3/8" - 16, Gr 5

22шт.

16

1266371C6

LARGE PLATE

PLATE - deflector

1шт.

17

1266330C3

LARGE PLATE

PLATE - cover

1шт.

18

1302758C1

PLUG

- hole

1шт.

19

87070C2

SHIELD

- deflector, left

1шт.

19

87071C2

SHIELD

- deflector, right

1шт.

20

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

21

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

4шт.

22

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16inch NC

4шт.
