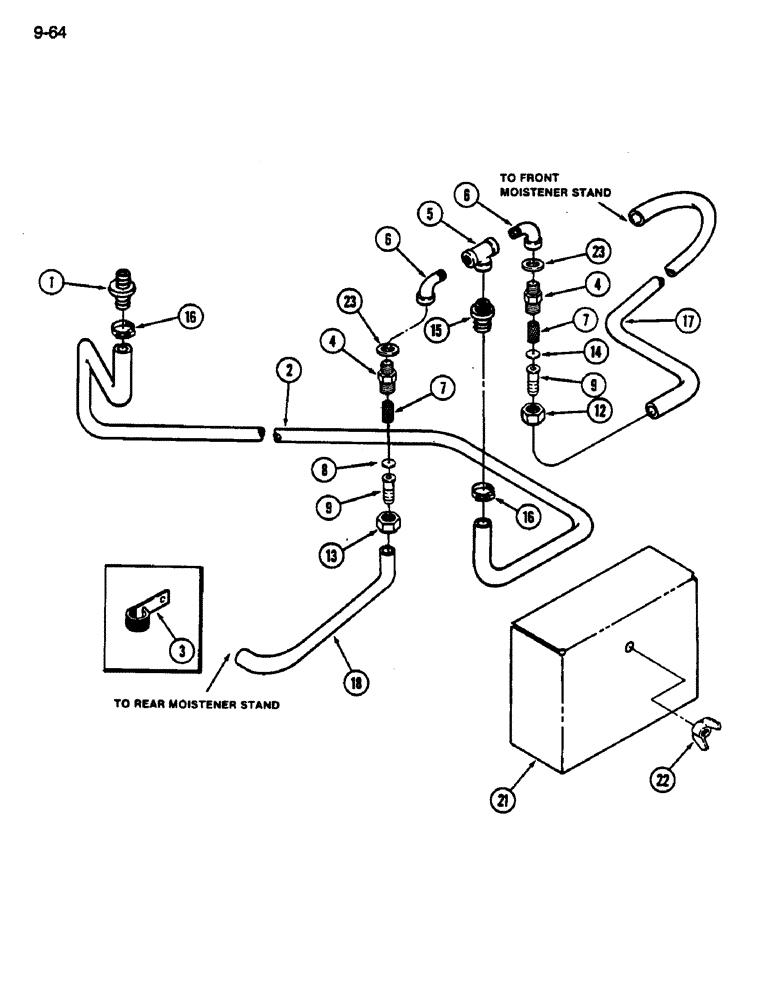

Запчасти Case IH 1822 (9-064) - WATER LINES IN DRUM, PRIOR TO P.I.N. 701 AND AFTER (13) - PICKING SYSTEM

1

87520C1

CONNECTOR, ELEC

CONNECTOR - mender hose, 3/8 inch barb

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - valve supply, 60 inch (1524 mm) (Order 1338159C1 and, Serial Range: cut-length)

1шт.

87769C1

FLEXIBLE HOSE

HOSE - 90 foot length

1шт.

3

362123R1

CLIP

CLAMP - hose

1шт.

4

87204C2

BODY

- nozzle

2шт.

5

444223

ISOLATOR,1/8"-27 Fem

- pipe, 1/8 inch

1шт.

6

444163

ELBOW

- pipe street, 90 degree, 1/8 inch

2шт.

7

87208C2

STRAINER ASSY.

STRAINER

2шт.

8

87679C1

LARGE PLATE

PLATE - orifice, 0.022 inch

1шт.

9

87206C2

SHANK

- hose, brass

2шт.

12

87205C2

CAP

- tee jet, front

1шт.

13

1339136C1

CAP

- tee jet, rear

1шт.

14

87680C1

JET

PLATE - orifice, 0.030 inch

1шт.

15

87521C1

ROD, CONNECTING

CONNECTOR - 1/8 inch x 3/8 inch barb

1шт.

16

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP - hose

2шт.

17

NSS

NOT SOLD SEPARAT

HOSE - front moistener, 50 inch (1 270 mm) (Order 1338159C1 and, Serial Range: cut-length)

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE - rear moistener, 28 inch (711 mm) (Order 1338159C1 and, Serial Range: cut-length)

1шт.

21

87272C1

COVER

- valve support

1шт.

22

142745

NUT, WING

NUT - wing, 5/16 inch NC

1шт.

23

NLS

NO LONGER SERVICED

- flat, 15/32 x 59/64 x 3/64 inch

2шт.
