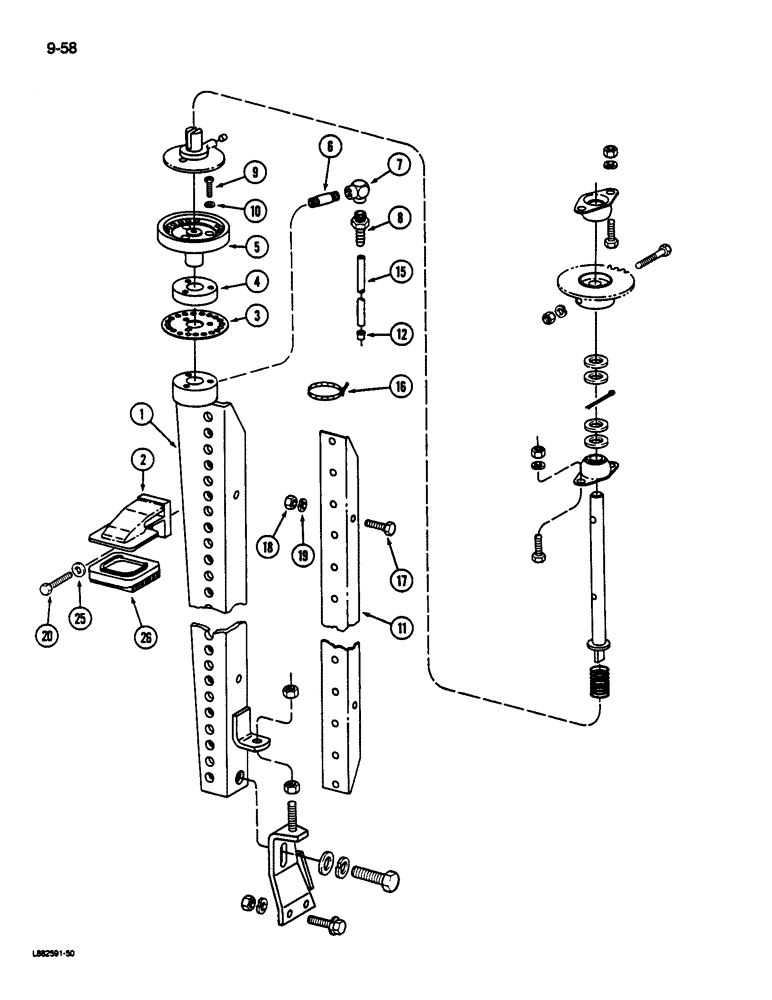

Запчасти Case IH 1822 (9-058) - MOISTENER STAND (13) - PICKING SYSTEM

1339366C2

STAND

ASSEMBLY - moistener, left (Includes items 1 through 17) (Replaces -1329423C91)

1шт.

1339367C2

STAND

ASSEMBLY - moistener, right (Replaces 1329424C91)

1шт.

1

1338998C2

ANGLE

ASSEMBLY - moistener stand left (Replaces 87810C1)

1шт.

1

1338999C2

ANGLE

ASSEMBLY - moistener stand right (Replaces 87811C1)

1шт.

2

214500C1

HOLDER

SUPPORT - moistener pad

18шт.

3

669840R1

LARGE PLATE

PLATE - moistener tube retainer

1шт.

4

669839R1

SPACER

- moistener stand plate

1шт.

5

216608C1

CUP

- water distributor

1шт.

6

110313

PIPE,Nipple, 1/8" NPT x 1 3/4", Brass

NIPPLE - galvanized pipe, 1/8 x 1-3/4 inch

1шт.

7

217-26

ELBOW,90 Degree, 1/8"-27 NPTF, Fem, Brass

- 90 degree, 1/8 inch PT brass

2шт.

8

87521C1

ROD, CONNECTING

FITTING - barbed, 1/8 PT x 3/8 inch

2шт.

9

436754

SCREW,Slotted Pan Hd, #10-32 x 1"

- No. 10 NF x 1 inch

3шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

11

1329244C1

SHIELD

- moistener tube

1шт.

12

669838R1

SPRING CLIP

- tubuiar clip, 1/4 inch

36шт.

670199R2

PIPE,0.25" OD

TUBE - moistener, purchase in 50 foot roll for service, use for servicing the following tubes

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 1 (Shortest tube, 4 inch)

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 2, 6 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 3, 7 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributcr to pad No. 4, 9 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 5, 11 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 6, 13 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 7, 14 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 8, 16 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 9, 17 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 10, 19 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 11, 21 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 12, 23 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 13, 24 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 14, 26 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 15, 28 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 16, 32 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 17, 32 inch

1шт.

15

NSS

NOT SOLD SEPARAT

TUBE - distributor to pad No. 18, 33 inch

1шт.

16

289862C1

CABLE TIE,3/16" x 7"

STRAP - tube retainer

3шт.

17

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 x 3/4 inch

3шт.

18

120376

NUT,5/16"-18, G5

3шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

20

27971R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

- 5/16-18 x 1-1/8 inch, Grade 8

18шт.

25

390304C1

WASHER

- flat, 11/32 x 11/16 x 1/16 inch

18шт.

26

1338720C1

SKID/SHOE

PAD - spindle moistener (Alternate with 216115C1)

36шт.

26

216115C1

WEAR PAD

PAD - spindle moistener (Alternate with 1338720C1) Continued on next page

36шт.
