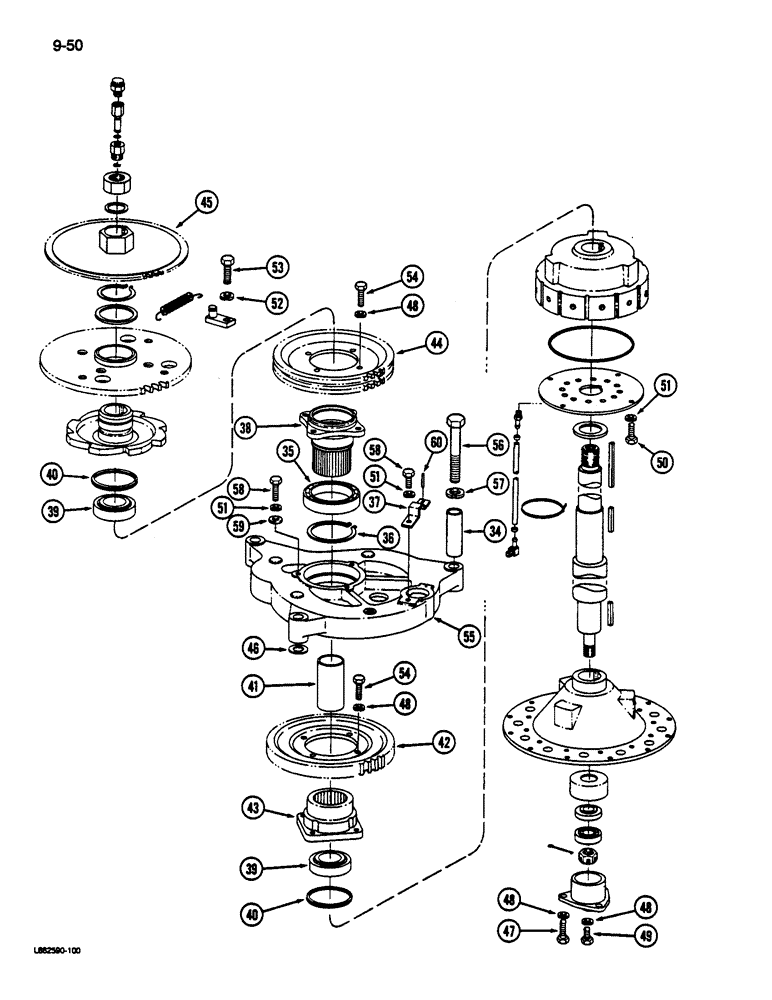

Запчасти Case IH 1822 (9-050) - DRUM ROTOR AND DRIVE CAMS, PICKER BAR DRUM LUBRICATION SYSTEM (13) - PICKING SYSTEM

34

657744R1

SPACER

- cam

3шт.

35

201118C91

BEARING ASSY,65mm ID x 100mm OD x 18mm W

BEARING - cam center

2шт.

36

300048R1

SNAP RING,#255, Ext

Ring, Snap, #255, Ext

2шт.

37

216138C1

SUPPORT

- cam roller access

2шт.

38

220358C1

HUB

- spindle drive sprocket

2шт.

39

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING - drum drive shaft

2шт.

40

560819R1

SNAP RING,#283, 3.009", Int, Spiral

RING - retaining

2шт.

41

672448R2

SPACER

- inner bearing

2шт.

42

216588C1

PINION

GEAR - spindle drive

2шт.

43

216511C1

HUB

- spindle gear

2шт.

44

668560R1

SPROCKET ASSY.

SPROCKET - spindle driven

2шт.

45

1278566C2

SPROCKET ASSY.

SPROCKET ASSEMBLY - moistener drive

1шт.

46

201542C1

SHIM

- cam level, 0.010 inch

1шт.

47

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

48

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

24шт.

49

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

- hex, 3/8 NC x 1/2 inch

2шт.

50

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT - hex, 5/16 NC x 3/4 inch

8шт.

51

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

52

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

53

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- hex, 1/2 NF x 1 inch

4шт.

54

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

- hex, 3/8 NF x 3/4 inch

16шт.

55

216576C2

CAM

- cotton picker left

1шт.

55

216577C2

CAM

- cotton picker right

1шт.

56

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

- hex, 5/8 NC x 7-1/2 inch

6шт.

57

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

58

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

8шт.

59

O398

WASHER - flat, 11/32 x 7/8 x 3/64 inch

6шт.

60

25954R1

LOCK PIN,9/64" x 1", Slotted

Pin, 9/64" x 1", Slotted

2шт.
