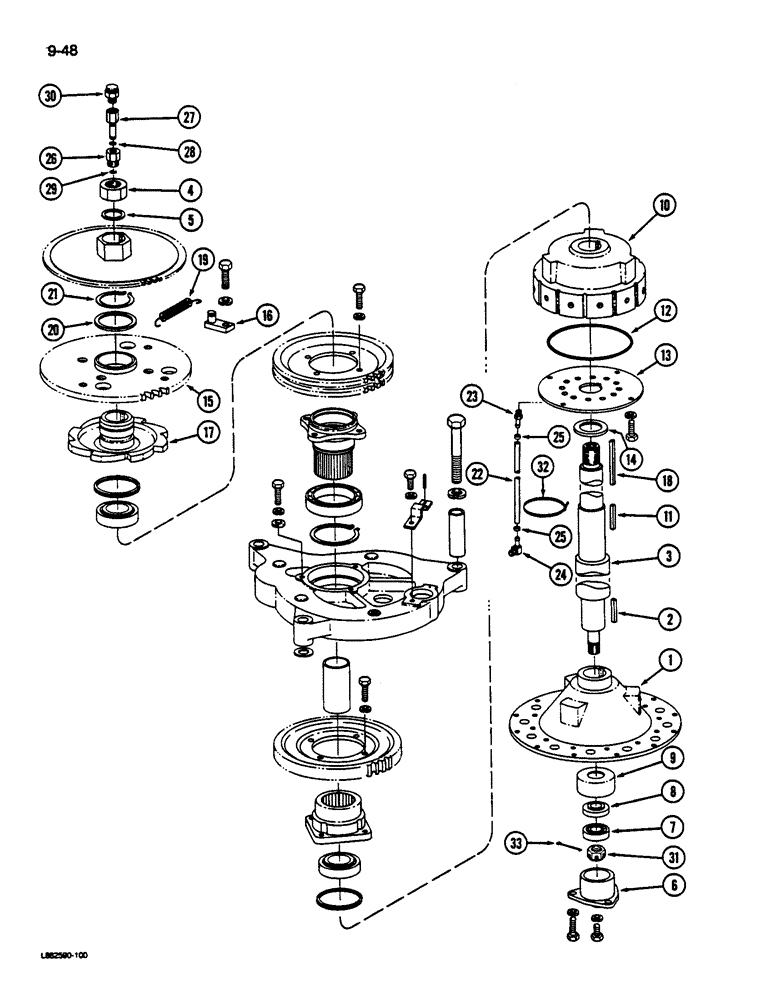

Запчасти Case IH 1822 (9-048) - DRUM ROTOR AND DRIVE CAMS, PICKER BAR DRUM LUBRICATION SYSTEM (13) - PICKING SYSTEM

1

216597C1

SUPPORT

- picker bar

2шт.

2

Q1443

KEY,5/16" Sq x 1 1/2", Par

- square parallel, 5/16 x 1-1/2 inch

2шт.

3

216508C1

SHAFT

- picker drum

2шт.

4

672496R1

LOCK NUT,1 1/8"-12, GA

NUT - lock, 1-1/8 inch NF, Grade 1

2шт.

5

478258R1

WASHER

- flat, 1-5/32 x 1-3/4 x 7/64 inch

2шт.

6

669806R2

CAGE

- pedestal lower bearing

2шт.

7

669807R91

BALL BEARING,0.751" ID x 52 mm OD x 0.7"

- pedestal lower

2шт.

8

669808R1

WASHER

- drum shaft lower

2шт.

9

669809R1

SHIELD

- pedestal lower bearing

2шт.

10

216668C1

HOLDER

- journal bearing

2шт.

11

586879R1

KEY

- square parallel, 5/16 x 2 inch

2шт.

12

27270R1

O-RING,0.103" Thk x 5.987" ID, -163, Cl 7, 75 Duro

- 6 x 6-3/16 inch

2шт.

13

216670C1

RETAINER

- bearing head

2шт.

14

221529C1

WASHER,42mm ID x 66mm OD x 5.5mm Thk

- drum rotor

2шт.

15

661717R94

SPROCKET ASSY.

SPROCKET ASSEMBLY - drive

2шт.

16

665022R93

BAR

PAWL ASSEMBLY - ratchet

4шт.

17

86846C1

RATCHET

- clutch

2шт.

18

471069R1

KEY,5/16" Sq x 4", Par

- square parallel, 5/16 x 4 inch

2шт.

19

204856C1

SPRING

ASSEMBLY - drawbar

4шт.

20

633090R1

WASHER

- flat, 29/32 x 2-3/4 x 1/16 inch

2шт.

21

644771R1

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

2шт.

22

NSS

NOT SOLD SEPARAT

TUBING - picker bar grease line, 16 inch (Cut from 87535C3)

24шт.

87535C3

TUBE

TUBING - 50 foot roll

1шт.

23

214621C1

FITTING

- hose

24шт.

24

209478C1

ELBOW

- picker bar

24шт.

25

215572C1

CLAMP

- grease hose

48шт.

26

216307C1

BUSHING

- lubrication swivel, outer

2шт.

27

1288864C1

BUSHING

- lubrication swivel, inner

2шт.

28

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

29

204502R1

SNAP RING,#43, Ext

2шт.

30

37290D

LUBE NIPPLE,1/4"-18 NPT x 1.25" lg, But Hd

FITTING - 1/4 inch NPTF

2шт.

31

427639

SLOTTED NUT,3/4"-16, G5

NUT - 3/4 inch NF

2шт.

32

533959R1

CABLE TIE,.135" x 11"

STRAP - cable lock

2шт.

33

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4", Continued on next page

2шт.
