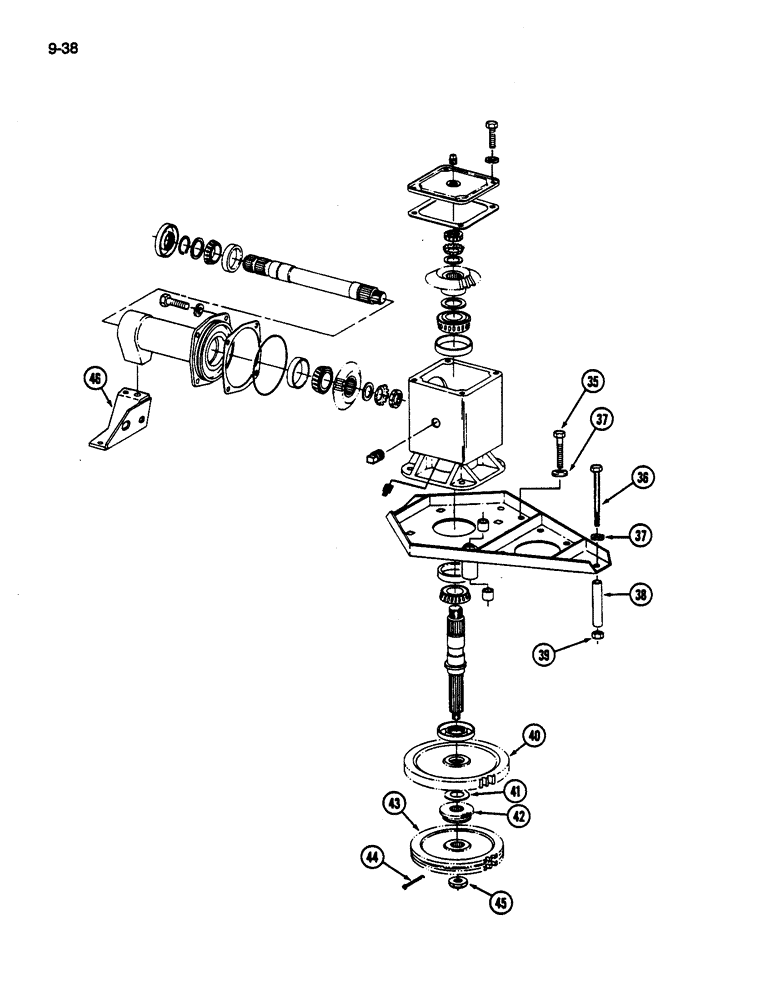

Запчасти Case IH 1822 (9-038) - GEAR BOX, DRUM NUMBER 1 AND 2, 1822 COTTON PICKER (13) - PICKING SYSTEM

35

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

10шт.

36

25689R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 8

- hex, 1/2 NC x 7-1/2 inch, Grade 8

2шт.

37

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

38

1266278C1

TUBE,0.75" OD, 160.5" Length

- spacer

2шт.

39

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

40

1266259C2

GEAR

- drum drive

2шт.

41

11926R

SHIM

- drum drive sprocket

1шт.

42

1266250C1

SPROCKET ASSY.

SPROCKET - picker drum drive

2шт.

43

1266260C1

SPROCKET ASSY.

SPROCKET - spindle and doffer drive

2шт.

44

132-336

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

2шт.

45

359040R1

NUT

- hex slotted, 7/8-14 inch

2шт.

46

REF

INSTRUCTION

BRACKET ASSEMBLY - housing support (See Page 9-37)

1шт.
