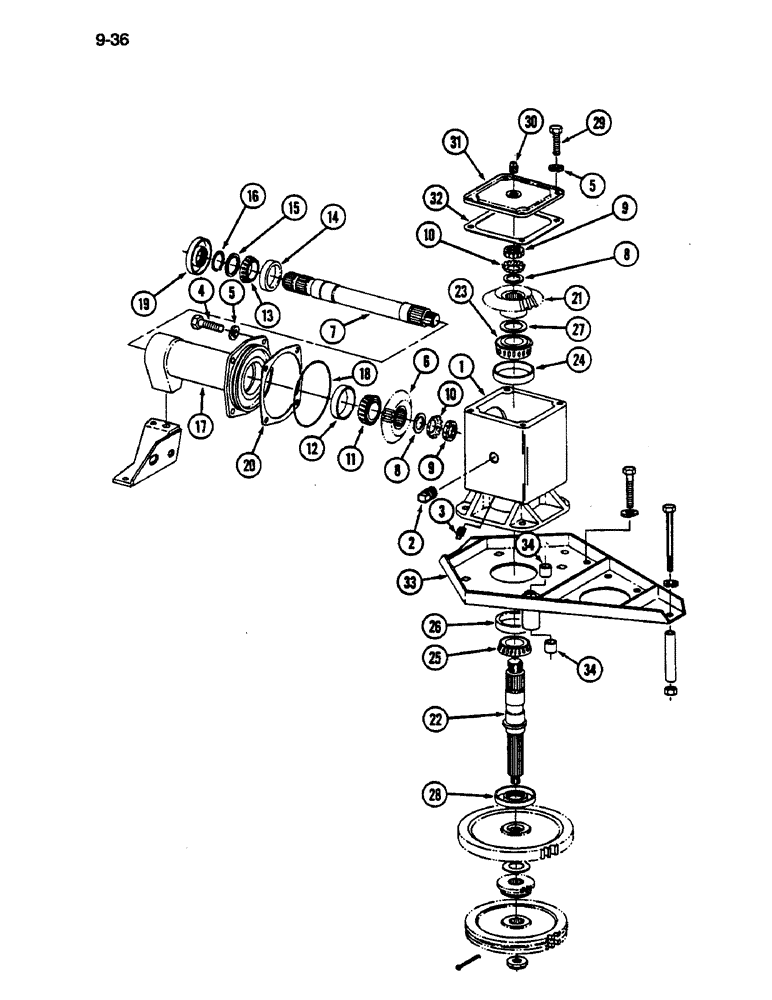

Запчасти Case IH 1822 (9-036) - GEAR BOX, DRUM NUMBER 1 AND 2, 1822 COTTON PICKER) (13) - PICKING SYSTEM

1

1278297C1

HOUSING

- drum drive

2шт.

2

444577

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - square head pipe, 1/4-18 inch

2шт.

3

86819C1

PLUG

- magnetic, 1/4-18 inch NTPF

2шт.

4

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

16шт.

6

223844C1

PINION

GEAR - drum drive input

2шт.

7

1278322C1

SHAFT

- extended input

2шт.

8

223864C1

WASHER

- gear

4шт.

9

271253

NUT

- Type TN bearing lock

4шт.

10

127686

LOCK WASHER,Type W-06

WASHER - Type W bearing lock

4шт.

11

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, inner

2шт.

12

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

2шт.

13

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

CONE - bearing, outer

2шт.

14

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - bearing, outer

2шт.

15

223865C1

WASHER

- bearing

2шт.

16

21193R1

SNAP RING,#137. Ext

Ring, Snap, #137, Ext

2шт.

17

1278324C1

HOUSING

- extended input shaft

2шт.

18

22284R1

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

- 4-1/2 x 4-11/16

2шт.

19

223880C1

SEAL

- input shaft

2шт.

86815C1

SHIM KIT

KIT - drum gear box shim

2шт.

20

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

2шт.

20

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

2шт.

20

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

2шт.

20

NSS

NOT SOLD SEPARAT

SHIM - 0.011 inch

2шт.

20

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

21

223843C1

PINION

GEAR - drum drive vertical output

2шт.

22

223860C3

SHAFT

- drum drive vertical

2шт.

23

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

CONE - bearing, upper

2шт.

24

165964R1

BEARING CUP

CUP - bearing, upper

2шт.

25

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

CONE - bearing, lower

2шт.

26

536054R1

BEARING CUP,60mm OD x 11.94mm W

CUP - bearing, lower

2шт.

86814C1

SHIM KIT

KIT - bevel gear spacer shim

2шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch

2шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch

2шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch

2шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.011 inch

2шт.

27

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch

2шт.

28

223876C1

SEAL

- vertical shaft

2шт.

29

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

8шт.

30

250181R1

PLUG

- square head, 1/2-14 inch drilled

2шт.

31

223857C1

COVER

- drum drive housing

2шт.

32

86822C1

GASKET

- drum gear box

2шт.

33

87122C91

SUPPORT

ASSEMBLY - drum gear box, left

1шт.

33

87123C91

SUPPORT

ASSEMBLY - drum gear box, right

1шт.

34

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- pivot Continued on next page

2шт.
