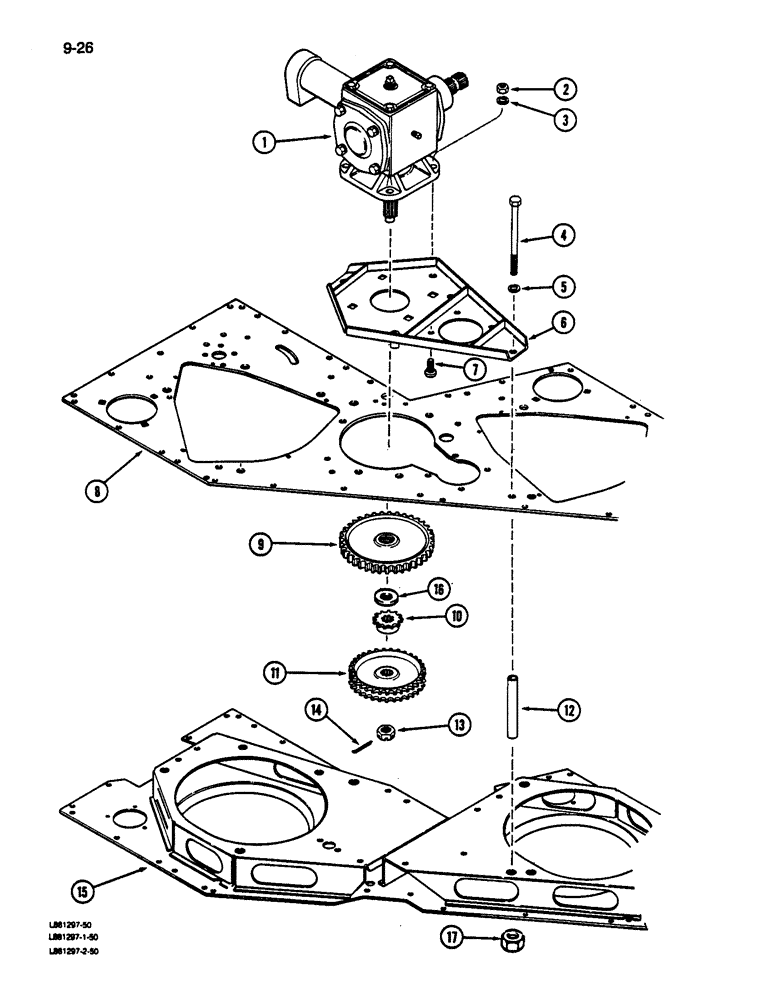

Запчасти Case IH 1822 (9-026) - GEAR AND SPROCKETS, DRUM DRIVE (13) - PICKING SYSTEM

1

REF

INSTRUCTION

GEAR BOX (See Page 9-37 or 9-41)

1шт.

2

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

4

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

- hex, 1/2 NC x 1-1/2 inch

5шт.

4

25689R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 8

- hex, 1/2 NC x 7-1/2 inch, Grade 8

1шт.

5

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

6

REF

INSTRUCTION

SUPPORT - gear box (See Page 9-37 or 9-43 or 9-47)

1шт.

7

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

4шт.

8

REF

INSTRUCTION

PLATE - drum top (See Page 9-101 and 107)

1шт.

9

1266259C2

GEAR

- drum drive, 80 teeth

1шт.

10

1266250C1

SPROCKET ASSY.

SPROCKET - picker drum drive, 12 teeth

1шт.

11

1266260C1

SPROCKET ASSY.

SPROCKET - spindle and doffer drive, 36 teeth

1шт.

12

1266278C1

TUBE,0.75" OD, 160.5" Length

- spacer

1шт.

13

359040R1,

NUT - hex, 7/8-14 slotted

1шт.

14

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

15

REF

INSTRUCTION

PLATE - drum center (See Page 9-101 and 107)

1шт.

16

11926R

SHIM

- drum drive sprocket

1шт.

17

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
