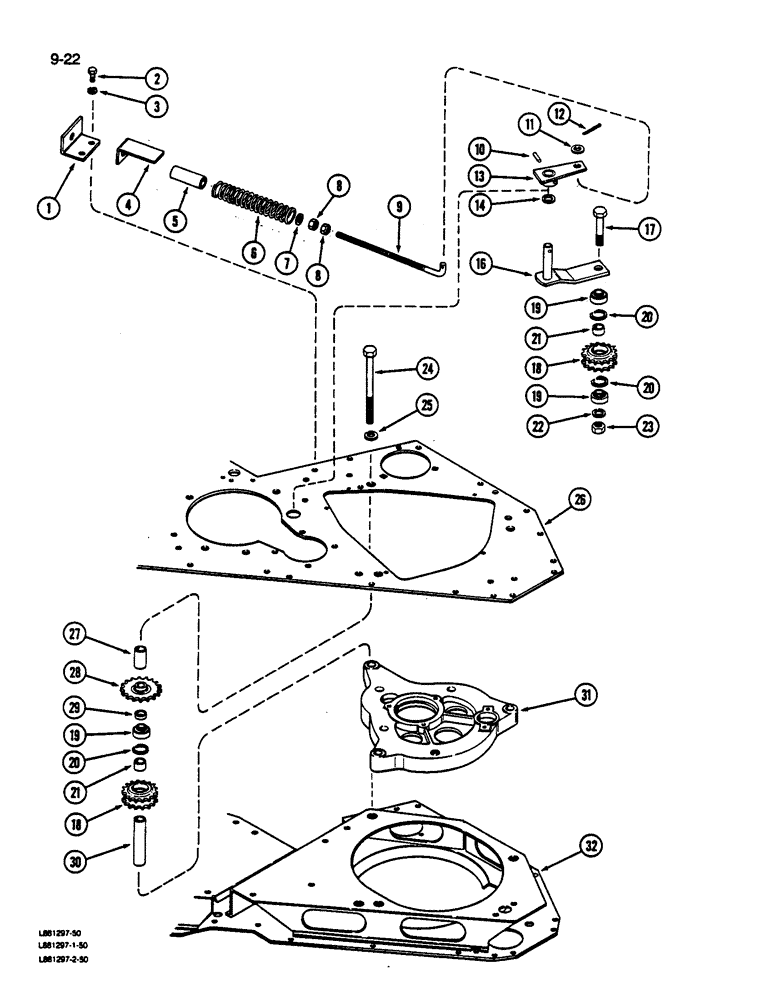

Запчасти Case IH 1822 (9-022) - IDLER ARMS AND SPROCKETS, ROTOR DRIVE CHAIN (13) - PICKING SYSTEM

1

87120C1

BRACKET

- idler spring

1шт.

2

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 x 1 inch

2шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

87786C1

GAUGE

- idler spring adjusting (Replaces 87368C1)(See Note A)

1шт.

5

87787C1

SPACER

(Replaces 87135C1)(See Note B)

1шт.

6

87128C1

SPRING

- chain tension

1шт.

7

22770R1

WASHER

- flat, 1/2 inch

1шт.

8

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

87134C2

STUD

- idler spring

1шт.

10

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

1шт.

11

25710R1

WASHER

- flat, 1/2 inch

1шт.

12

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

13

87102C1

LEVER

- idler

1шт.

14

21757R1

WASHER

- flat, 1/32 inch

1шт.

16

87108C1

ARM

- idler

1шт.

17

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

18

10219R

SPROCKET ASSY.

SPROCKET - idler, 15 teeth

2шт.

19

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

- sprocket

4шт.

20

10213R

OIL SEAL

RING - bearing retaining

4шт.

21

1266332C1

SPACER

- bearing

2шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC

1шт.

24

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

- hex, 5/8 NC x 7-1/2 inch

1шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

REF

INSTRUCTION

PLATE - drum top (See Page 9-101 and 107)

1шт.

27

672450R1

SPACER

1шт.

28

211623C91

SPROCKET

- idler 17 teeth

1шт.

29

671073R1

SPACER

1шт.

30

1266331C1

SPACER

1шт.

31

REF

INSTRUCTION

CAM (See Page 9-51)

2шт.

32

REF

INSTRUCTION

PLATE - drum center (See Page 9-101 and 107)

1шт.
