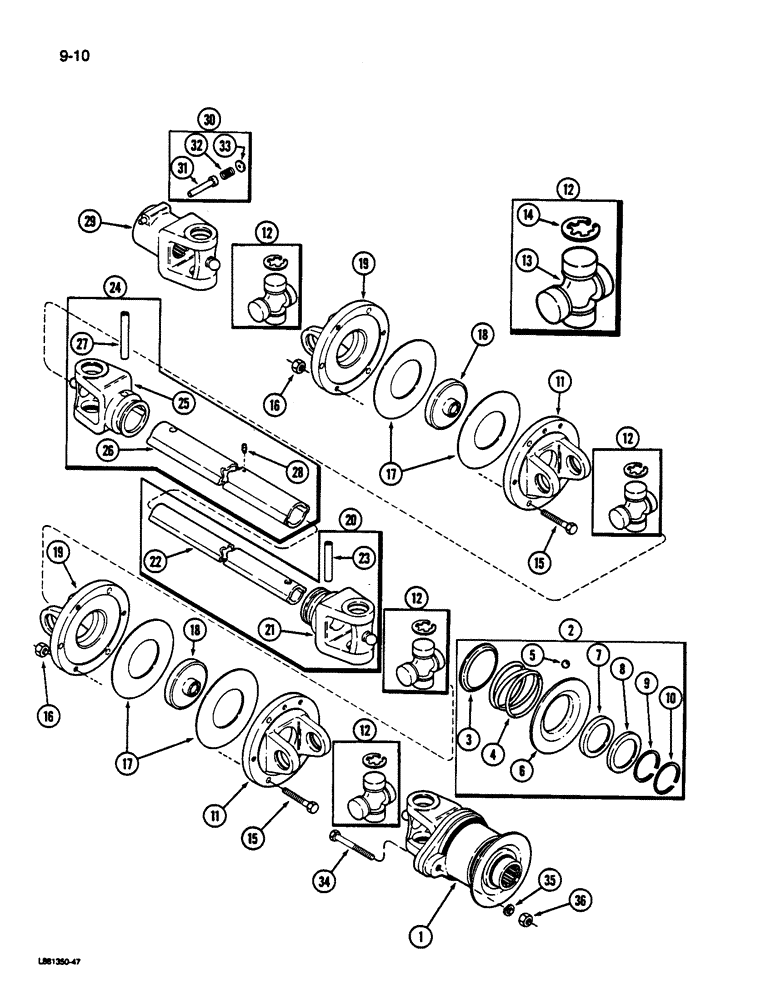

Запчасти Case IH 1822 (9-010) - AUXILIARY DRUM DRIVE SHAFT, 1822 COTTON PICKER (13) - PICKING SYSTEM

1983066C1

SHAFT ASSY.

SHAFT ASSEMBLY - drive, right (replaces 87301C91)

1шт.

1983065C1

SHAFT

ASSEMBLY - drive, left (replaces 87302C91)

1шт.

1

87548C1

CLUTCH

- shaft, right

1шт.

The grease zerk is NSS. Try to match.

1шт.

1

87549C1

CLUTCH

- shaft, left

1шт.

The grease zerk is NSS. Try to match.

1шт.

2

87547C1

KIT

- clutch

1шт.

3

NSS

NOT SOLD SEPARAT

RING - backup (Order 87547C1)

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - compression (Order 87547C1)

1шт.

5

NSS

NOT SOLD SEPARAT

BALL - (Order 87547C1)

3шт.

6

NSS

NOT SOLD SEPARAT

COLLAR - lock (Order 87547C1)

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup (Order 87547C1)

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup (Order 87547C1)

1шт.

9

NSS

NOT SOLD SEPARAT

RING - snap (Order 87547C1)

1шт.

10

NSS

NOT SOLD SEPARAT

RING - snap (Order 87547C1)

1шт.

11

87550C1

FORK

YOKE - shaft

2шт.

The grease fitting is P/N 933801R91.

1шт.

12

1281444C1

KIT

KIT - universal joint

4шт.

13

NSS

NOT SOLD SEPARAT

CROSS AND BEARING - (Order 1281444C1)

4шт.

14

NSS

NOT SOLD SEPARAT

LOCK - bearing (Order 1281444C1)

16шт.

15

931432R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

16шт.

16

30208R1

NUT,M6, Cl 10

- hex, M6

16шт.

17

87557C1

DISK HARROW

DISK - friction

4шт.

18

87558C1

LARGE PLATE

PLATE - centering

2шт.

19

87551C1

FORK

YOKE - shaft

2шт.

20

1329222C1

FORK

YOKE ASSEMBLY - inner

1шт.

21

1329222C1

FORK

YOKE - shaft (Order 1329922C1)

1шт.

22

1329222C1

FORK

TUBE - shaft (Order 1329922C1)

1шт.

23

30907R1

LOCK PIN,M10 x 70, Slotted

PIN - roll, 10 x 70 mm

1шт.

24

1329223C1

FORK

YOKE ASSEMBLY - outer

1шт.

25

1329223C1

FORK

YOKE - shaft (Order 1329923C1)

1шт.

26

1329223C1

FORK

TUBE - shaft (Order 1329923C1)

1шт.

27

30907R1

LOCK PIN,M10 x 70, Slotted

PIN - roll, 10 x 70 mm

1шт.

28

66584D

FITTING

- grease, drive type

1шт.

29

87554C1

FORK

YOKE - shaft

1шт.

30

1281458C1

KIT

- pin

1шт.

31

NSS

NOT SOLD SEPARAT

PIN (Order 1281458C1)

1шт.

32

NSS

NOT SOLD SEPARAT

SPRING (Order 1281458C1)

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER (Order 1281458C1)

1шт.

34

18659R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

- hex, 1/4 NC x 2 inch

2шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.
