Запчасти Case IH 1822 (9-316) - DECALS AND FOREIGN LANGUAGE (12) - CHASSIS

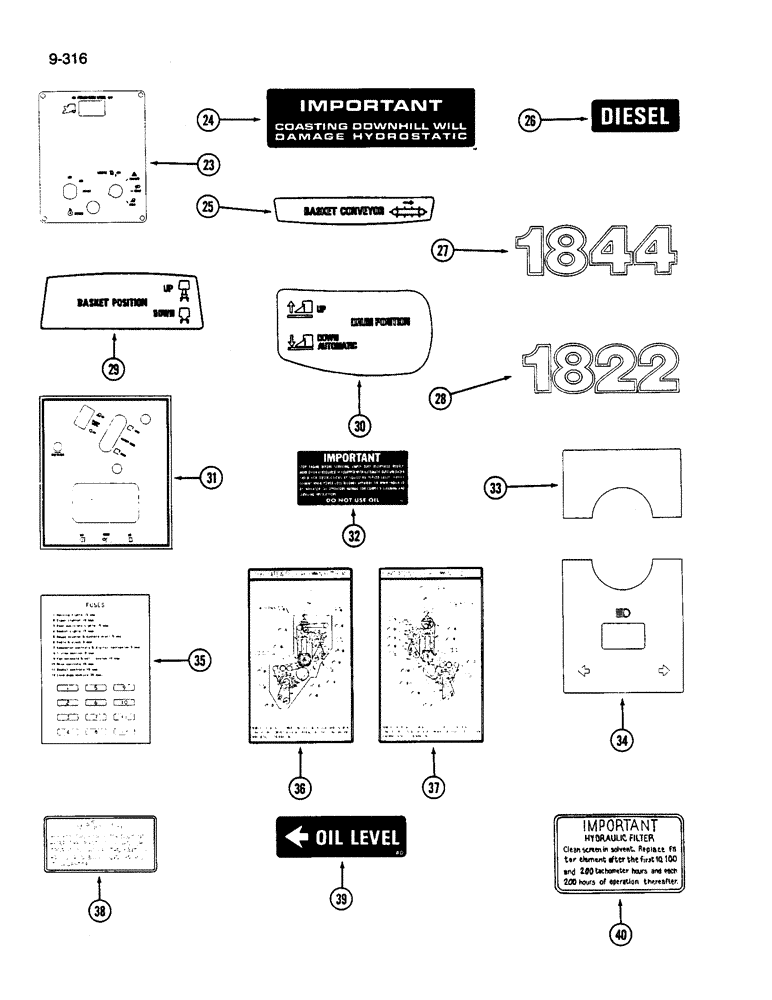

Схема запчастей Case IH 1822 - (9-316) - DECALS AND FOREIGN LANGUAGE (12) - CHASSIS
33
40
28
35
32
34
37
29
38
26
31
24
39
27
36
25
23
30

Артикул

Название

Примечание

Количество

80707C95

DECAL

KIT - decal, No Longer Available, Order Individual Decals

1шт.

23

1278765C2

DECAL

- rear control panel

1шт.

23

1339239C1

DECAL

- rear control panel (Spanish)

1шт.

24

173094C1

DECAL

- important - coasting

1шт.

24

1300279C1

DECAL

- important, coasting (Spanish)

1шт.

25

1285222C1

DECAL

- basket conveyor

1шт.

25

1339242C1

DECAL

- basket conveyor (Spanish)

1шт.

26

186081C1

ANGLE

DECAL - diesel

1шт.

27

87486C1

DECAL

- 1844

1шт.

28

87485C1

DECAL

- 1822

1шт.

29

1278797C1

DECAL

- basket position

1шт.

29

1339240C1

DECAL

- basket position (Spanish)

1шт.

30

1285223C1

DECAL

- drum position

1шт.

30

1339243C1

DECAL

- drum position (Spanish)

1шт.

31

1285221C1

DECAL

- basket door light and drum panel

1шт.

31

1339241C1

DECAL

- basket door light (Spanish)

1шт.

32

2752897C1

DECAL - important - dry air cleaner

1шт.

32

2752903R1

DECAL

- important, dry air cleaner (French)

1шт.

32

79973C1

DECAL

- important, dry air cleaner (German)

1шт.

32

2752905R1

DECAL

- important, dry air cleaner (Spanish)

1шт.

33

87145C1

DECAL

- upper front steering column

1шт.

34

1327549C1

DECAL

- upper rear steering column

1шт.

35

1288770C1

DECAL

- fuse location

1шт.

35

1339244C1

DECAL

- fuse location (Spanish)

1шт.

36

1288836C3

DECAL

- lube chart - left drum

1шт.

36

1339246C1

DECAL

- lube chart, left drum (Spanish)

1шт.

37

1288837C3

DECAL

- lube chart - right drum

1шт.

37

1339247C1

DECAL

- lube chart, right drum (Spanish)

1шт.

38

2754451R1

DECAL - important - final filter

1шт.

39

2753193R2

DECAL

- oil level

1шт.

39

80084C1

DECAL - oil level (French)

1шт.

39

222827C1

PRODUCT GRAPHIC

DECAL - oil level (Spanish)

1шт.

40

2752918R2

DECAL

- important - hydraulic filter

1шт.

40

2752920R2

DECAL - important, hydraulic filter (French)

1шт.

40

2752922R2

PRODUCT GRAPHIC

DECAL - impotrant, hydraulic filter (Spanish)

1шт.

Выбрано товаров: 35
