(9-308) - STEPS AND LADDERS, 1822 COTTON PICKER

Запчасти Case IH 1822 (9-308) - STEPS AND LADDERS, 1822 COTTON PICKER (12) - CHASSIS

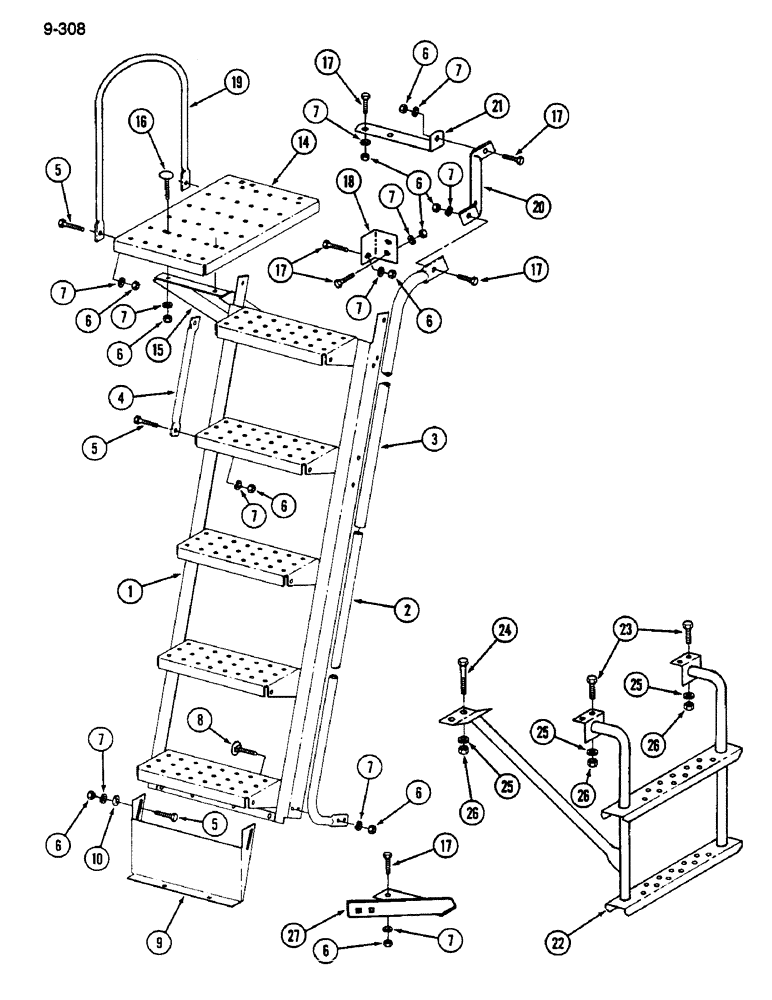

Схема запчастей Case IH 1822 - (9-308) - STEPS AND LADDERS, 1822 COTTON PICKER (12) - CHASSIS
17
21
1
6
26
7
14
10
16
18
5
25
22
6
17
7
25
7
7
25
24
9
8
7
6
6
7
17
6
20
7
23
6
7
6
26
17
27
6
7
4
15
3
17
6
26
2
7
19
5
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1278706C4

LADDER

06C4 LADDER - operators

1шт.

2

1278711C1

RAIL

11C1 RAIL - ladder, inner

1шт.

3

86840C1

RAIL ASSY.

C1 RAIL - ladder, outer

1шт.

4

1285388C1

SUPPORT

88C1 RAIL - hand

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

8шт.

6

120377

NUT,3/8" - 16, Gr 5

20шт.

7

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

20шт.

8

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

7R1 BOLT - round head square neck, 3/8 NC x 1 inch

2шт.

9

1266362C1

SUPPORT

62C1 SUPPORT - chute ladder

1шт.

10

120388

8 WASHER - flat, 7/16 x 1 x 1/16 inch

2шт.

14

1278720C2

PLATFORM

20C2 PLATFORM - operators

1шт.

15

1278724C1

SUPPORT

24C1 BRACE - platform

1шт.

16

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

6R1 BOLT - round head square neck, 3/8 NC x 1-1/4 inch

4шт.

17

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

7шт.

18

1278726C1

SUPPORT

26C1 BRACKET - platform

1шт.

19

87138C1

RAIL ASSY.

C1 RAIL - hand

1шт.

20

87466C1

BRACKET

C1 BRACKET - ladder support

1шт.

21

87467C1

SUPPORT

C1 ANGLE - ladder support

1шт.

22

1285227C1

LADDER

27C1 LADDER - platform

1шт.

23

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

24

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

0 BOLT - hex, 1/2 NC x 3 inch

2шт.

25

120384

WASHER,1/2"

LOCK, (4) 1/2"

6шт.

26

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

27

1278762C1

BAR

62C1 BAR - ladder support

1шт.
