Запчасти Case IH 1822 (9-306) - PLATFORM EXTENSION (12) - CHASSIS

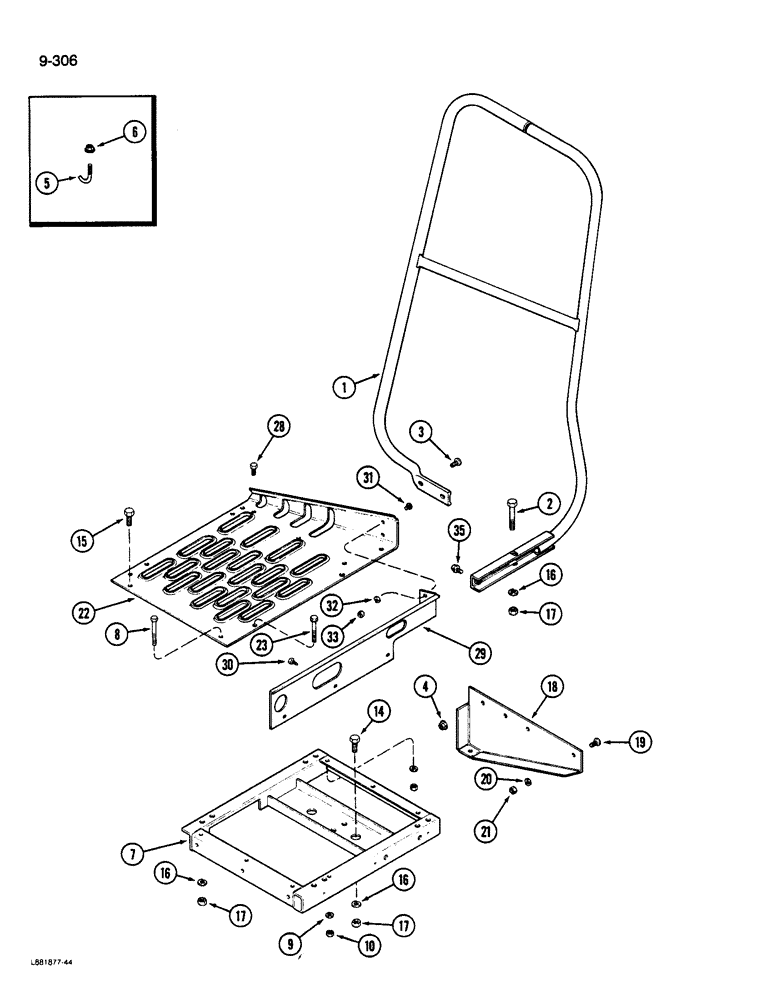

Схема запчастей Case IH 1822 - (9-306) - PLATFORM EXTENSION (12) - CHASSIS
19
7
6
31
33
2
5
22
17
9
28
8
16
23
32
16
16
29
17
14
20
15
10
21
18
1
35
4
17
3
30

Артикул

Название

Примечание

Количество

1

198548C2

RAIL

ASSEMBLY - platform extension front

1шт.

2

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

- hex, 1/2 NC x 2-3/4inch

1шт.

3

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

2шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NF

3шт.

5

196967C2

BOLT,3/8" - 16 x 2"

- front hand rail hook (If equipped)

1шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch (If equipped)

2шт.

7

1278508C3

SUPPORT

ASSEMBLY - operators platform

1шт.

8

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch

4шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

10

120377

NUT,3/8" - 16, Gr 5

8шт.

14

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

15

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

16

120384

WASHER,1/2"

LOCK, 1/2"

11шт.

17

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

11шт.

18

198541C2

SUPPORT

- platform extension

1шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

2шт.

20

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

120377

NUT,3/8" - 16, Gr 5

2шт.

22

198547C2

PLATE

TREAD - platform extension

1шт.

23

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

28

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

3шт.

29

198542C1

SUPPORT

- operators platform extension

1шт.

30

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tap, 1/4 x 1/2 inch

3шт.

31

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

2шт.

32

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

33

120376

NUT,5/16"-18, G5

2шт.

35

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flanged, 3/8 NC x 3/4 inch

1шт.

Выбрано товаров: 27
