Запчасти Case IH 1822 (9-300) - TIRE AND MUD SHIELDS (12) - CHASSIS

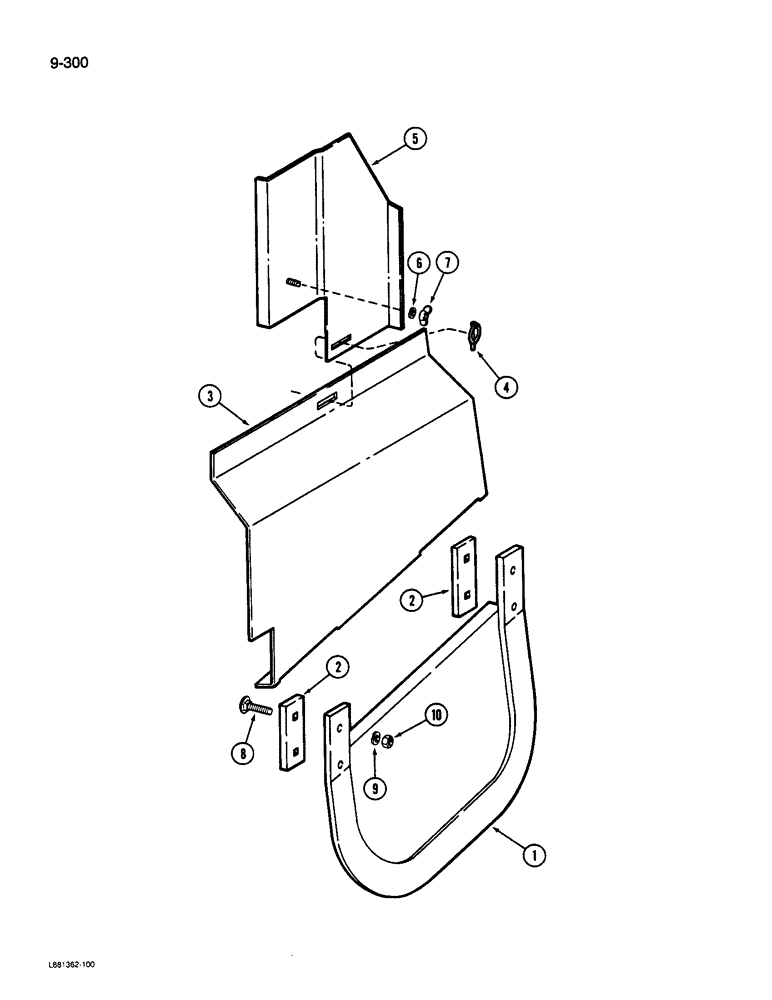

Схема запчастей Case IH 1822 - (9-300) - TIRE AND MUD SHIELDS (12) - CHASSIS
2
4
3
2
7
5
10
6
1
8
9

Артикул

Название

Примечание

Количество

1

1266379C3

GUARD

SHIELD ASSEMBLY - mud left

1шт.

1

1266380C3

GUARD

SHIELD ASSEMBLY - mud right

1шт.

2

215520C2

LARGE PLATE

BAR - mud blade

4шт.

3

1266384C3

SHIELD

- mud left

1шт.

3

1266385C3

SHIELD

- mud right

1шт.

4

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSEMBLY - klik

2шт.

5

87319C1

SHIELD

ASSEMBLY - mud upper, left

1шт.

5

87320C1

SHIELD

ASSEMBLY - mud upper, right

1шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

126177

WING NUT

NUT - wing, 1/4 inch NC

2шт.

8

27488R1

BOLT

- round head square neck, 1/2 NC x 3-3/4 inch

8шт.

9

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

10

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

Выбрано товаров: 13
