Запчасти Case IH 1822 (9-294) - RIGHT SIDE SCREEN (12) - CHASSIS

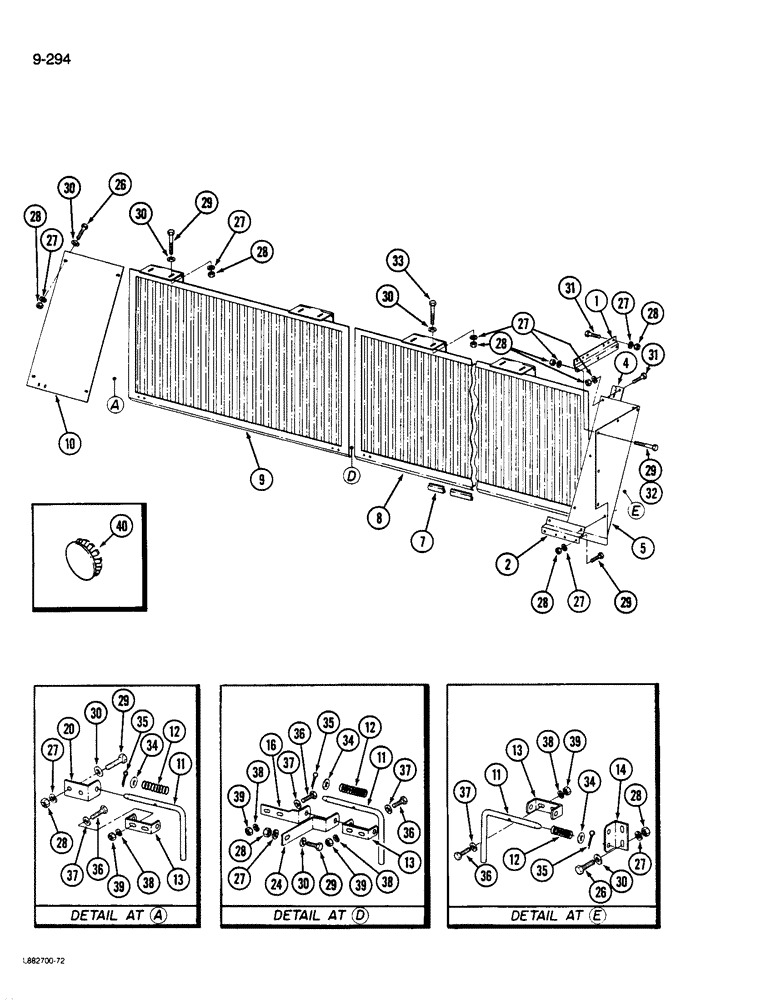

Схема запчастей Case IH 1822 - (9-294) - RIGHT SIDE SCREEN (12) - CHASSIS
27
29
33
28
12
1
30
39
37
39
30
8
31
29
24
35
32
12
13
35
5
36
9
13
27
13
14
7
34
34
34
29
28
38
39
38
28
37
28
20
30
26
27
28
26
29
39
11
30
10
2
27
37
36
30
12
28
38
31
36
11
38
11
4
27
35
16
30
27
27
37
40
27
28
28
29
36

Артикул

Название

Примечание

Количество

1

1278812C1

SUPPORT

- upper cover

1шт.

2

1278813C2

SUPPORT

- lower cover

1шт.

4

1278815C1

BAR

- screen frame, right

1шт.

5

1278928C1

COVER

- rear inner right

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - screen, 165 inch (4 191 mm)(Order 1263038C1, Serial Range: cut-length)

1шт.

8

1278957C2

CLEANER

ASSEMBLY - rear

1шт.

9

1278961C2

CLEANER

ASSEMBLY - front

1шт.

10

1285210C1

COVER

- front, side screen

1шт.

11

1285244C2

PIN

- screen lock

3шт.

12

540815R1

SPRING

- compression

3шт.

13

1285245C1

LARGE PLATE

PLATE - locking pin guide

3шт.

14

1285246C1

BRACKET

- locking pin

1шт.

16

1285248C1

BRACKET

- center locking pin right

1шт.

20

1285250C1

BRACKET

- right front locking pin

1шт.

24

1285339C1

SUPPORT

- center latch

1шт.

26

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

27

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

30шт.

28

120376

NUT,5/16"-18, G5

19шт.

29

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 3/4 inch

17шт.

30

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

14шт.

31

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

32

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

33

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

34

469668R1

WASHER

- flat, 13/32 x 47/64 x 3/64 inch

4шт.

35

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

3шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

37

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

8шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

39

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

Выбрано товаров: 29
