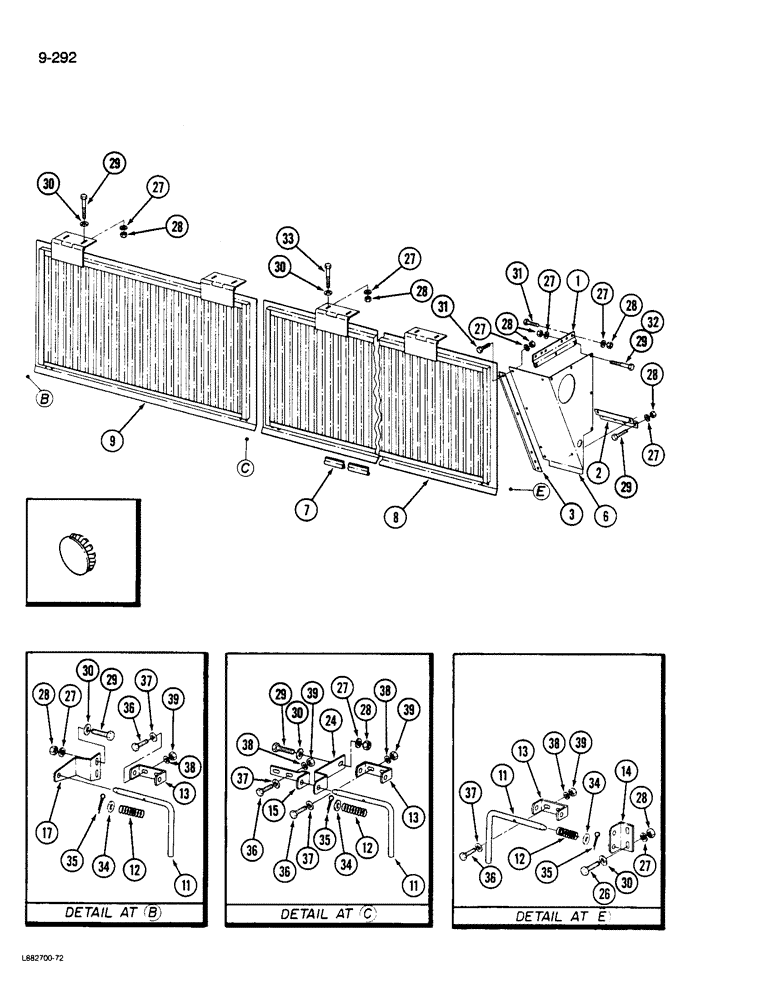

Запчасти Case IH 1822 (9-292) - LEFT SIDE SCREEN (12) - CHASSIS

1

1278812C1

SUPPORT

- upper cover

1шт.

2

1278813C2

SUPPORT

- lower cover

1шт.

3

1278814C1

BAR

- screen frame, left

1шт.

6

1278927C1

COVER

- rear inner left

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - screen, 165 inch (4 191 mm)(Order 1263038C1, Serial Range: cut-length)

1шт.

8

1278957C2

CLEANER

ASSEMBLY - rear

1шт.

9

1278961C2

CLEANER

ASSEMBLY - front

1шт.

11

1285244C2

PIN

- screen lock

3шт.

12

540815R1

SPRING

- compression

3шт.

13

1285245C1

LARGE PLATE

PLATE - locking pin guide

3шт.

14

1285246C1

BRACKET

- locking pin

1шт.

15

1285247C1

BRACKET

- center locking pin left

1шт.

17

1285249C1

BRACKET

- left front locking pin

1шт.

24

1285339C1

SUPPORT

- center latch

1шт.

27

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

29шт.

28

120376

NUT,5/16"-18, G5

19шт.

29

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 3/4 inch

17шт.

30

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

14шт.

31

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

32

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.

33

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

4шт.

34

469668R1

WASHER

- flat, 13/32 x 47/64 x 3/64 inch

3шт.

35

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

3шт.

36

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

37

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

8шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

39

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

40

187849

HOLE PLUG BUTTON,1 1/8"

PLUG - button, 1-1/8 inch diameter

1шт.
