(9-290) - ENGINE AND RADIATOR SHIELDS

Запчасти Case IH 1822 (9-290) - ENGINE AND RADIATOR SHIELDS (12) - CHASSIS

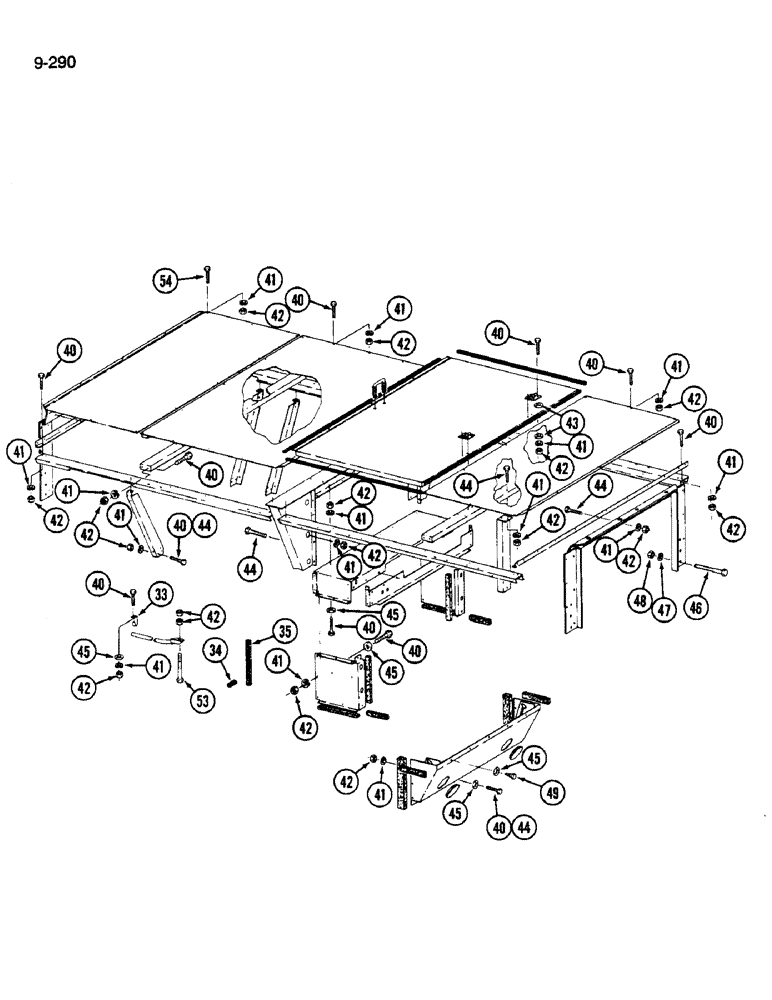

Схема запчастей Case IH 1822 - (9-290) - ENGINE AND RADIATOR SHIELDS (12) - CHASSIS
40
40
41
40
47
41
40
45
42
42
42
42
42
45
49
41
42
48
34
40
41
53
40
42
44
44
54
40
40
42
44
41
35
41
41
41
42
44
44
41
42
43
46
42
41
40
45
40
42
41
41
45
45
42
42
40
42
33
41
41
41
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

33

86952C1

CLIP,ELECTRICAL

CLIP - screen support

4шт.

34

NSS

NOT SOLD SEPARAT

STRIP - rubber, 4 inch (102 mm)(Cut from bulk roll 87281C1)

1шт.

35

NSS

NOT SOLD SEPARAT

STRIP - rubber, 12 inch (295 mm)(Cut from bulk roll 87281C1)

1шт.

40

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

123шт.

41

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

143шт.

42

120376

NUT,5/16"-18, G5

166шт.

43

120394

WASHER,3/8", SAE

WASHER - flat, 11/32 x 13/32 x 13/16 3/64 inch

8шт.

44

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

45

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

70шт.

46

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch

12шт.

47

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

48

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

12шт.

49

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

5шт.

53

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

4шт.

54

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

2шт.

172482

SCREW,Hex, 3/8" - 16 x 3/4"

BOLT - hex tapping, 3/8 NC x 3/4 inch

5шт.
