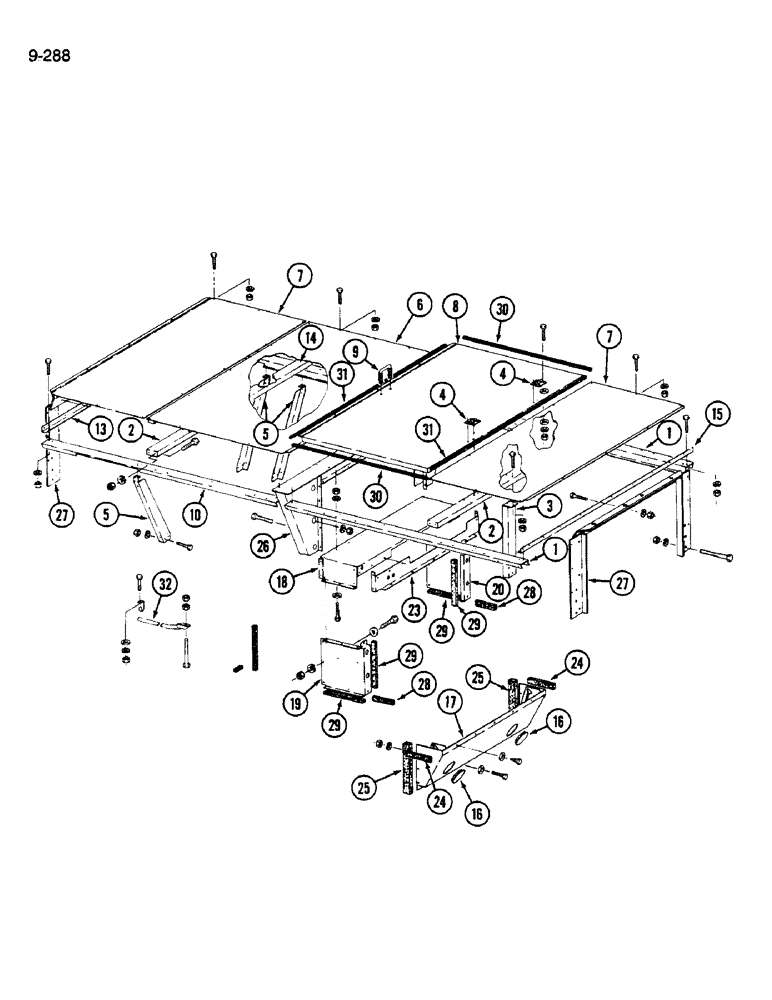

Запчасти Case IH 1822 (9-288) - ENGINE AND RADIATOR SHIELDS (12) - CHASSIS

1

1260025C1

SUPPORT

- shield outer

2шт.

2

1260123C1

CHANNEL

- hinge support

2шт.

3

1260011C1

SUPPORT

ASSEMBLY - rear

1шт.

4

215720C1

HINGE

- shield

2шт.

5

1262614C4

BRACKET

- screen support left

3шт.

6

1270399C2

SHIELD

ASSEMBLY - center front deck

1шт.

7

1278003C2

GUARD

SHIELD ASSEMBLY - front deck

2шт.

8

1278000C1

GUARD

SHIELD ASSEMBLY - center rear deck

1шт.

9

1278124C1

HANDLE

- retractable

1шт.

10

1278009C3

SUPPORT

- shield outer front, left

1шт.

14

1278010C3

SUPPORT

- shield outer front, right

1шт.

15

1269999C1

SUPPORT

- hood sheet

2шт.

16

1288895C1

PLUG

- cleanout

2шт.

Ref# 16 clean-out plug. If looking for plug that will fit an appox hole size of 3.0" try P/N# 1302758C1. CAM 8-3-98 (db)

1шт.

17

1262776C3

GUARD

SHIELD ASSEMBLY - lower

1шт.

18

1262762C3

GUARD

SHIELD - upper

1шт.

19

1262757C2

SHIELD

- center lett

1шт.

20

1262758C2

GUARD

SHIELD - center right

1шт.

23

1262761C3

GUARD

SHIELD - lower duct

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - foam, 7-1/2 inch (192 mm)(Cut from bulk roll 87084C1)

2шт.

25

NSS

NOT SOLD SEPARAT

SEAL - foam, 10-5/16 inch (262 mm)(Cut from bulk roll 1264566C1)

2шт.

26

1270178C1

SUPPORT

ASSEMBLY - center basket

1шт.

27

1278713C1

SUPPORT

ASSEMBLY - basket

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - foam, 6-5/16 inch (160 mm)(Cut from bulk roll 87084C1)

2шт.

29

NSS

NOT SOLD SEPARAT

SEAL - foam, 13-13/16 inch (351 mm)(Cut from bulk roll 87084C1)

2шт.

30

NSS

NOT SOLD SEPARAT

SEAL - foam, 37-1/2 inch (953 mm)(Cut from bulk roll 87084C1)

2шт.

31

NSS

NOT SOLD SEPARAT

SEAL - foam, 65 inch (1 651 mm)(Cut from bulk roll 195917C1)

2шт.

32

87076C1

SUPPORT

ASSEMBLY - tube

1шт.
