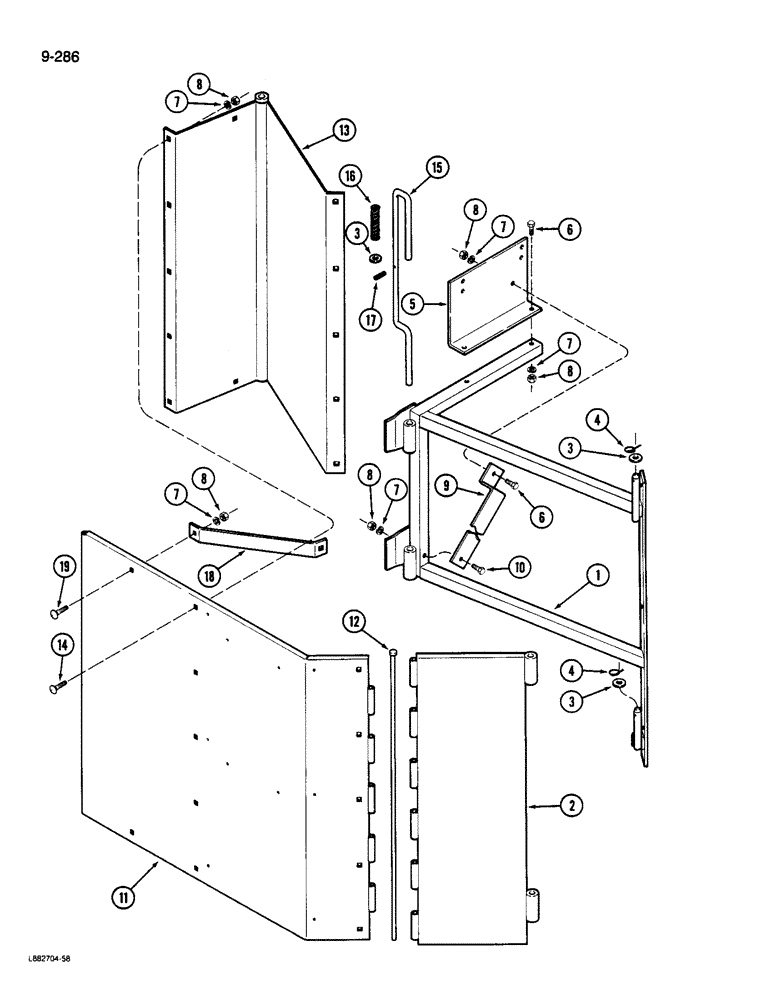

Запчасти Case IH 1822 (9-286) - WHEEL SHIELDS 1822 COTTON PICKER (12) - CHASSIS

1

1338687C1

SUPPORT

FRAME ASSEMBLY - wheel shield, left (Replaces 1278862C1)

1шт.

1

1278863C1

FRAME

ASSEMBLY - wheel shield, right (Replaces 1278863C1)

1шт.

2

1278873C1

SHEET

PANEL ASSEMBLY - wheel shield front, left

1шт.

2

1278874C1

SHEET

PANEL ASSEMBLY - wheel shield front, right

1шт.

3

NLS

NO LONGER SERVICED

- flat, 17/32 x 1-1/16 x 3/32 inch

6шт.

4

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSEMBLY - klik

2шт.

5

1278871C2

ANGLE BAR

ANGLE - channel support, left

1шт.

5

1278872C2

ANGLE BAR

ANGLE - channel support, right

1шт.

6

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

10шт.

7

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

40шт.

8

120377

NUT,3/8" - 16, Gr 5

40шт.

9

1278963C1

SUPPORT

BRACE - frame

2шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

11

1278881C4

PANEL

ASSEMBLY - rear wheel. left

1шт.

11

1278884C4

PANEL

- rear wheel, right

1шт.

12

1278880C1

PIN

- hinge

2шт.

13

1278886C3

SUPPORT ASSY.

SUPPORT ASSEMBLY - wheel shield, left

1шт.

13

1278887C3

SUPPORT

ASSEMBLY - wheel shield, right

1шт.

14

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head quare neck, 3/8 NC x 3/4 inch

24шт.

15

1278891C1

STEM

ROD - latch

2шт.

16

1278892C1

SPRING

- latch

2шт.

17

20697R1

PIN,1/8" x 1", Coiled

2шт.

18

87561C1

SUPPORT

- wheel shield panel

4шт.

19

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.
