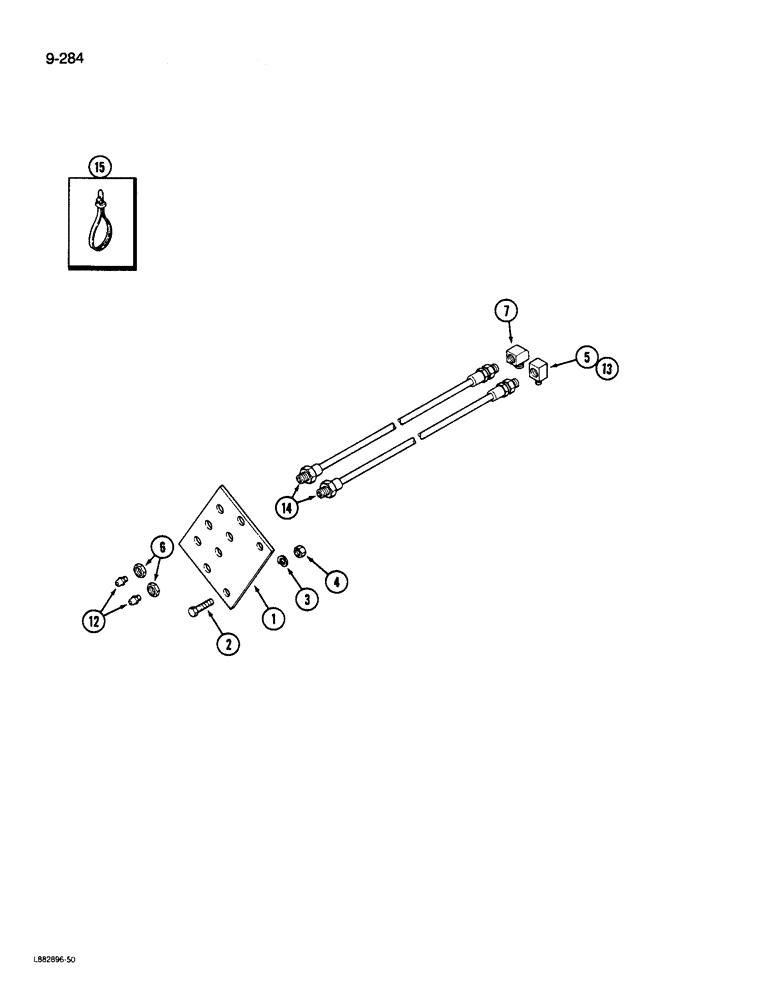

Запчасти Case IH 1822 (9-284) - CENTRALIZED CHASSIS GREASING ATTACHMENT, WITH NYLON HOSE (12) - CHASSIS

1

1339007C1

SUPPORT

- grease fitting

2шт.

2

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

5

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree (1822 Cotton Picker)

1шт.

5

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 90 degree (1844 Cotton Picker)

3шт.

6

F53473

LOCK NUT,1/8-27 NPSM

- special, 1/8 inch PT (1822 Cotton Picker)

4шт.

6

F53473

LOCK NUT,1/8-27 NPSM

- special, 1/8 inch PT (1844 Cotton Picker)

6шт.

7

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- 90 degree, 1/8 inch PT (1822 Cotton Picker)

4шт.

7

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- 90 degree, 1/8 inch PT (1844 Cotton Picker)

6шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (1822 Cotton Picker) 1/4"-28 NPT x .54" lg

9шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (1844 Cotton Picker) 1/4"-28 NPT x .54" lg

13шт.

13

21450R1

ADAPTER,1/4"-1/8 NPTF

FITTING - grease, 1/4 inch

2шт.

14

937781R92

HOSE,3.02mm ID x 686mm L

Grease 3.56 mm ID x 686.00 mm

1шт.

14

937782R92

HOSE,3.02mm ID x 787mm L

Grease 3.56 mm ID x 787.00 mm

1шт.

14

1339090C1

HOSE

- grease, 33 inch long

1шт.

14

1339091C1

HYDRAULIC HOSE,3.17mm ID x 2718mm L

- grease, 107 inch long

6шт.

14

1339092C1

HOSE

- grease, 145 inch long (1844 Cotton Picker)

4шт.

15

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining, 8 inch long

20шт.

15

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - retaining, 28-1/4 inch long

6шт.
