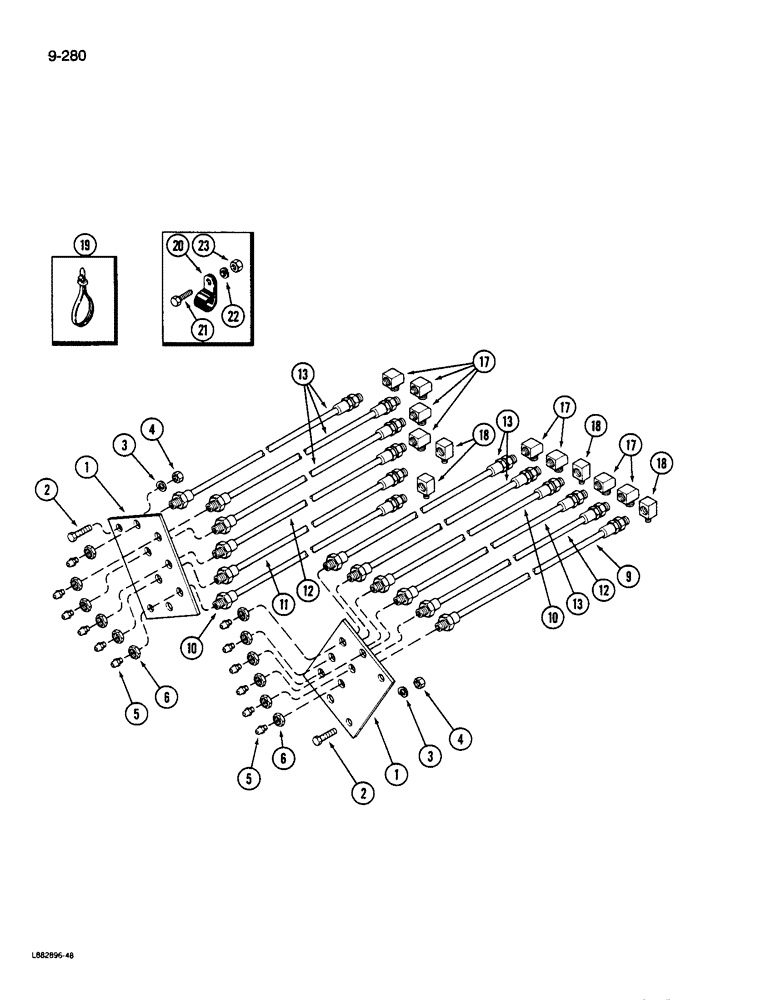

Запчасти Case IH 1822 (9-280) - GREASE SYSTEM PRIOR TO P.I.N. 701 (12) - CHASSIS

1

1339007C1

SUPPORT

HEADER - six stage greasing

2шт.

2

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

5

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

12шт.

6

F53473

LOCK NUT,1/8-27 NPSM

- hex special, 1/8-27 inch

12шт.

9

1339231C1

TUBE,737 mm Length

- grease, 29 inch long

1шт.

10

1339006C1

TUBE,914 mm L

- grease, 36 inch long

2шт.

11

1339005C1

TUBE,1321 mm L

- grease, 52 inch long

1шт.

12

1339003C1

TUBE,2032 mm L

- grease, 80 inch long

2шт.

13

1339002C1

TUBE,2388 mm L

- grease, 94 inch long

6шт.

17

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- 90 degree, 1/4-27 inch

8шт.

18

21340R1

ADAPTER,90 Degree, 1/4"-1/8 NPTF

FITTING - grease, 1/4 inch

4шт.

19

289862C1

CABLE TIE,3/16" x 7"

STRAP - tube retaining

16шт.

20

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - tube retaining

5шт.

21

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch

2шт.

22

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

120377

NUT,3/8" - 16, Gr 5

2шт.
