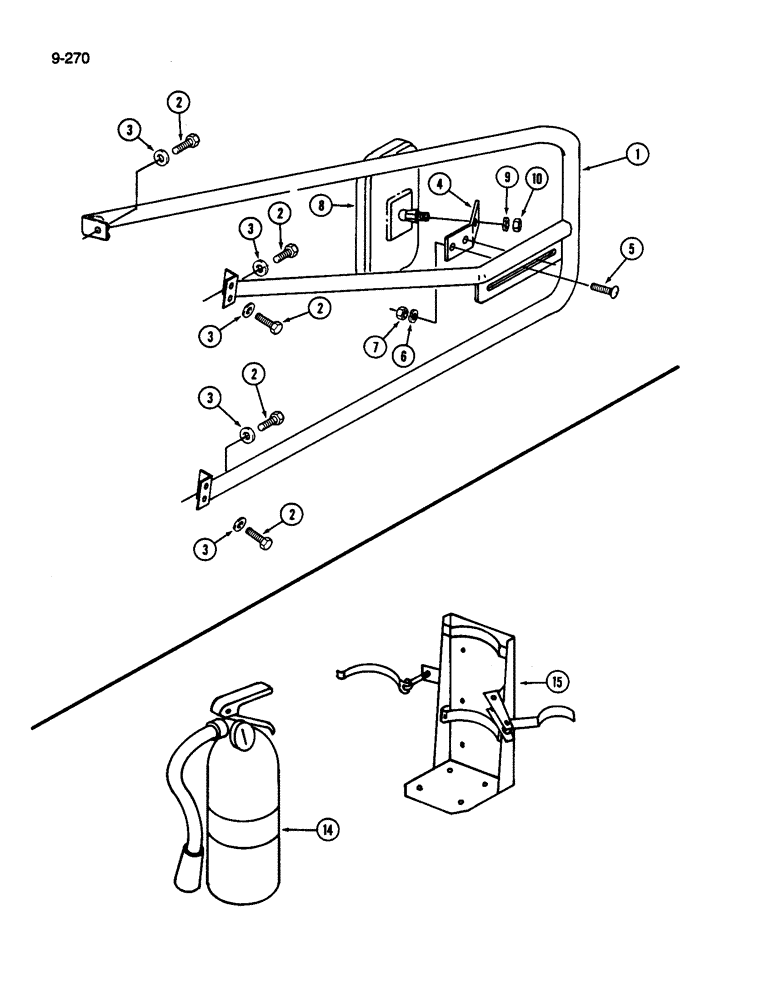

Запчасти Case IH 1822 (9-270) - MIRROR, FIRE EXTINGUISHER (10) - CAB & AIR CONDITIONING

1

1285432C1

SUPPORT

ASSEMBLY - mirror, left

1шт.

1

1285433C1

SUPPORT

ASSEMBLY - mirror, right

1шт.

2

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 x 1 inch, Grade 8

10шт.

3

27326R1

WASHER,.344" x 11/16" x .089", HDN

- hardened flat, 11/32 x 11/16 x 57/64 inch

10шт.

4

1285438C1

ANGLE BAR

ANGLE - mirror

2шт.

5

12663R1

BOLT,Short NK, 3/8"-16 x 1", G2, Full Thd

- round head square neck, 3/8 x 1 inch, Type 1

4шт.

6

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened flat, 13/32 x 13/16 x 57/64 inch

4шт.

7

25522R1

NUT,3/8"-16, G8

- hex, 3/8 inch, Grade 8

4шт.

8

1283403C1

MIRROR

ASSEMBLY - cab

2шт.

9

933965R1

LOCK WASHER,M10

2шт.

10

30168R1

NUT,M10, Cl 10

- hex 10 mm, Grade 10

2шт.

14

549975C91

FIRE EXTINGUISHER

EXTINGUISHER - fire (Parts accessory)

1шт.

15

549978C91

BRACKET

- extinguisher mounting (Parts accessory), fire

1шт.
