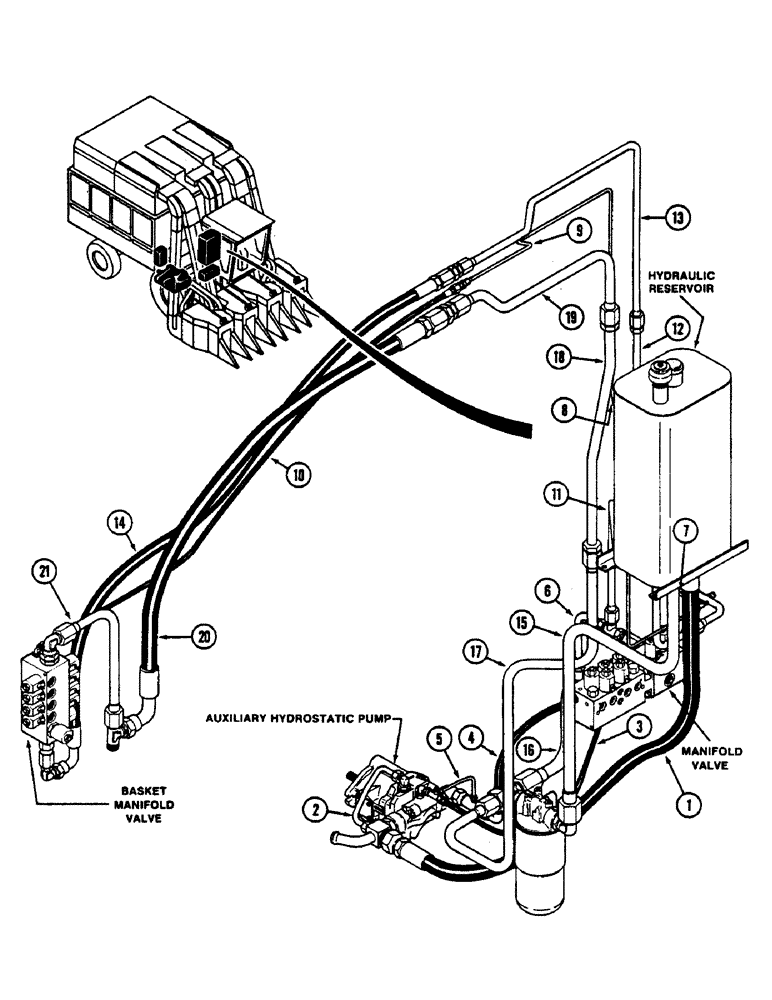

Запчасти Case IH 1822 (1-14) - PICTORIAL INDEX MANIFOLD VALVE HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Auxiliary Pump Supply Hose (1822 Cotton Picker), Pg 8-15

1шт.

Auxiliary Pump Supply Tube (1822 Cotton Picker), Pg 8-15

1шт.

1

Auxiliary Pump Supply Hose (1844 Cotton Picker), Pg 8-17

1шт.

2

Case Drain Tube, Pg 8-15, 8-17

1шт.

3

Manifold Valve Sense Hose, Pg 8-27

1шт.

4

Pump Pressure Hose, Pg 8-27

1шт.

5

Supercharge Tube, Pg 8-27

1шт.

6

Manifold Valve Supply Tube, Pg 8-27

1шт.

7

Basket Sense Lower Tube, Pg 8-63, 8-65

1шт.

8

Basket Sense Intermediate Tube (1822 Cotton Picker), Pg 8-63

1шт.

8

Basket Sense Intermediate Tube (1844 Cotton Picker), Pg 8-65

1шт.

9

Basket Sense Upper Tube, Pg 8-63, 8-65

1шт.

10

Basket Sense Hose, Pg 8-63, 8-65

1шт.

11

Basket Supply Lower Tube, 8-63, 8-65

1шт.

12

Basket Supply Intermediate Tube (1822 Cotton Picker), Pg 8-63

1шт.

12

Basket Supply Intermediate Tube (1844 Cotton Picker), Pg 8-65

1шт.

13

Basket Supply Upper Tube, Pg 8-63, 8-65

1шт.

14

Basket Supply Hose, Pg 8-63, 8-65

1шт.

15

Filter Inlet Tube (1822 Cotton Picker), Pg 8-7

1шт.

15

Filter Inlet Tube (1844 Cotton Picker Prior to P.I.N. 701), Pg 8-9

1шт.

Filter Outlet Tube (1844 Cotton Picker Prior to P.I.N. 701), Pg 8-9

1шт.

15

Filter Inlet Tube (1844 Cotton Picker P.I.N. 701 and after), Pg 8-9

1шт.

16

Valve Tank Tube, Pg 8-81, 8-83, 8-85

1шт.

17

Basket Tank Lower Tube (1822 Cotton Picker), Pg 8-81

1шт.

17

Basket Tank Lower Tube (1844 Cotton Picker), Pg 8-83, 8-85

1шт.

18

Basket Tank Intermediate Tube (1844 Cotton Picker), Pg 8-83, 8-85

1шт.

19

Basket Tank Upper Tube, Pg 8-81, 8-83, 8-85

1шт.

20

Basket Tank Hose, Pg 8-81, 8-83, 8-85

1шт.

21

Basket Tank Tube, Pg 8-73

1шт.
