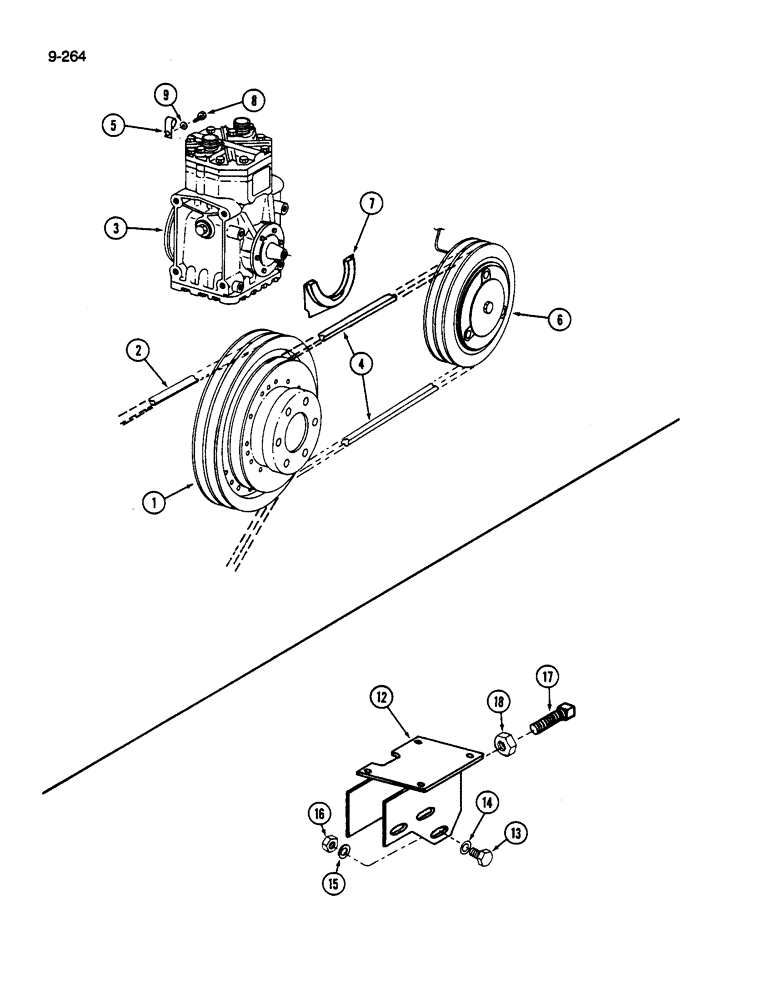

Запчасти Case IH 1822 (9-264) - AIR CONDITIONING COMPRESSOR PULLEYS, CLUTCH AND BELTS, COMPRESSOR MOUNTING (10) - CAB & AIR CONDITIONING

1

691562C1

PULLEY

PULLEY - fan and water pump (Three belt grooves)

1шт.

2

537072R91

SET OF BELTS

(Matched), Drive, Fan

1шт.

3

1255750C91

COMPRESSOR

COMPRESSOR - air conditioning (See Figure 9-268)

1шт.

3

1924008C2

REMAN-A/C COMPRESSOR

Remanufactured Air Compressor Assy

1шт.

3

1924009C1

CORE-A/C COMPRESSOR

Return Number, Air Compressor Assy

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

BOLT - hex, 3/8 x 1-1/2 inch

4шт.

4

164550R2

V-BELT,42.50" L

Drive, Compressor, Replaces 1250587C1

1шт.

5

362667R1

CLIP

CLIP - wire harness

1шт.

6

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor, Includes: Ref. 7 (See Figure 9-266)

1шт.

7

245983C1

AIR CONDITIONER

WICK - compressor

1шт.

8

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - hex, 3/8 NC x 1/2 inch

1шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

143140C1

BRACKET

SUPPORT - mounting, compressor

1шт.

13

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

BOLT - hex, 3/8 NC x 3-1/4 inch

3шт.

14

25709R1

WASHER

WASHER - flat, 13/32 x 13/16 x 5/64 inch

5шт.

15

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

16

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

17

26257R1

SET SCREW

SCREW - square head set,3/8 x 3 inch

1шт.

18

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.
