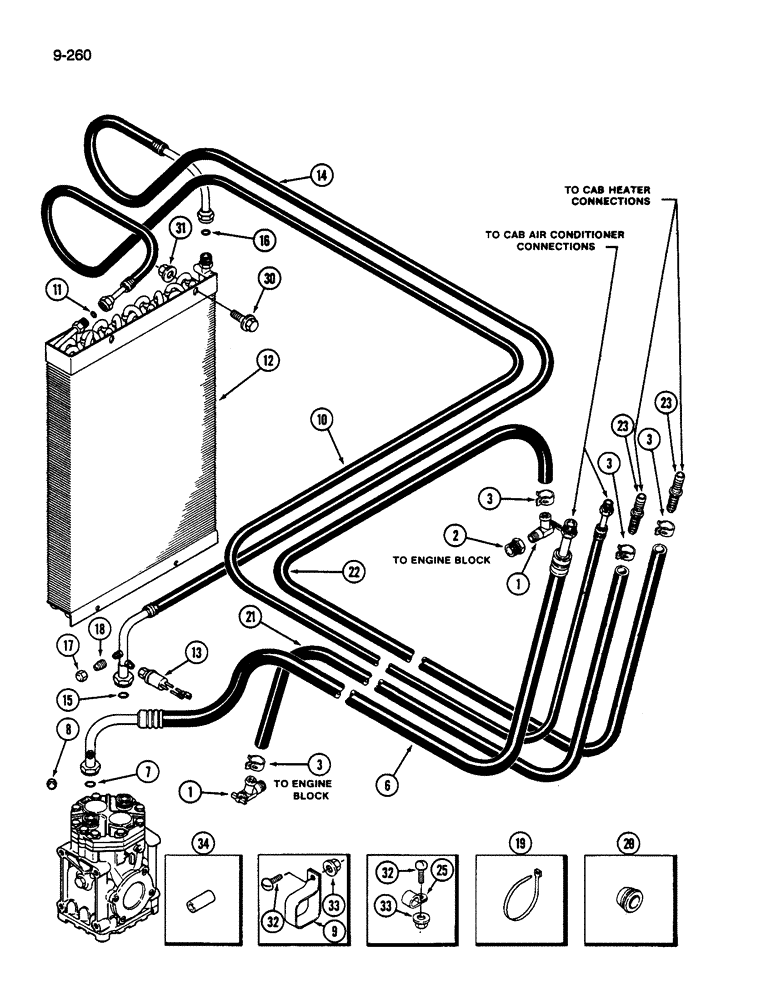

Запчасти Case IH 1822 (9-260) - HEATER AND AIR CONDITIONING, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - heater

2шт.

2

175778H1

ADAPTER

- 1/2 to 3/8 inch

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Spring wire Type E (Replaces 313318R1) #24

4шт.

5

REF

INSTRUCTION

COMPRESSOR ASSEMBLY - air conditioning (See Page 9-269)

1шт.

6

1321293C1

HOSE ASSY.

HOSE ASSEMBLY - compressor to cab, 201 inches (Replaces 1276165C1)

1шт.

7

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch

1шт.

8

118188C1

CAP

- seal

1шт.

9

1301387C2

CLIP

CLAMP - hose, heater and air conditioning

5шт.

9

154695C2

CLAMP

- hose, heater only

5шт.

10

1321292C3

HOSE

ASSEMBLY - condenser to cab, 240 inches (Replaces 1276162C2)

1шт.

11

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

12

183901C2

CONDENSER

COIL - air conditioner condenser

1шт.

13

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

14

1276161C2

HOSE

ASSEMBLY - compressor to condenser (Replaces 1283290C1)

1шт.

15

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch

1шт.

16

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/8 x 9/16 inch

1шт.

17

118188C1

CAP

- seal

2шт.

18

1250593C1

FITTING

- male, 1/4 inch

2шт.

19

291207C1

CLAMP

STRAP - tie, 4 inch maximum bundle

1шт.

19

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, , 3 inch maximum .098" x 8"

1шт.

20

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose, 3/4 inch ID

2шт.

20

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

- heater hose, 7/8 inch ID

2шт.

20

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

- hose, 1 inch ID

2шт.

20

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- hose, 5/8 inch ID

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - heater with red stripe, 100 inch (2540 mm) (Order 1255859C1, Serial Range: cut-length)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater, 144 inch (3658 mm)(50 ft roll 117724C1)

1шт.

23

1301342C1

FITTING

CONNECTOR - heater hose inlet fitting

2шт.

25

129083R1

CLAMP

CLIP - hose, 5/8 inch (Heater only)

1шт.

25

299565C1

CLAMP

CLIP - hose, 11/16 inch (17 mm)(Heater only)

1шт.

30

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - hex flanged lock, 1/4 NC x 1/2 inch

4шт.

31

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged lock, 1/4 inch NC

4шт.

32

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

1шт.

33

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flanged lock, 3/8 inch NC

1шт.

34

150596C1

SPACER,1/2" Tube x 1 3/16"

- 21/64 x 1/2 x 1-13/64 inch

2шт.
