Запчасти Case IH 1822 (9-254) - CAB ROOF (10) - CAB & AIR CONDITIONING

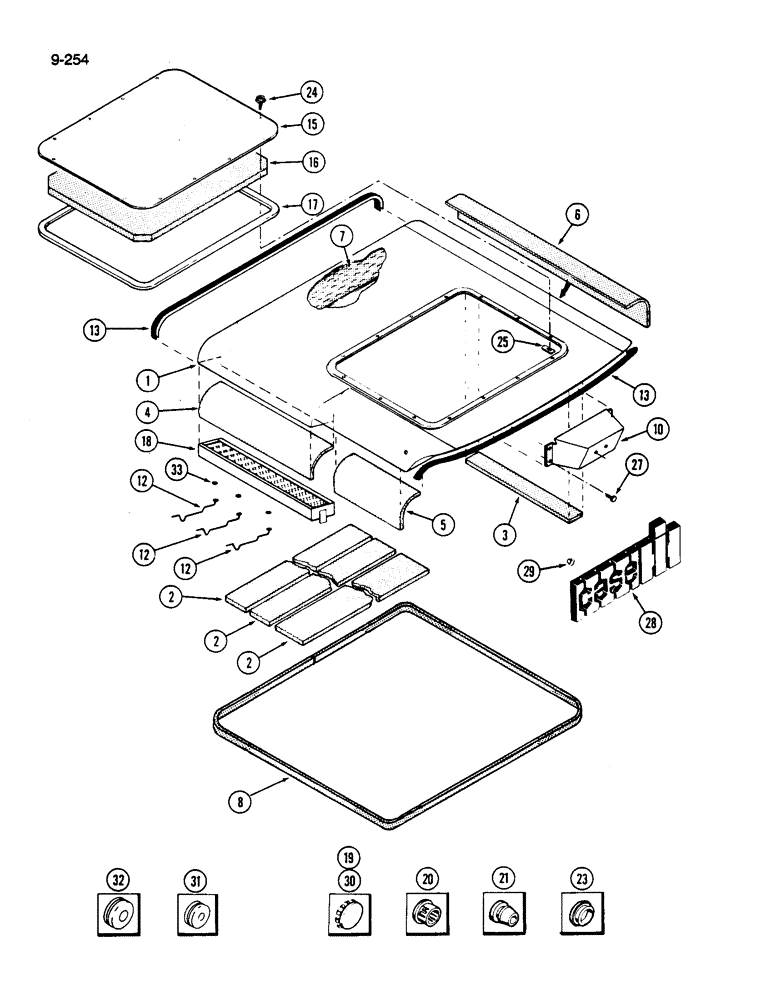

Схема запчастей Case IH 1822 - (9-254) - CAB ROOF (10) - CAB & AIR CONDITIONING
12
25
2
33
8
12
2
16
4
27
2
10
12
1
6
32
5
24
15
7
28
17
21
13
18
29
3
20
13
19
23
30
31

Артикул

Название

Примечание

Количество

1

1276124C4

TOP

ROOF ASSEMBLY - cab

1шт.

2

NSS

NOT SOLD SEPARAT

SHEET - insulation top, 12 inch (305 mm) (Order 1327515C1, cut to length)

3шт.

3

NSS

NOT SOLD SEPARAT

SHEET - insulation, left top, 12 inch (305 mm) (Order 1327515C1, Serial Range: cut-length)

1шт.

4

NSS

NOT SOLD SEPARAT

SHEET - insulation, right rear, 12 inch (305 mm) (Order 1327515C1, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

SHEET - insulation, right front, 12 inch (305 mm) (Order 1327515C1, Serial Range: cut-length)

1шт.

6

NSS

NOT SOLD SEPARAT

SHEET - insulation, left side, 12 inch (305 mm) (Order 1327515C1, Serial Range: cut-length)

1шт.

7

NSS

NOT SOLD SEPARAT

SHEET - insulation, rear, 60 inch (1524 mm) (Order 1327515C1, cut, Serial Range: -length)

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - roof seal, 220 inch (5588 mm) (Order 182747C1, Serial Range: cut-length)

1шт.

10

1281510C2

COVER

- windshield wiper motor

1шт.

12

117727C2

ROD

- filter latch

3шт.

13

NSS

NOT SOLD SEPARAT

SEAL - roof trim front and rear, 72 inch (1 829 mm) (Order 1327666C1, Serial Range: cut-length)

2шт.

15

143006C3

PANEL

- roof, access cover

1шт.

16

1276340C1

INSULATOR

COVER - insulation, access

1шт.

17

83872C2

SEAL

- access cover

1шт.

18

143481C92

CAB FILTER

FILTER - cab (See Page 9-253)

1шт.

18

87543798

CAB FILTER

Charcoal cab filter

1шт.

19

179093

HOLE PLUG BUTTON,9/32"

8шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

- plastic, 5/8 inch diameter (Replaces 142940C1)

2шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

- plastic, 3/4 inch diameter (Replaces 117730C1)

1шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- rubber diagonal cut, 1 x 1-3/8 inch

1шт.

23

406391C1

PLUG,1"

- button, 1 inch diameter

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- 1/4 x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

- spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

- hex poly seal, 5/16 x 5/8 inch

4шт.

28

A181900

EMBLEM

- Case IH logo

1шт.

29

1324788C1

NUT

- self threading, 1/4 inch

2шт.

30

353-408

PLUG,Dome, .750" hole, Nylon

- plastic, 3/4 inch diameter hole (Replaces 472429C1)

2шт.

31

1321769C1

GROMMET

- rubber, 5/8 inch diameter hole

1шт.

32

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- rubber, 3/8 x 27/32 x 5/16 inch

1шт.

33

118084C1

SEALING WASHER

- rubber

3шт.

Выбрано товаров: 30
