Запчасти Case IH 1822 (9-252) - CAB HEADLINER (10) - CAB & AIR CONDITIONING

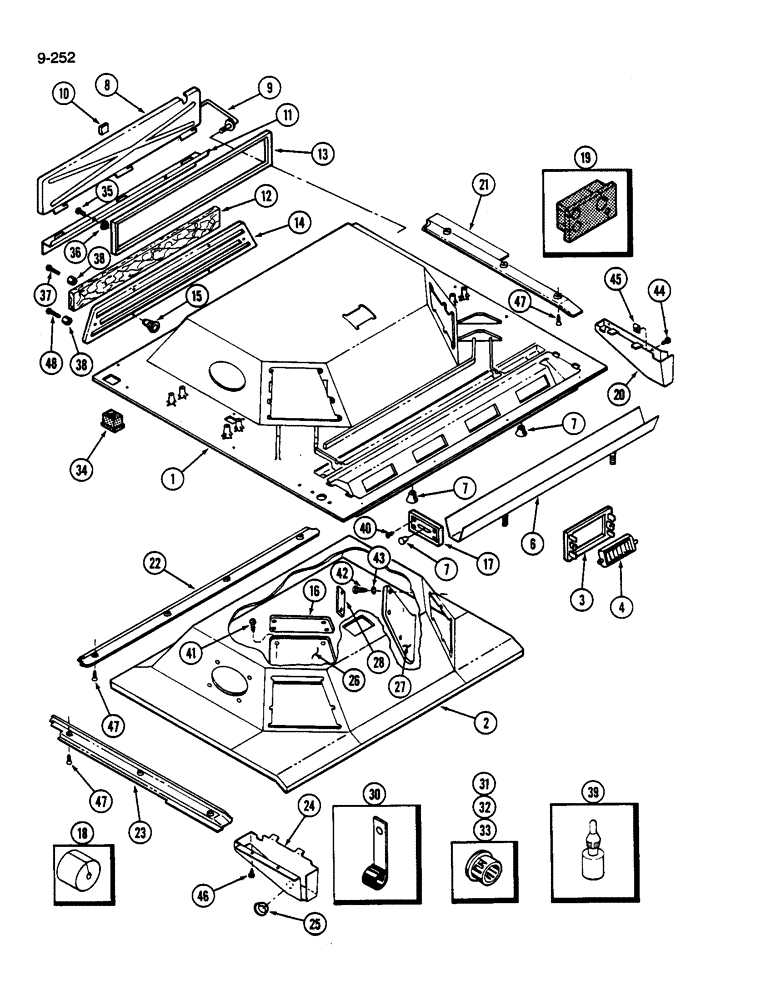

Схема запчастей Case IH 1822 - (9-252) - CAB HEADLINER (10) - CAB & AIR CONDITIONING
45
31
32
8
30
9
33
26
40
12
47
34
47
46
42
41
27
18
47
48
14
25
16
11
43
39
13
36
44
38
17
20
7
3
7
7
15
21
4
35
37
10
2
19
38
6
24
22
28
23
1

Артикул

Название

Примечание

Количество

1276232C93

PANEL ASSY.

PANEL ASSEMBLY - headliner

1шт.

1

NSS

NOT SOLD SEPARAT

PANEL - headliner

1шт.

2

NSS

NOT SOLD SEPARAT

INSULATOR - accoustical headliner

1шт.

3

1280402C1

PANEL

- louver frame

4шт.

4

109227C1

VENT

- louver

4шт.

6

1321268C2

COVER

- defroster vent

1шт.

7

1321356C1

KNOB

- control

3шт.

8

117621C2

DOOR

- recirculating air

1шт.

9

1276293C2

ROD

- control

1шт.

10

118345C1

BUMPER

- recirculating door, attach to roof assembly

1шт.

11

111666C2

SUPPORT

- door

1шт.

12

109240C1

CAB FILTER

FILTER - air recirculation

1шт.

12

143481C92

CAB FILTER

FILTER KIT - air intake (Includes installing instructions)

1шт.

12

87543798

CAB FILTER

Charcoal cab filter

1шт.

13

84157C1

SEAL

STRIP - recirculation door seal, 39-13/32 inch

2шт.

14

109282C1

GRILLE

- recirculating, air filter

1шт.

15

111296C1

BUTTON

KNOB - filter grille

6шт.

16

1280327C1

PANEL

- insert, controls

1шт.

17

1321259C1

PANEL

- control trim

1шт.

18

1283457C3

SEAL

- monitor harness, right front and rear

1шт.

19

1283459C3

GROMMET

SEAL - left rear corner

1шт.

20

1276270C1

PANEL

- headliner trim, left front

1шт.

21

1280092C1

PANEL

- headliner trim, left rear

1шт.

22

1276235C2

PANEL

- headliner trim, rear

1шт.

23

1280093C2

PANEL

- headliner trim, right rear

1шт.

24

1276271C1

PANEL

- headliner trim, right front

1шт.

25

353-512

PLUG - plastic (Replaces 1321570C2)

1шт.

26

1324515C1

PANEL

- cab control (Heater only)

1шт.

26

1324516C1

PANEL

- cab control (Heater and air conditioning)

1шт.

27

1280182C2

PANEL

- radio and clock

1шт.

28

1321384C1

PANEL

- radio insert

1шт.

30

395467R2

CLIP

- heater hose attaching

2шт.

31

353-406

PLUG,Dome, .625" hole, Nylon

- plastic 16 mm diameter hole (Replaces 142940C1)

2шт.

32

353-411

PLUG,Dome, 1.000" hole, Nylon

(25.4 mm) (Heater only) (Replaces 1257708C1) Dome, 1.000" hole, Nylon

1шт.

33

353-404

PLUG,Dome, .500" hole, Nylon

13 mm (Heater only) (Replaces 117675C1) Dome, .500" hole, Nylon

1шт.

34

1327770C2

SEAL

- cab harness hose, right rear

1шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

2шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

37

27729R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/2"

SCREW - pan head cross recess tap, 1/4 NC x 1-1/2 inch

4шт.

38

1250628C2

SPACER

- grille spacer

6шт.

39

117995C1

PACKAGE

FASTENER KIT - plastic toggle (Includes 5 fasteners)

1шт.

40

1276052C1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 3/4"

SCREW - poly seal tapping, 8-18 x 1-3/4 inch

4шт.

41

28622R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1 3/4"

SCREW - No. 8-18 x 1-3/4 inch

12шт.

42

27048R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head cross recess tap, No. 10-16 x 3/8 inch

2шт.

43

22237R1

WASHER

- flat, 13/64 x 3/4 x 3/64 inch

2шт.

44

27045R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

SCREW - pan head cross recess tap, No. 8-18 x 3/4 inch

2шт.

45

445435

SPRING NUT,U, #10-24

- No. 8-18 U spring

2шт.

46

27044R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - pan head cross recess tap, No. 8-18 x 3/8 inch

2шт.

47

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

10шт.

48

27687R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 3/4"

SCREW - pan head cross recess tap, 1/4-14 x 1-3/4 inch

2шт.

Выбрано товаров: 50
