Запчасти Case IH 1822 (1-12) - PICTORIAL INDEX PROPULSION SYSTEM (00) - PICTORIAL INDEX

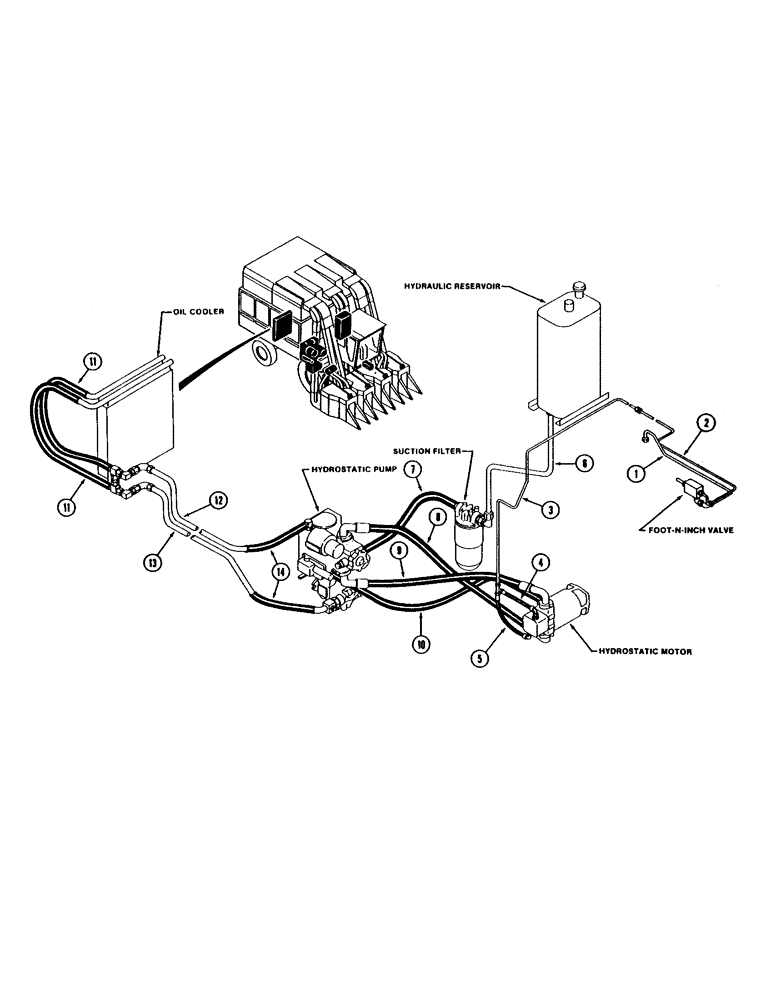

Схема запчастей Case IH 1822 - (1-12) - PICTORIAL INDEX PROPULSION SYSTEM (00) - PICTORIAL INDEX
1
7
14
5
11
3
9
2
10
8
11
12
4
6
13

Артикул

Название

Примечание

Количество

1

Foot-N-Inch Return Tube, Pg 6-11

1шт.

2

Foot-N-Inch Supply Front Tube, Pg 6-11

1шт.

3

Foot-N-Inch Supply Rear Tube, Pg 6-11

1шт.

4

Foot-N-Inch Upper Hose, Pg 6-11

1шт.

5

Foot-N-Inch Lower Hose, Pg 6-11

1шт.

6

Filter Supply Tube (1822 Cotton Picker), Pg 8-7

1шт.

6

Filter Supply Tube (1844 Cotton Picker), Pg 8-9

1шт.

7

Pump Suction Hose, Pg 8-7, 8-9

1шт.

8

Forward Pressure Hose, Pg 6-9

1шт.

9

Reverse Pressure Hose, Pg 6-9

1шт.

10

Case Drain Hose, Pg 6-9

1шт.

11

Oil Cooler Hose, Pg 6-3

1шт.

12

Oil Cooler Supply Tube, Pg 6-3

1шт.

13

Oil Cooler Return Tube, Pg 6-3

1шт.

14

Case Drain Hose, Pg 6-3

1шт.

Выбрано товаров: 15
