Запчасти Case IH 1822 (9-246) - CAB DOOR LOWER HANDLE, 1822 COTTON PICKER (10) - CAB & AIR CONDITIONING

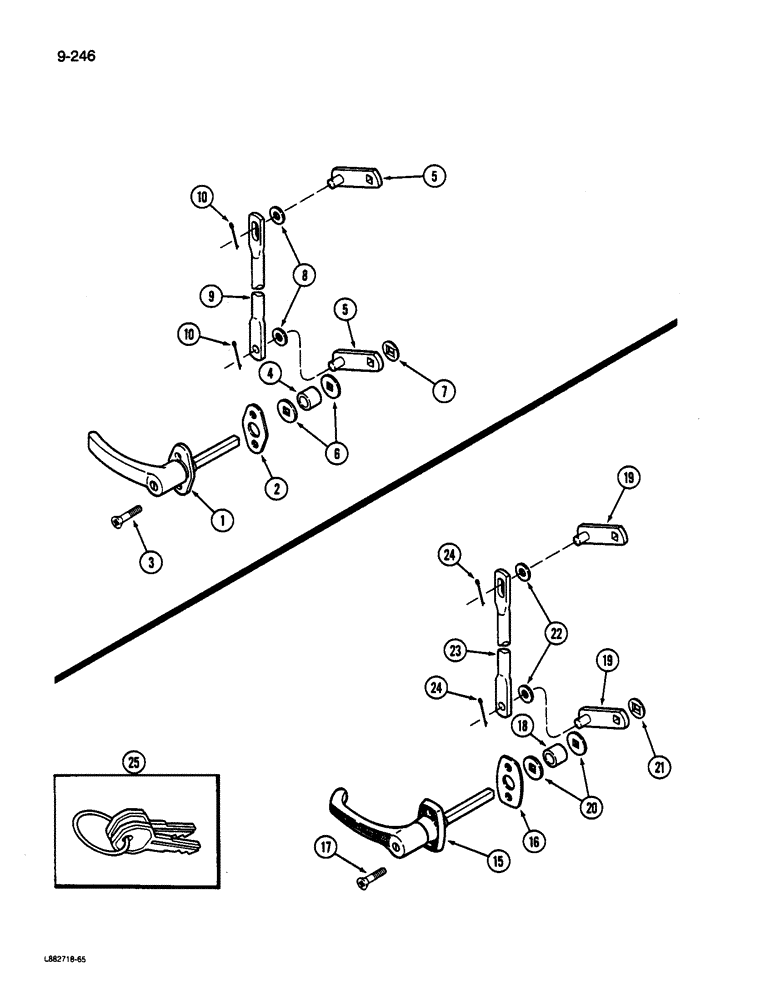

Схема запчастей Case IH 1822 - (9-246) - CAB DOOR LOWER HANDLE, 1822 COTTON PICKER (10) - CAB & AIR CONDITIONING
4
5
10
15
16
25
9
23
2
21
10
24
19
22
3
19
20
7
1
5
17
24
18
6
8

Артикул

Название

Примечание

Количество

1329479C1

LOCKING HANDLE

HANDLE ASSEMBLY - door lower (Hansen) (Alternate with Trimark manufactured handle)

1шт.

1

NSS

NOT SOLD SEPARAT

HANDLE - non-locking

1шт.

2

NSS

NOT SOLD SEPARAT

GASKET - door handle

1шт.

3

28595R1

SCREW

- oval head cross recess, No. 10-32 x 3/4 inch

2шт.

4

363082R1

SPACER,3/8" Pipe x .656"

- pipe, 3/8 x 21/32 inch

1шт.

5

1329445C1

ARM

- latch

2шт.

6

1329446C1

SQ HOLE WASHER

- brass, 3/8 3 inch

3шт.

7

1329447C1

SPRING WASHER

- spring

1шт.

8

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.

9

1329448C1

ROD

- linkage

1шт.

10

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

NSS

NOT SOLD SEPARAT

HANDLE ASSEMBLY - door lower (Trimark Manufactutcr)(Alternate with Hansen manufactured handle)(Order 1329479C1)

1шт.

15

NSS

NOT SOLD SEPARAT

HANDLE - non-locking

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - door handle

1шт.

17

28595R1

SCREW

- oval head cross recess, No. 10-32 x 3/4 inch

2шт.

18

363082R1

SPACER,3/8" Pipe x .656"

- pipe, 3/8 x 21/32 inch (10 x 17 mm)

1шт.

19

1329445C1

ARM

- latch

2шт.

20

1329446C1

SQ HOLE WASHER

- brass, 3/8 inch

3шт.

21

1329447C1

SPRING WASHER

- spring

2шт.

22

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 x 3/64 inch

2шт.

23

1329448C2

ROD

- linkage

1шт.

24

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

Выбрано товаров: 22
