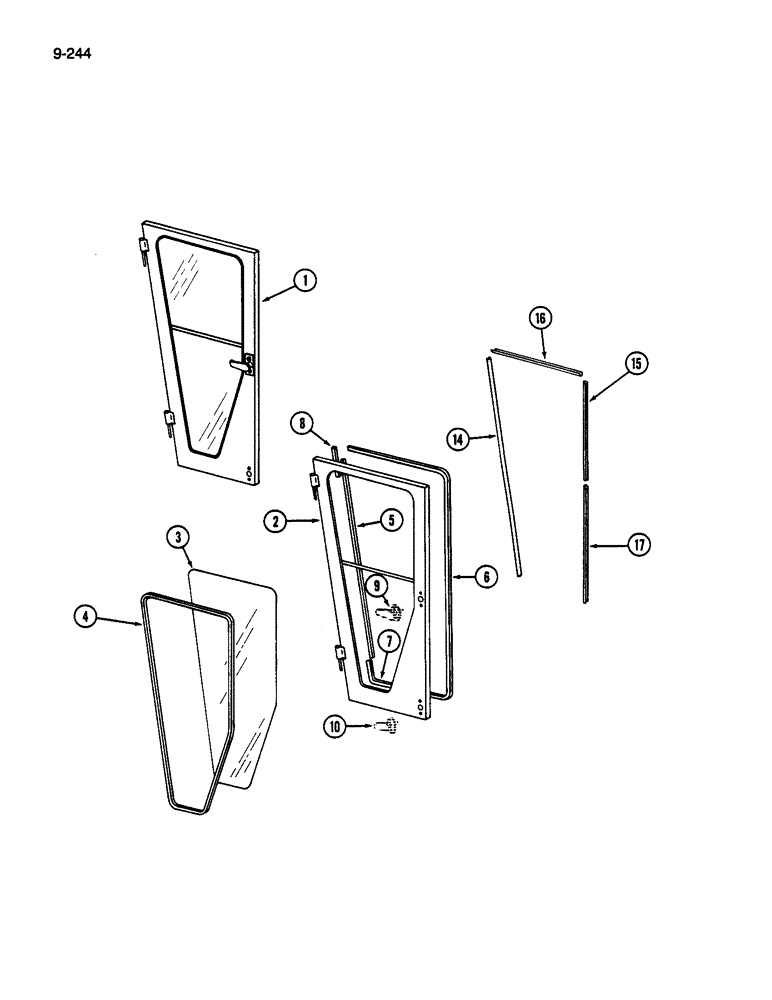

Запчасти Case IH 1822 (9-244) - CAB DOOR (10) - CAB & AIR CONDITIONING

1

1327516C95

DOOR

ASSEMBLY - cab (Trimark)

1шт.

1

1329477C1

DOOR

ASSEMBLY - cab (Hanson)(Replaces 1327516C94)

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR - cab

1шт.

3

198184C1

GLASS

- door

1шт.

4

NSS

NOT SOLD SEPARAT

STRIP - door glass, 130-1/2 inch (3315 mm) (Order 198131C1, cut to length)

1шт.

5

NSS

NOT SOLD SEPARAT

STRIP - door front, 52 inch (1 321 mm) (Order 198522C1, cut to length)

1шт.

6

NSS

NOT SOLD SEPARAT

STRIP - door rear, 99 inch (2515 mm) (Order 195522C1, cut to length)

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP - door bottom, 19 inch (483 mm) (Order 198522C1, cut to length)

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - door top front corner, 3-5/16 inch (84 mm) (Order 198522C1, Serial Range: cut-length)

1шт.

9

REF

INSTRUCTION

HANDLE ASSEMBLY - door upper (See Page 9-593)

1шт.

10

REF

INSTRUCTION

HANDLE ASSEMBLY - door lower (1822 only)(See Page 9-595)

1шт.

14

NSS

NOT SOLD SEPARAT

STRIP - cab door opening front, 4 inch (1 372 mm) (Order 196707C1, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear upper. 24 inch (607 mm) (Order 196707C1, Serial Range: cut-length)

1шт.

16

NSS

NOT SOLD SEPARAT

STRIP - cab door opening top, 26 inch (660 mm) (Order 196707C1, Serial Range: cut-length)

1шт.

17

NSS

NOT SOLD SEPARAT

STRIP - cab door opening rear lower, 27 inch (686 mm) (Order 196707C1, Serial Range: cut-length)

1шт.
