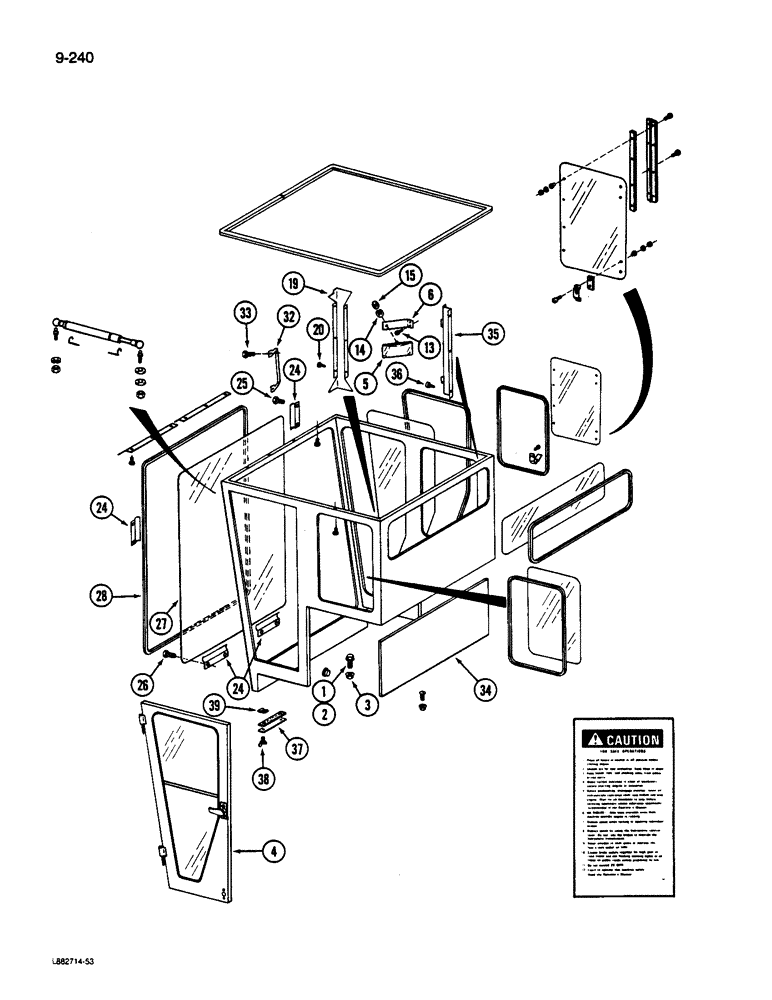

Запчасти Case IH 1822 (9-240) - CAB FRAME (10) - CAB & AIR CONDITIONING

1323784C1

CAB

ASSEMBLY - operators with heater and air conditioning (replaces 1330154C91)

1шт.

1

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

8шт.

2

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

- hex washer head, 3/8 NC x 1-1/4 inch

8шт.

3

1327765C1

LOCK NUT

- hex flanged lock, 3/8 inch NC

18шт.

4

REF

INSTRUCTION

DOOR ASSEMBLY - cab (See page 9-245)

1шт.

5

66518C1

MIRROR

- interior rear view

1шт.

6

1329283C1

ANGLE BAR

BRACKET - mirror mounting

1шт.

13

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess tap, No. 10-16 x 1/2 inch

2шт.

14

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

25520R1

NUT,5/16"-18, G8

- hex, 5/16 inch NC

1шт.

19

1276305C1

SUPPORT

ASSEMBLY - hose cover, left

1шт.

20

27161R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head cross recess tap, No. 10 x 3/8 inch

6шт.

24

196742C2

SUPPORT

- windshield retainer

7шт.

25

181082

PAWL

BOLT - hex, 5/16 NC x 1/2 inch

2шт.

26

181086

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

27

198242C1

GLASS

- cab windshield

1шт.

28

NSS

NOT SOLD SEPARAT

STRIP - windshield glass, 225 inch (5715 mm) (Order 198131C2, Serial Range: cut-length)

1шт.

32

1321545C1

HANDLE

- cab

1шт.

33

181088

BOLT (SPREADER),Hex, 5/16" - 18 x 1", Gr 5

BOLT, hex, 5/16"-18 NC x 1", grade 5

2шт.

34

1321286C2

PANEL

SHEET - rear, acoustical

1шт.

35

1276309C1

SUPPORT

ASSEMBLY - right filler

1шт.

36

27161R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head cross recess tap, No. 10 x 3/8 inch

6шт.

37

1301129C1

DOOR

- clean out

1шт.

38

377363R1

THUMB SCREW,1/4" x 3/4"

- thumb, clean out door (Replaces 377363R1)

2шт.

39

1301128C1

NUT

- thumb screw Continued on next page

2шт.
