Запчасти Case IH 1822 (9-236) - RIGHT CONSOLE (10) - CAB & AIR CONDITIONING

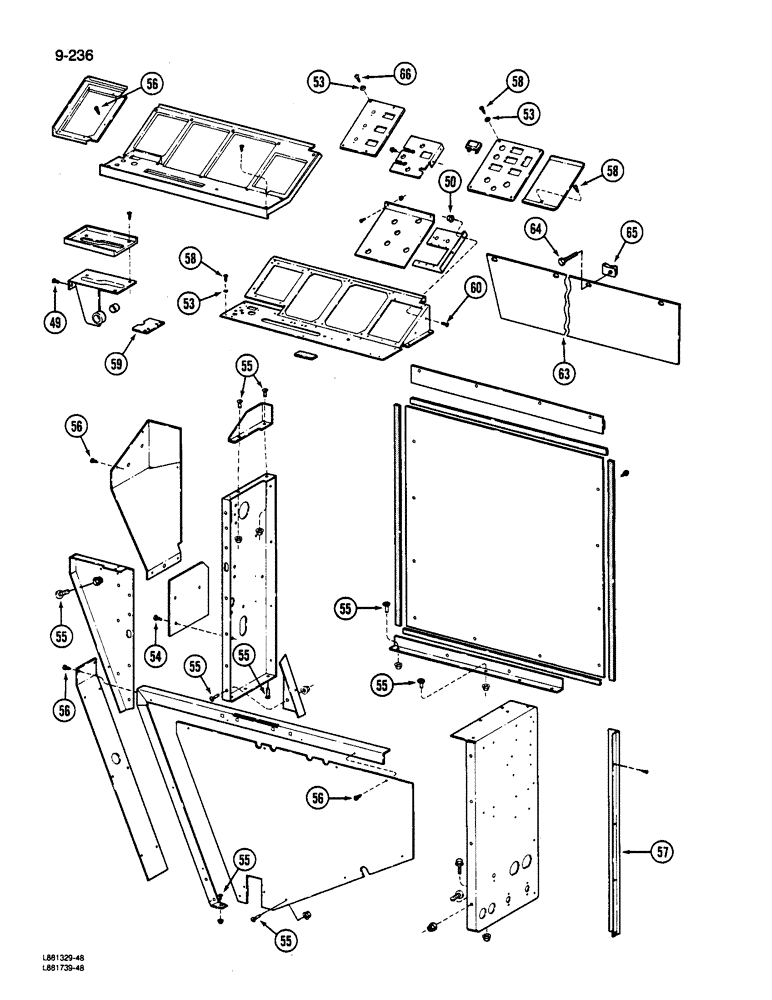

Схема запчастей Case IH 1822 - (9-236) - RIGHT CONSOLE (10) - CAB & AIR CONDITIONING
56
56
66
55
55
55
49
55
50
59
53
56
60
55
54
53
63
58
57
55
55
58
56
55
58
64
53
65

Артикул

Название

Примечание

Количество

49

86511922

SCREW,Pan, #10 - 24 x 3/4"

- pan head cross recess tap, 1/4 NC x 1/2 inch

4шт.

50

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flanged lock, 1/4 inch NC

2шт.

53

1329968C1

WASHER

- oval head, No. 10

8шт.

54

27128R1

SELF-TAP SCREW,Pan, 1/4" - 20 x 1/2"

SCREW - pan head cross recess tap, 1/4 NC x 1/2 inch

3шт.

55

1330152C1

SCREW,Sl Serr Truss Hd, 5/16" - 18 x 3/4"

(Replaces 1285403C1) Sltd Serr Truss Hd, 5/16"-18 x 3/4"

13шт.

56

24392R1

HARDWARE,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross recess tap, No. 10-16 x 1/2 inch

24шт.

57

1285451C1

ANGLE BAR

ANGLE - right corner

1шт.

58

26304R1.

SCREW - pan head cross recess tap, No. 10-16 x 3/4 inch

4шт.

59

1285462C1

LARGE PLATE

PLATE - propulsion restrictor

1шт.

60

1330207C1

SCREW,Sl Serr Truss Hd, 1/4" - 20 x 1/2"

- slotted truss, 1/4 NC x 1/2 inch

2шт.

63

183225C2

BAR

COVER - lower right cab filler trim

1шт.

64

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- hex, 5/16 NC x 1 inch

5шт.

65

403276R1

NUT

- speed

5шт.

66

27073R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - oval head cross recess tap, No. 10-16

4шт.

Выбрано товаров: 14
