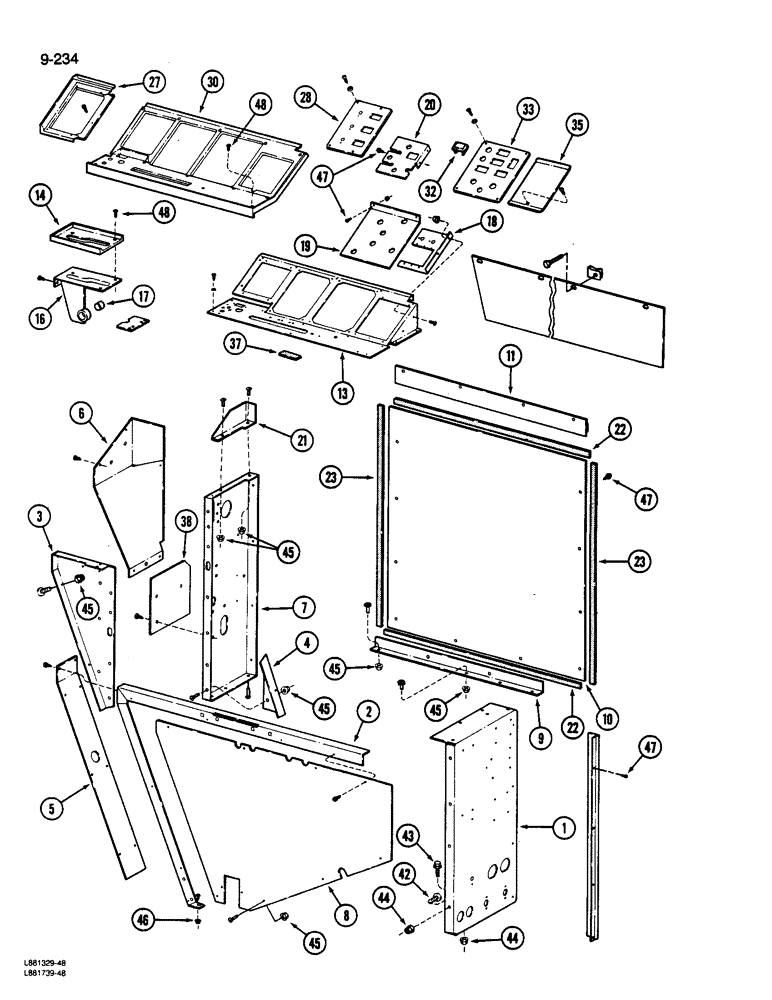

Запчасти Case IH 1822 (9-234) - RIGHT CONSOLE (10) - CAB & AIR CONDITIONING

1

1278799C3

SUPPORT

- console rear

1шт.

2

193031C3

SUPPORT

- console front

1шт.

3

195992C2

SUPPORT

- console extension

1шт.

4

195991C1

SUPPORT

- console extension lower

1шт.

5

193034C1

SUPPORT

- console extension front

1шт.

6

1283101C2

SUPPORT

- console extension front lower

1шт.

7

193064C8

SUPPORT

- console front

1шт.

8

193035C3

LARGE PLATE

PLATE - console inner

1шт.

9

193033C2

ANGLE

- right console lower

1шт.

10

1301218C1

PLATE

- right outer

1шт.

11

1301334C1

SUPPORT

- right outer cover

1шт.

13

1301210C5

SUPPORT

- console top

1шт.

14

198988C1

COVER

- hydrostatic drive console

1шт.

16

193277C91

SUPPORT ASSY.

SUPPORT - hydrostatic drive

1шт.

17

165704C1

BUSHING

- drive support

1шт.

18

1280162C3

SUPPORT

- fuse block

1шт.

19

1280424C1

BRACKET

SUPPORT - back light machine control

1шт.

20

1280422C1

BRACKET

SUPPORT - back light front control

1шт.

21

1327501C1

SUPPORT

- panel front

1шт.

22

NSS

NOT SOLD SEPARAT

STRIP - right console cover, 27 inches (678 mm) (Order 195917C1, Serial Range: cut-lengrh)

2шт.

23

NSS

NOT SOLD SEPARAT

STRIP - right console cover, 27 inch (691 mm) (Order 195917C1, Serial Range: cut-length)

2шт.

27

1280125C1

FRAME

- front control panel

1шт.

28

1280158C2

PANEL

- front control

1шт.

30

87366C1

COVER

- console instrument panel

1шт.

32

245334C1

PLUG

COVER - switch opening right side

5шт.

33

1276211C1

PANEL

- machine control

1шт.

35

187573C1

COVER

- fuse panel

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - console cover, 3 inch (76 mm) (Order stock 195917C1, Serial Range: cut-length)

2шт.

38

1327985C1

PLATE

- hole cover, right front (If equipped)

1шт.

42

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - slotted truss, 3/8 NC x 3/4 inch

2шт.

43

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- hex flanged, 3/8 NC x 1 inch

2шт.

44

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flanged lock, 3/8 inch NC

4шт.

45

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch NC

14шт.

46

1254276C1

PUSH-ON NUT

- pal fastener

1шт.

47

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - hex washer head tap, 1/4 NC x 1/2 inch

18шт.

48

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

31шт.
