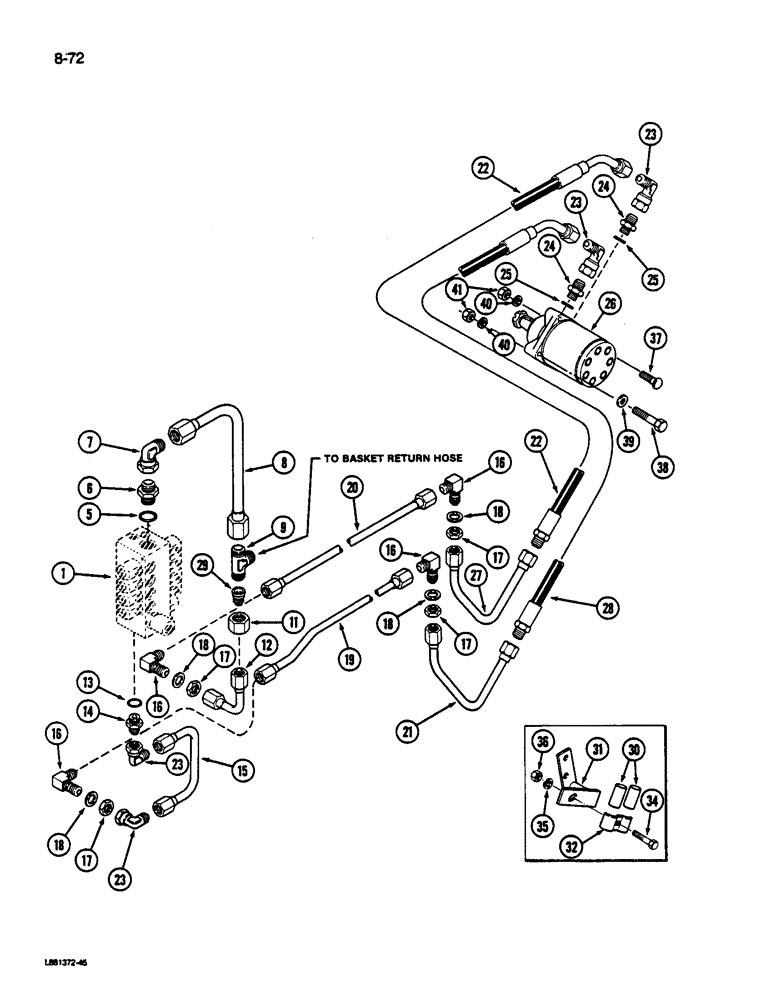

Запчасти Case IH 1822 (8-72) - CONVEYOR UNLOADER MOTOR SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - basket manifold (See Page 8-69)

1шт.

5

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1 inch OD tube

1шт.

6

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - short swivel, 1 inch OD tube

1шт.

7

9410285

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree swivel, 1 inch OD tube

1шт.

8

1285337C1

TUBE

ASSEMBLY - basket valve tank

1шт.

9

218-598

TEE,1 5/16"-12 37 Degree

- three way, 1 inch OD tube

1шт.

11

9403532

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - 1 inch OD tube, Style B

1шт.

12

1285299C2

TUBE

ASSEMBLY - motor return

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 inch OD tube

1шт.

14

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR - short swivel, 3/4 inch OD tube

1шт.

15

1285450C1

TUBE ASSY.

TUBE ASSEMBLY - motor supply

1шт.

16

1285773C1

ELBOW

- bulkhead

4шт.

17

9403296

LOCK NUT,Blkhd, 1 1/16"-12

NUT - bulkhead union lock, 3/4 inch OD tube

4шт.

18

22767R1

WASHER

- flat, 1-3/32 x 1-1/2 x 7/64 inch

4шт.

19

1266199C1

TUBE ASSY.

TUBE ASSEMBLY - motor supply (1822 only)

1шт.

19

1285317C1

TUBE

ASSEMBLY - motor supply (1844 only)

1шт.

20

1266198C2

TUBE

ASSEMBLY - motor return (1822 only)

1шт.

20

1285318C3

TUBE

ASSEMBLY - motor return (1844 only)

1шт.

21

1278770C2

TUBE

ASSEMBLY - motor supply

1шт.

22

1285369C2

HYDRAULIC HOSE,19.05 mm ID x 977.90 mm

- Motor return 19.05 mm ID x 977.90 mm

1шт.

23

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree swivel, 3/4 inch OD tube

4шт.

24

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - reducer, 3/4 to 5/8 inch OD tube

2шт.

219-5123

ELBOW - 3/4 x 5/8 inch tube

2шт.

25

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch OD tube

2шт.

26

REF

INSTRUCTION

MOTOR ASSEMBLY - conveyor unloader (See Page 8-75)

1шт.

27

1285319C2

TUBE

ASSEMBLY - motor return

1шт.

28

1285370C1

HYDRAULIC HOSE,19.05 mm ID x 870.00 mm

- Motor supply 19.05 mm ID x 870.00 mm

1шт.

29

9403406

REDUCER,37 Degree, 1" x 3/4" Tube

FITTING - reducer, 1 to 3/4 inch OD tube

1шт.

30

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

- tube clamp rubber

2шт.

31

1285393C2

SUPPORT

BRACKET ASSEMBLY - motor tube

1шт.

32

157678C1

CLAMP

- tube

1шт.

34

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

35

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

36

120377

NUT,3/8" - 16, Gr 5

1шт.

37

598815R1

CARRIAGE BOLT

BOLT - round head square neck, 1/2 NC x 2-1/4 inch

1шт.

38

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

- hex, 1/2 NC x 2-3/4 inch

3шт.

39

195-106

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 5/64 inch

3шт.

40

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

41

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
