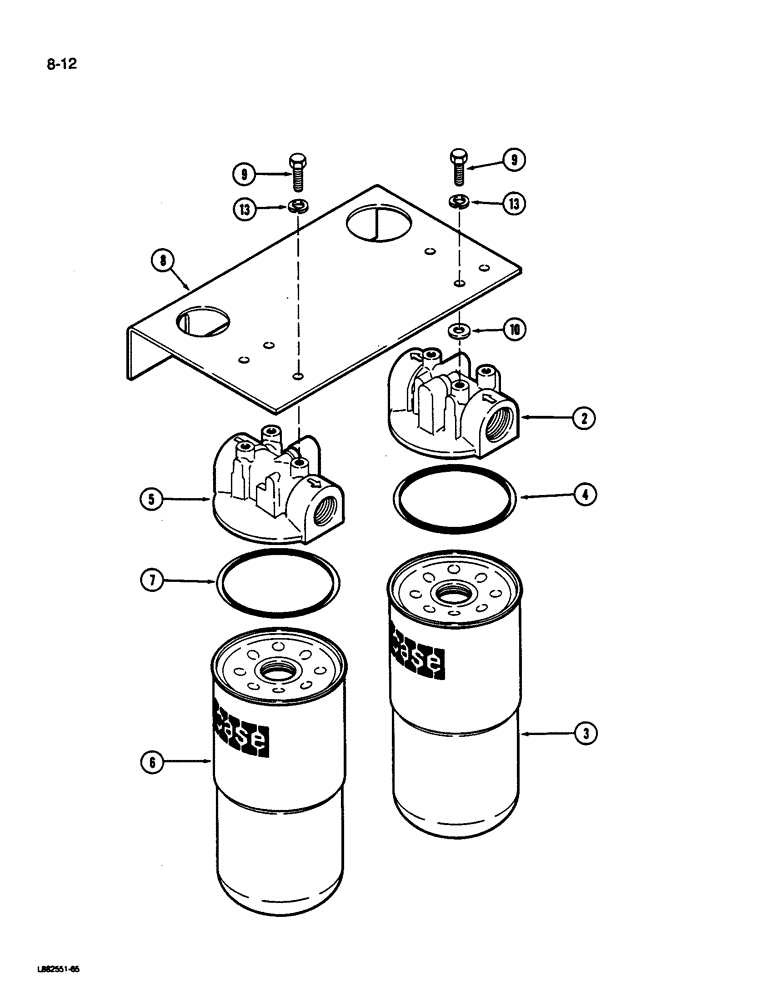

Запчасти Case IH 1822 (8-12) - HYDRAULIC FILTERS, P.I.N. 701 AND AFTER (07) - HYDRAULICS

87784C91

FILTER ASSY

FILTER ASSEMBLY - auxiliary return

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter (Order 87784C91)

1шт.

3

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

Part of element service kit P/N 1329214C1

1шт.

4

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter, round

1шт.

Part of element service kit P/N 1329214C1

1шт.

87785C91

FILTER ASSY

FILTER ASSEMBLY - hydro suction

1шт.

5

NSS

NOT SOLD SEPARAT

HEAD - filter (Order 87785C91)

1шт.

6

A177605

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

Part of element service kit P/N 1329214C1

1шт.

7

93196C1

O-RING,0.139" Thk x 4.484" ID, -246, 75 Duro

GASKET - filter, round

1шт.

Part of element service kit P/N 1329214C1

1шт.

8

1329219C1

BRACKET

- filter

1шт.

9

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch

6шт.

10

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch

3шт.

13

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

1329214C1

HYDRAULIC OIL FILTER

KIT - element service, Includes: Ref. 3, 4, 6 and 7

1шт.
