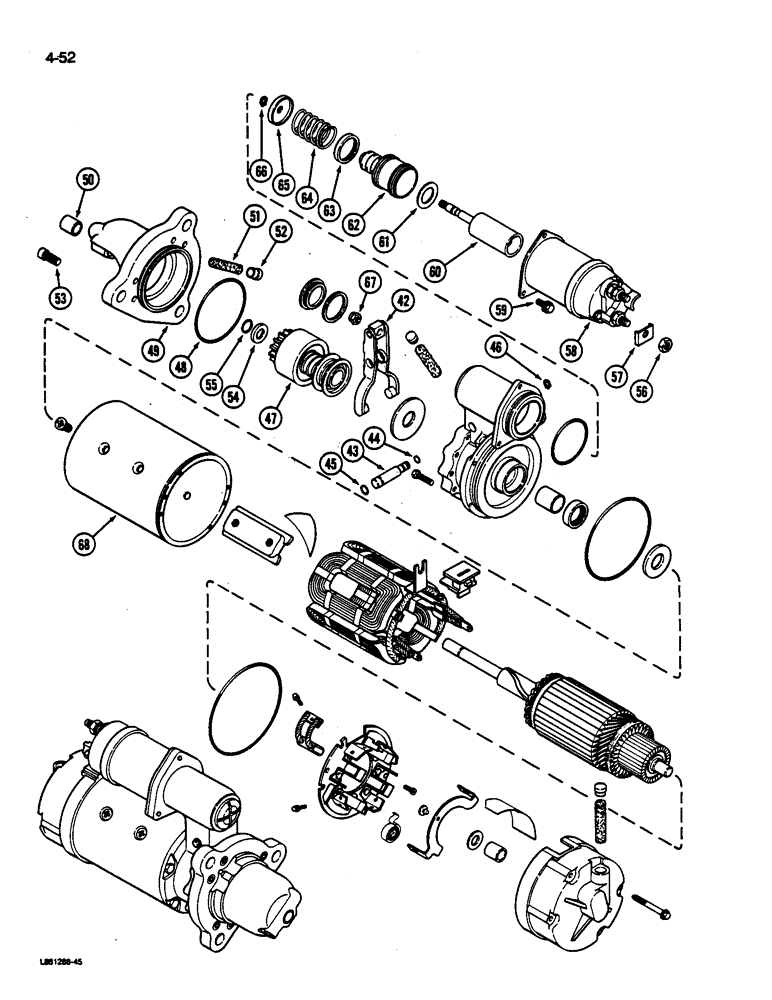

Запчасти Case IH 1822 (4-52) - STARTER, DELCO REMY, HEAVY DUTY SEALED (06) - ELECTRICAL SYSTEMS

1990311

STARTING MOTOR

STARTER - engine

1шт.

1993893R

REMAN-STARTER

Reman for New P/N 1990311

1шт.

1993893C

CORE-STARTER

Return Number

1шт.

42

1985237

LEVER

LEVER ASSEMBLY - shift

1шт.

43

1948529

SHAFT

SHAFT - shift lever

1шт.

44

1894642

RING

O-RING - shift lever shaft, 3/8 inch OD

1шт.

45

1894643

O-RING

O-RING - shift lever shaft, 1/2 inch OD

1шт.

46

9416374

RING

RING - retaining, shift lever shaft

1шт.

47

1986244

DRIVE

MOTOR - drive

1шт.

48

1851960

O-RING

O-RING

1шт.

49

1986489

HOUSING

SPARE PART HOUSING - drive end

1шт.

50

1943628

BUSHING

BUSHING

1шт.

51

1985247

WICK

WICK - oil reservoir

1шт.

52

1985246

CUP

CUP - oil reservoir

1шт.

53

1948537

SCREW

SCREW - drive housing

6шт.

54

1985982

STOP

STOP - pinion

1шт.

55

1986928

RING

RING - retaining

1шт.

56

280136

NUT,3/8"-16, G8

NUT, , Field coil connect to switch 3/8"-16, G8

1шт.

57

1987678

CLIP

CLIP - field coil connect to switch

1шт.

58

115589

SOLENOID SWITCH

1шт.

59

1985332

SCREW

SCREW AND WASHER - solenoid mounting

3шт.

60

1985240

PLUNGER

PLUNGER - solenoid

1шт.

61

1948519

WASHER

WASHER - plunger assembly

1шт.

62

1985243

BOOT

BOOT - plunger

1шт.

63

1948520

RETAINER

RETAINER - plunger spring

1шт.

64

1948521

SPRING

SPRING - plunger

1шт.

65

1948526

RETAINER

RETAINER - plunger spring

1шт.

66

9416374

RING

RING - retaining, plunger assembly

1шт.

67

9412305

NUT

NUT - plunger rod guide adjusting

1шт.

68

NSS

NOT SOLD SEPARAT

HOUSING - field coil (Order 199311)

1шт.
