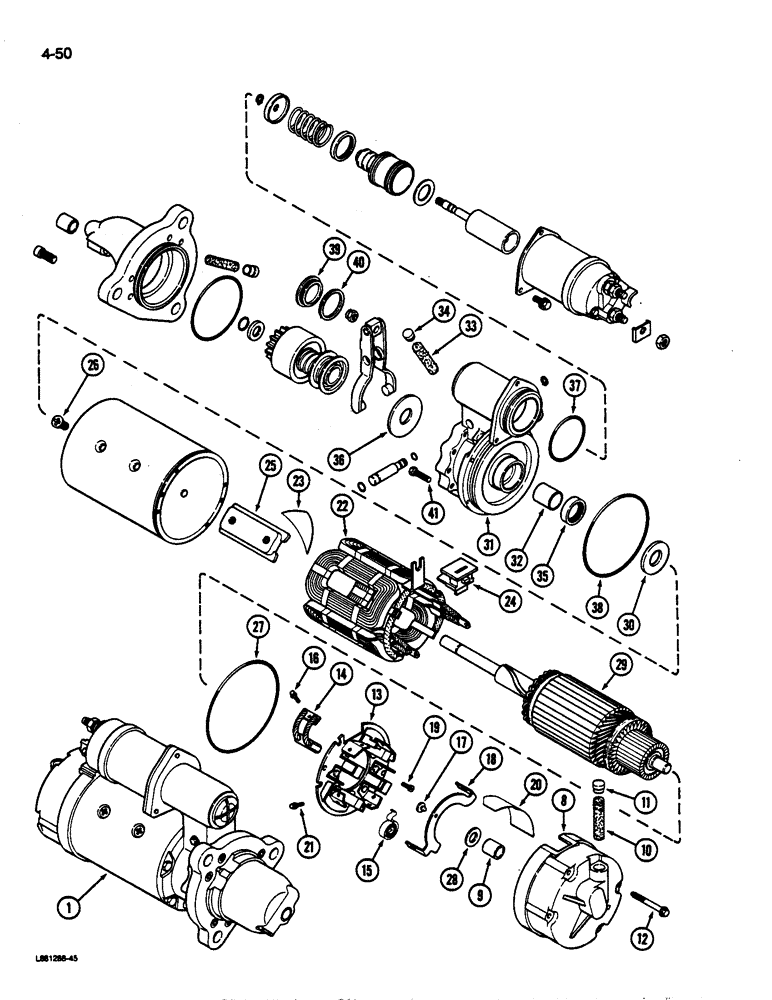

Запчасти Case IH 1822 (4-50) - STARTER, HEAVY DUTY SEALED (06) - ELECTRICAL SYSTEMS

1

1990311

STARTING MOTOR

STARTER ASSEMBLY - engine, 245347C91 (Delco Remy)

1шт.

For solenoid switch for starter, use 1115612.

1шт.

1

1993893R

REMAN-STARTER

Reman for New P/N 1990311

1шт.

1

1993893C

CORE-STARTER

Return Number

1шт.

30887R1

12 PT SCREW,M16 x 40mm, Cl 12.9

SCREW - M16 x 40 mm

3шт.

120377

NUT,3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

120381

WASHER

WASHER - lock, 3/8 inch

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

NUT, Jam, 3/8"-16, G5

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

8

1985315

FRAME

FRAME - commutator end

1шт.

9

1943628

BUSHING

BUSHING

1шт.

10

1985247

WICK

WICK - oil reservoir

1шт.

11

1985246

CUP

CUP - oil reservoir

1шт.

12

1985333

SCREW

SCREW AND WASHER - commutator frame

4шт.

13

1985303

PLATE

BRUSH PLATE ASSEMBLY

1шт.

14

1852889

BRUSH, COMMUTATOR

BRUSH BRUSH

1шт.

15

1985314

SPRING

SPRING - brush

4шт.

16

1985712

SCREW

SCREW - brush attaching

4шт.

17

1985713

INSULATOR

INSULATOR - conductor

1шт.

18

1985714

CABLE

CONDUCTOR

1шт.

19

453661

SCREW

SCREW - brush plate

2шт.

20

1985248

INSULATOR

INSULATOR - brush plate

2шт.

21

1968998

SCREW

SCREW - field coil lead to brush holder

2шт.

22

1985324

COIL

FIELD COIL ASSEMBLY - 4 coils

1шт.

23

1914873

INSULATOR

INSULATOR - field coil

2шт.

24

1985318

GROMMET

GROMMET - field coil

1шт.

25

1985319

PLATE

POLE SHOE

4шт.

26

1968396

SCREW

SCREW - pole shoe

8шт.

27

1985320

RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

O-RING

1шт.

28

1985617

WASHER

WASHER - thrust

1шт.

29

1985249

ARMATURE

ARMATURE

1шт.

30

1965947

SPACER

SPACER - between armature and lever housing

1шт.

31

1987629

HOUSING

HOUSING ASSEMBLY - lever

1шт.

32

1985234

BUSHING

BUSHING

1шт.

33

1985247

WICK

WICK - oil reservoir

1шт.

34

1985246

CUP

CUP - oil reservoir

1шт.

35

1937718

SEAL

SEAL - oil

1шт.

36

1985235

WASHER

WASHER - brake

1шт.

37

1985304

O-RING

O-RING

1шт.

38

916272

O-RING

O-RING

1шт.

39

1945356

PLUG

PLUG - inspection, lever housing

1шт.

40

1964857

GASKET

GASKET - inspection plug

1шт.

41

1914869

SCREW

SCREW - lever housing

5шт.
