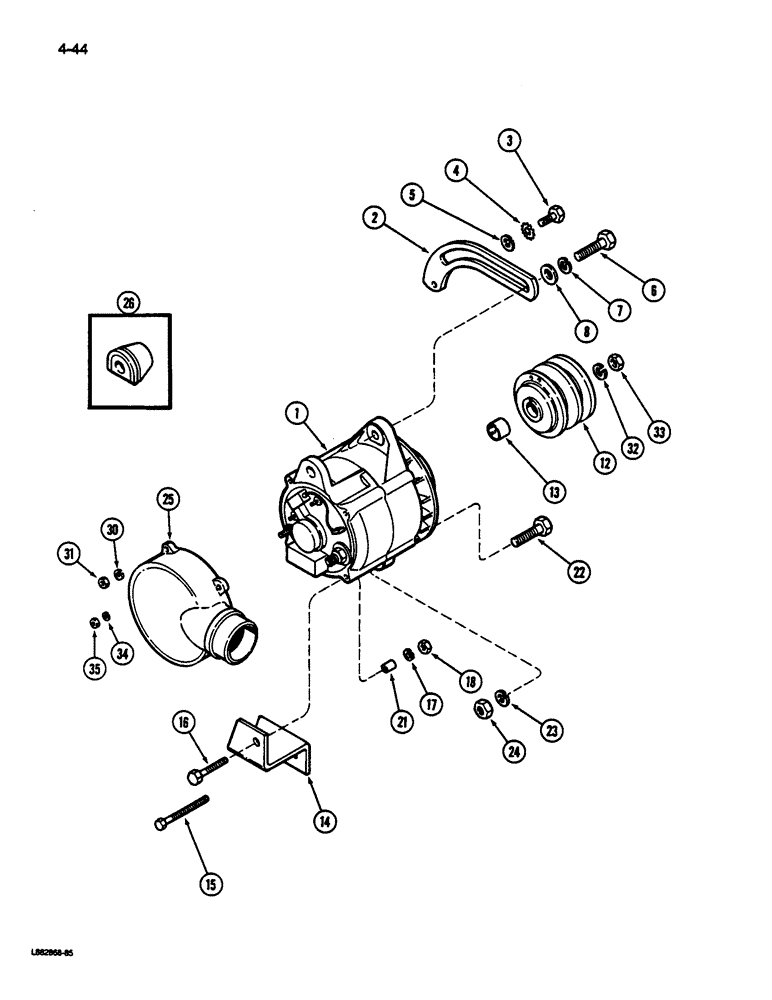

Запчасти Case IH 1822 (4-44) - ATERNATOR MOUNTING, 110 AMPERE ALTERNATOR (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine, 110 ampere (See Page 4-49)

1шт.

2

1977052C2

BRACE

BRACKET - alternator

1шт.

3

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

4

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external lock, 3/8 inch

1шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

6

80294R1

BOLT - hex, 1/2 NF x 2 inch, Grade 8

1шт.

7

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

NLS

NO LONGER SERVICED

- flat, 17/32 x 1-1/16 x 5/64 inch

1шт.

12

1977060C1

PULLEY

- alternator

1шт.

13

892736R1

SPACER,1 1/8" Tube x 5/8"

- 1-1/8 x 5/8 inch

1шт.

14

1977053C1

SUPPORT ASSY.

SUPPORT - alternator rear

1шт.

15

187147

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch

1шт.

16

23458R1

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

17

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

21333R1

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

1шт.

21

1977054C1

BUSHING

- alternator, 10 x 13 x 13 mm

1шт.

22

236484R1

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

23

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

24

21330R1

NUT,1/2"-13, G8

- hex, 1/2 inch NC, Grade 8

1шт.

25

1964814C2

COVER

- alternator end

1шт.

26

1964826C1

GROMMET

GR0MMET - alternator

1шт.

30

892-1105

LOCK WASHER,M5

WASHER - lock, 5 mm

4шт.

31

825-1105

NUT,M5, Cl 8

- hex, M5, Grade 8

4шт.

32

92-7

LOCK WASHER,7/16"

1шт.

33

129-144

NUT,Jam, 7/16"-14, G5

- hex jam, 7/16 inch NC

1шт.

34

892-1104

LOCK WASHER,M4

WASHER - lock, 4 mm

1шт.

35

825-1104

NUT,M4, Cl 8

- hex, M4, Grade 8

1шт.
