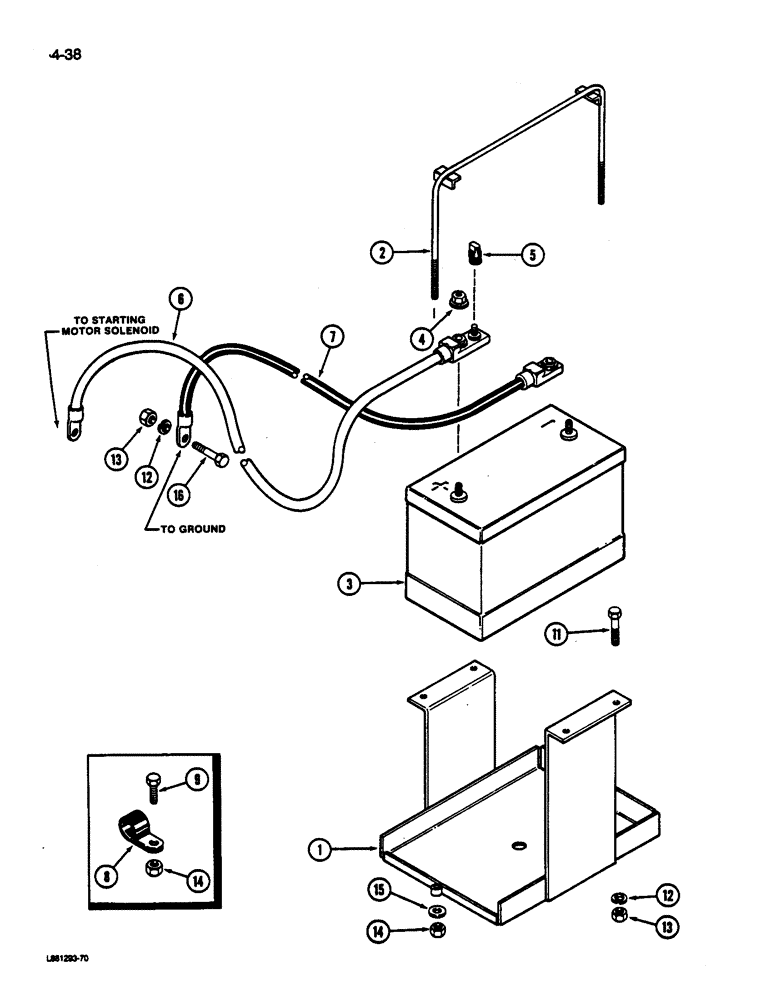

Запчасти Case IH 1822 (4-38) - BATTERY SUPPORT, BATTERY AND CABLES (06) - ELECTRICAL SYSTEMS

1

87477C2

BRACKET

TRAY - battery (Replaces 1266296C1)

1шт.

2

87475C1

BRACKET

ASSEMBLY - battery hold down (Replaces 91581C1)

1шт.

3

A186009

DRY BATTERY

- 12 volt

1шт.

4

476074C1

NUT

- hex, 3/8 inch NC

3шт.

5

245739C1

BUSHING,3/8"-16, 19mm OD x 31.75mm W

- jump start

1шт.

6

92162C1

CABLE PULLING GRIP

CABLE - battery to starter (Replaces 91600C1)

1шт.

7

92163C1

CABLE PULLING GRIP

CABLE - battery to ground (Replaces 91601C1)

1шт.

8

370383R1

CLIP

- battery cable

2шт.

9

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces 180124)

2шт.

11

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

12

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

13

120377

NUT,3/8" - 16, Gr 5

5шт.

14

120376

NUT,5/16"-18, G5

4шт.

15

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 11/32 x 11/16 3/64 inch

2шт.

16

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.
