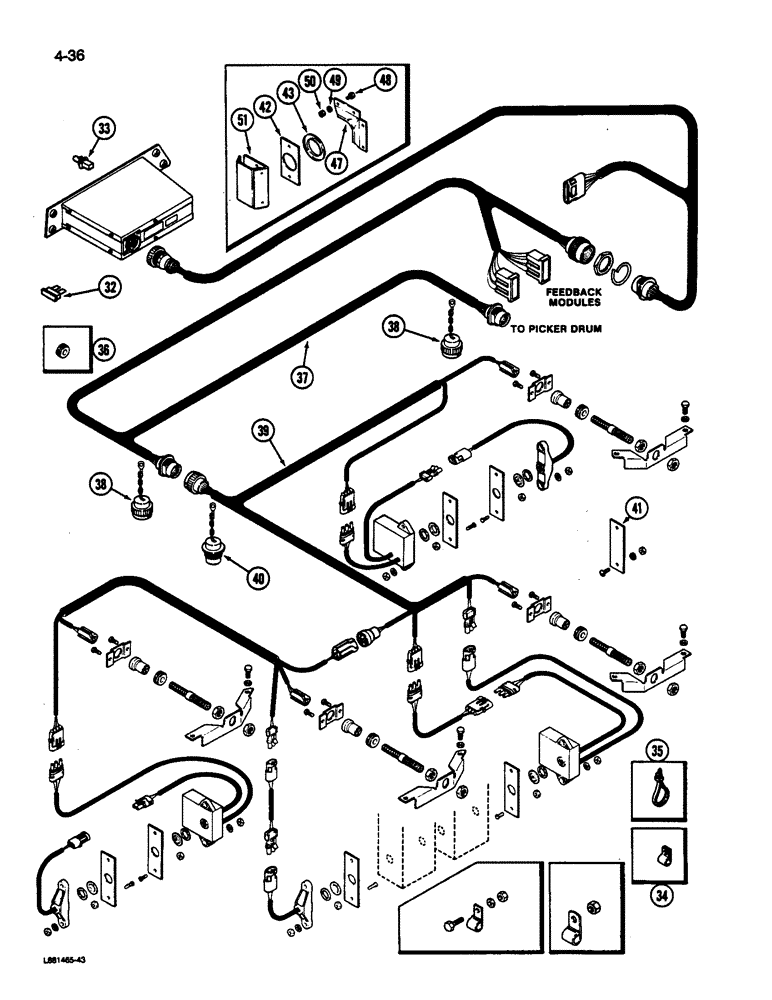

Запчасти Case IH 1822 (4-36) - SYSTEM MONITOR, 1844 COTTON PICKER >1 (06) - ELECTRICAL SYSTEMS

32

A149796

FUSE

(Violet)

1шт.

33

28628R1

BULB,C2F, #73, 14V

o. 73)

11шт.

34

299401C1

CLAMP,5/16", Insul, 1/4" Bolt

Chassis)

2шт.

35

289862C1

CABLE TIE,3/16" x 7"

nitor harness)

6шт.

36

87391C1

GROMMET

ducer cables

4шт.

37

91770C1

HARNESS

or (Chassis)

1шт.

38

NSS

NOT SOLD SEPARAT

Order harness 91770C1)

2шт.

39

91767C1

HARNESS

or inner

2шт.

40

NSS

NOT SOLD SEPARAT

r (Order harness 91767C1)

2шт.

41

87500C1

COVER

hole (Prior to P.I.N. JJC0002001)

4шт.

42

1339057C1

LARGE PLATE

(P.I.N. JJC0002001 and after)

4шт.

43

1339056C1

CAP

ens (P.I.N. JJC0002001 and after)

16шт.

47

1338088C1

SHIELD

r eye, left

6шт.

47

1338089C1

SHIELD

r eye, right (Shown)

6шт.

48

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

ad, 1/4 NC x 1/2 inch

48шт.

49

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

48шт.

50

120375

NUT,Hex, 1/4" - 20, Gr 5

48шт.

51

1339187C1

SHIELD

r sensor (P.I.N. JJC0002001 and after)

2шт.

436807

d slotted, No. 4-40 x 3/4 inch

8шт.

REF# 51A REPLACED BY 370-10412 SCREW 7/22/96

1шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

8шт.

225-14104

NUT,#4-40

4-40

8шт.

REF# 51C REPLACED BY 129-13 NUT 7/22/96

1шт.
