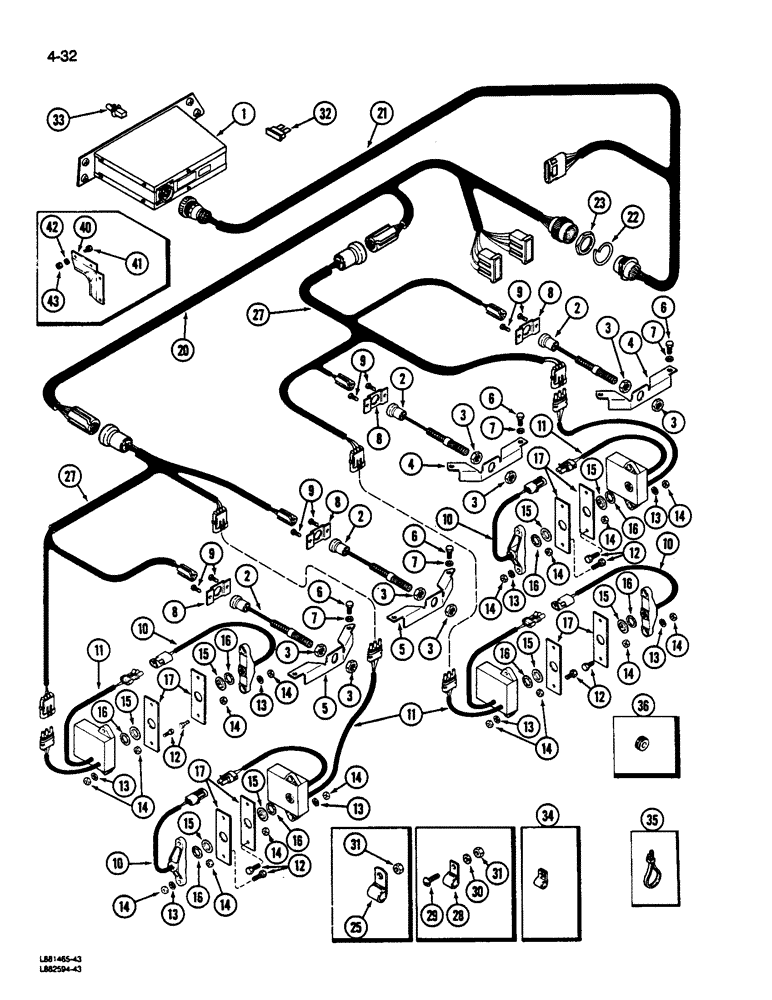

Запчасти Case IH 1822 (4-32) - SYSTEM MONITOR, 1822 COTTON PICKER (06) - ELECTRICAL SYSTEMS

1

91778C91

REMAN-ELECT GAUGE

GAUGE - monitor system, remanufactured (North America only)

1шт.

1

245949C1

GAUGE

- monitor system, new

1шт.

2

91773C1

TRANSMITTER

TRANSDUCER - rotor speed

4шт.

3

219758

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NF

8шт.

4

87180C1

BRACKET

- transducer, left

2шт.

5

87181C1

BRACKET

- transducer, right

2шт.

6

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

7

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

91795C1

SUPPORT

BRACKET - transducer mounting

4шт.

9

593762R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

SCREW - tapping, No. 10 x 3/4 inch

8шт.

10

245872C2

CONTROL

EMMITER - control

4шт.

11

245873C2

CONTROL

DETECTOR - control

4шт.

12

1338692C1

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1"

BOLT - hex, cover monitor plate (Replaces 187797C1)

16шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

14

120375

NUT,Hex, 1/4" - 20, Gr 5

32шт.

15

83901C1

PACKAGE

CAP ASSEMBLY - lens

8шт.

16

1338700C1

GASKET

- lens cap

8шт.

17

87048C3

LARGE PLATE

PLATE - cover monitor

8шт.

20

91771C1

HARNESS

- monitor (Chassis)

1шт.

21

245830C1

HARNESS

- monitor (Cab)

1шт.

22

490691C1

LOCK WASHER,#18 Shell

- connector

3шт.

23

490692C1

LOCK NUT,#18 Shell

- connector

3шт.

25

670043C1

CLIP

- drum harness

18шт.

27

91769C1

HARNESS

- drum

2шт.

28

371036R1

CLIP

- cable, 11/32 inch diameter hole

8шт.

28

362123R1

CLIP

- cable retaining, 15/32 inch diameter hole

14шт.

29

937875R1

SCREW,Serr, 1/4" - 20

- slotted, 1/4 NC x 3/4 inch

16шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

16шт.

31

120375

NUT,Hex, 1/4" - 20, Gr 5

40шт.

32

A149796

FUSE

- monitor, 3 ampere (Violet)

1шт.

33

28628R1

BULB,C2F, #73, 14V

- monitor (No. 73)

11шт.

34

299401C1

CLAMP,5/16", Insul, 1/4" Bolt

- harness (Chassis)

2шт.

35

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie (Monitor harness)

6шт.

36

87391C1

GROMMET

- transducer cables

2шт.

40

1338088C1

SHIELD

- monitor eye, left

3шт.

40

1338089C1

SHIELD

- monitor eye, right (Shown)

3шт.

41

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

BOLT - truss head, 1/4 NC x 1/2 inch

32шт.

42

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

32шт.

43

120375

NUT,Hex, 1/4" - 20, Gr 5

32шт.

370-10412

SCREW,Sl Pan Hd, #4 - 40 x 3/4"

- pan head slotted, No. 4-40 x 3/4 inch (replaces 436807)

8шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

8шт.

129-13

NUT,#4-40

(Replaces 134524) #4-40

8шт.
