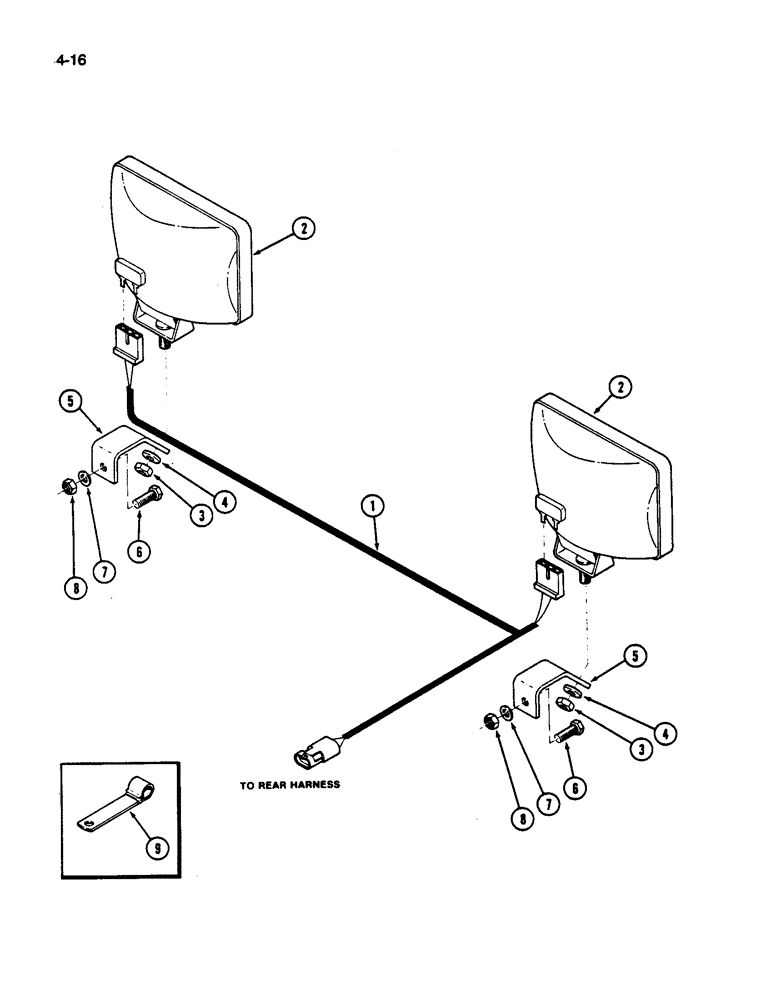

Запчасти Case IH 1822 (4-16) - BASKET LAMPS AND HARNESS (06) - ELECTRICAL SYSTEMS

1

92068C1

CABLE

HARNESS ASSEMBLY - basket lamps (Replaces 245962C1)

1шт.

2

245897C91

LAMP, WORK

LAMP ASSEMBLY - basket (80 x 30 Halogen flood)

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Replaces 120378) 1/2"-13, G5

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces 120384) 1/2"

2шт.

5

561915R1

BRACKET

- lamp mounting

2шт.

6

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

REF# 6 REPLACED BY 413-616 7/22/96

1шт.

6

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

7

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

120377

NUT,3/8" - 16, Gr 5

2шт.

9

362126R1

CLIP

- basket light harness

6шт.
