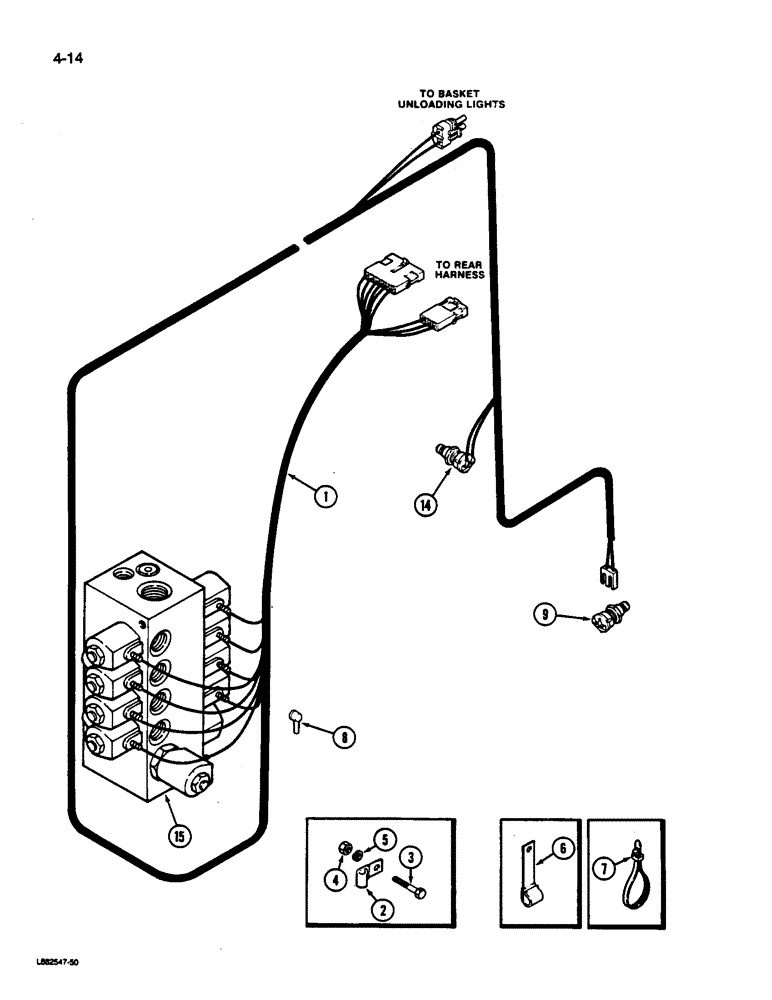

Запчасти Case IH 1822 (4-14) - BASKET HARNESS (06) - ELECTRICAL SYSTEMS

1

92060C1

HARNESS

- basket (Replaces 91804R1)

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness

8шт.

3

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

3шт.

4

120377

NUT,3/8" - 16, Gr 5

3шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

362126R1

CLIP

CUP - harness

3шт.

7

289862C1

CABLE TIE,3/16" x 7"

STRAP - tie

1шт.

8

399470R1

BOOT

- solenoid

1шт.

9

121629C2

SWITCH

- door open limit

1шт.

14

121629C2

SWITCH

- unloading limit

1шт.

15

REF

INSTRUCTION

VALVE - basket control (See Page 8-33)

1шт.
