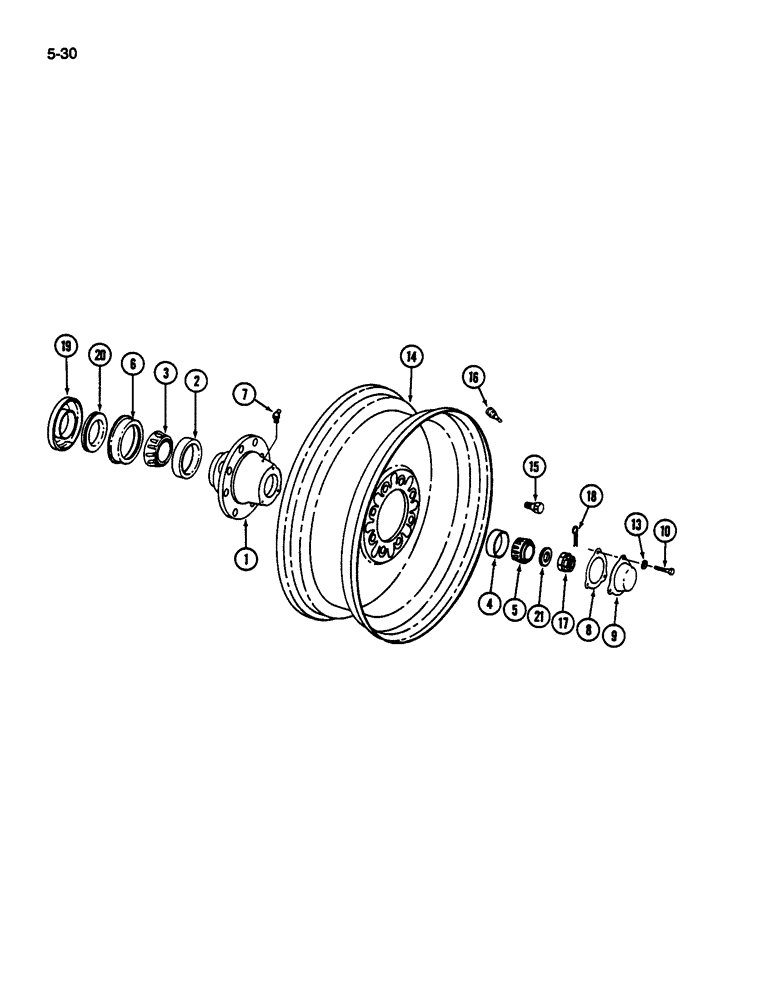

Запчасти Case IH 1822 (5-30) - REAR WHEEL AND HUB, 1822 COTTON PICKER (04) - STEERING

1

1323559C1

HUB

ASSEMBLY - wheel

2шт.

2

619387R1

BEARING CUP

CUP - bearing, inner

1шт.

3

G15215

ROLLER BEARING

CONE - bearing, inner

1шт.

4

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Outer

1шт.

5

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, outer

1шт.

6

48703D

RETAINER

- oil seal

1шт.

7

19700R91

FITTING

- 45 degree grease, 3/16 inch hole

2шт.

8

369860R1

GASKET,0.79mm Thk

- hub cap

2шт.

9

369859R1

CAP

- wheel hub

2шт.

10

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

13

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

86833C1

RIM

WHEEL - 24 x W10H guide

2шт.

15

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - guide wheel

16шт.

16

179482C1

VALVE STEM

VALVE - stem, inflating (Replaces 27549R1)

2шт.

17

26963R1

NUT,7/8"-14, G8

NUT - hex slotted, 7/8 inch NF

2шт.

18

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

19

48701D

SHIELD

- wheel dust

2шт.

20

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

- oil, wheel

2шт.

21

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- outer bearing retainer

2шт.
