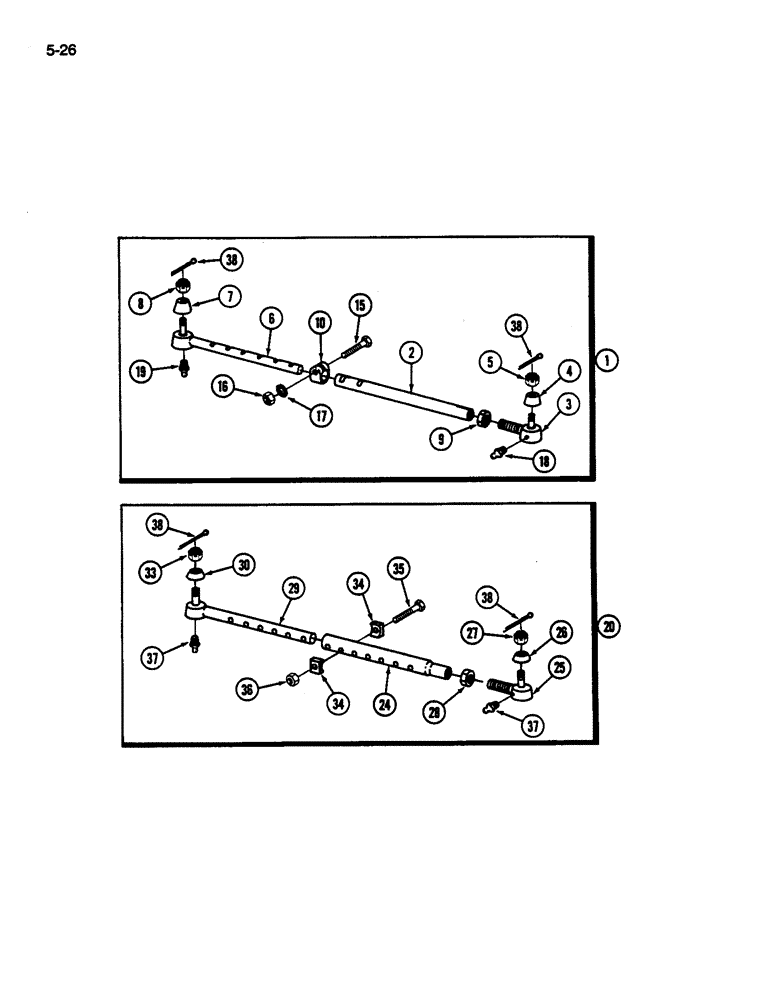

Запчасти Case IH 1822 (5-26) - STEERING AXLE TIE RODS, 1822 COTTON PICKER (04) - STEERING

1

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie (Order components)(Columbus Auto Part Manufacturer or O & S Bearing Manufacturer)(Alternate with Ref No. 20)

2шт.

2

383917R1

TUBE

- rod

1шт.

17

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

3

384006R92

END

ASSEMBLY - right hand thread

1шт.

4

358900R1

SEAL

COVER - dust

1шт.

5

125267

NUT

- hex slotted, 5/8 inch NF

1шт.

6

359984R93

TIE-ROD

ASSEMBLY - welded end

1шт.

7

358900R1

SEAL

COVER - dust

1шт.

8

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

1шт.

9

374062R1

JAM NUT

NUT - jam, tube

1шт.

10

359986R1

CLAMP

- adjustable end

1шт.

15

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- hex, 1/2 NF x 2-1/4 inch

1шт.

16

25-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

19

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4 inch

1шт.

20

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie (Order components)(TRW Manufacturer) (Alternate with Ref. No. 1)

2шт.

24

1270912C1

TUBE,1.02 - 1.03" ID, 1.375" OD

- rod

1шт.

25

1270913C1

BALL JOINT

END ASSEMBLY - right hand thread

1шт.

26

1270906C1

BOOT

COVER - dust

1шт.

27

125267

NUT

- hex slotted, 5/8 inch NF

1шт.

28

1270907C1

TUBE NUT

NUT - hex jam

1шт.

29

1270914C1

BALL JOINT

END ASSEMBLY - rod

1шт.

30

1270906C1

BOOT

COVER - dust

1шт.

33

NLS

NO LONGER SERVICED

- hex slotted, 5/8 inch NF

1шт.

34

A43369

CLAMP

- adjustable end (Replaces 180586C1)

2шт.

35

25776R1

BOLT

BOLT - hex, 3/8 NF x 2-1/2 inch

1шт.

36

359784C1

LOCK NUT,3/8"-24, GC

NUT - hex lock, 3/8 inch NF, Grade 8

1шт.

37

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

38

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.
