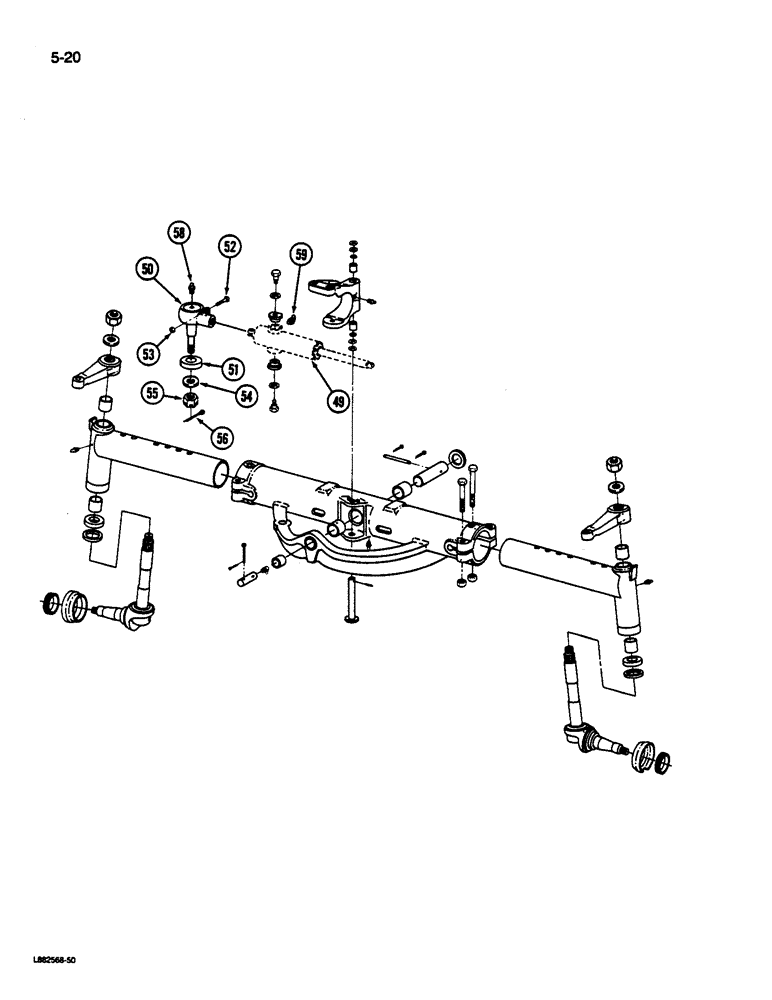

Запчасти Case IH 1822 (5-20) - STEERING AXLE, 1822 COTTON PICKER (04) - STEERING

49

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Page 5-13)

1шт.

50

1280566C2

BALL JOINT

END ASSEMBLY - ball joint rod

1шт.

50

71820C91

END

ASSEMBLY - ball joint rod

1шт.

51

250586C1

SEAL

- dust (Use with end 1280566C2)

1шт.

51

71822C1

SEAL

- dust (Use with end 71820C91)

1шт.

52

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

53

69981R1

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.

54

614451R1

WASHER

- flat, 1-1/32 x 1-3/4 x 7/64 inch

1шт.

55

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT - hex slotted, 7/8 inch NF

1шт.

56

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

58

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

59

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - 65 degree grease, 3/16 inch

2шт.
