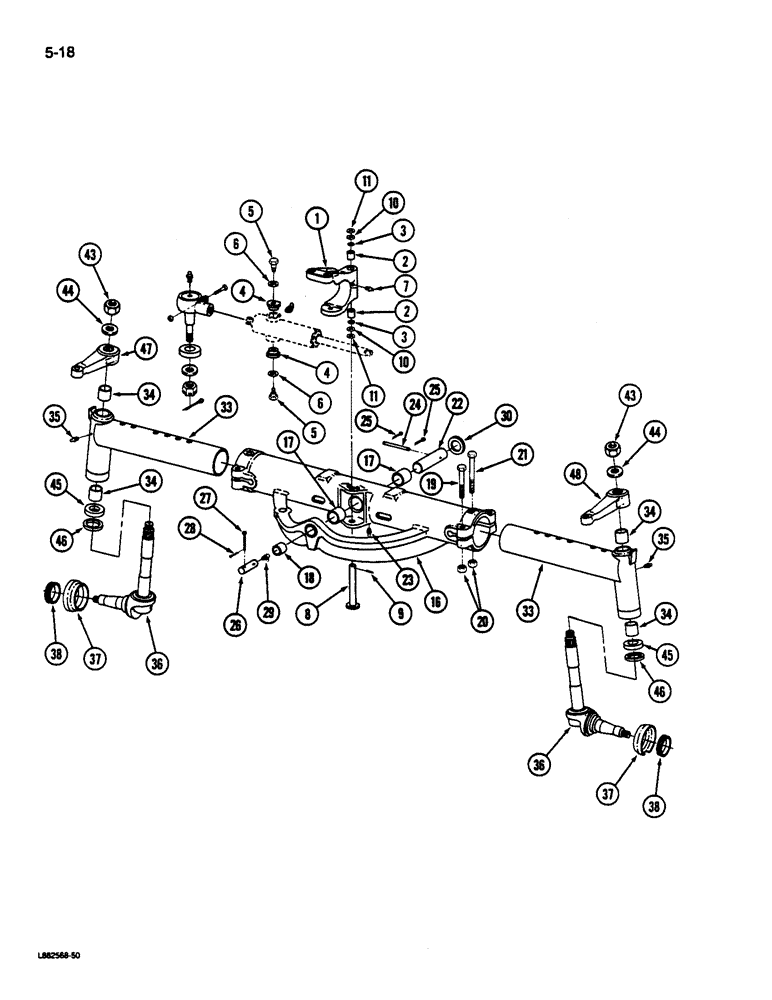

Запчасти Case IH 1822 (5-18) - STEERING AXLE, 1822 COTTON PICKER (04) - STEERING

1

71787C91

ARM

ASSEMBLY - center steering

1шт.

2

71788C1

BUSHING,25.4mm ID x 28.6mm OD x 25.4mm L

- arm

2шт.

3

350818R1

O-RING,0.984" ID x 0.139" Width

- 1 x 1-1/4 inch

2шт.

4

531237R1

CAP

- trunnion

2шт.

5

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

- trunnion cap

2шт.

6

1270887C1

WASHER

- trunnion cap bolt

2шт.

7

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

8

531239R1

PIN,50.8mm OD x 193.42mm L

- center arm pivot

1шт.

9

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

10

71421C1

WASHER

- flat, 1-1/32 x 1-3/4 x 1/64 inch

1шт.

11

Q175

WASHER

- flat, 1-1/32 x 1-2/4 x 0.042 inch

1шт.

16

120733C91

AXLE, REAR

AXLE ASSEMBLY - steering

1шт.

17

531242R1

BUSHING,50.89mm ID x 54.113mm OD x 38.1mm L

- axle

2шт.

18

482669R1

BUSHING,31.8mm ID x 34.95mm OD x 26.92mm L

- front pivot

1шт.

19

24998R1

BOLT,Hex, 3/4" - 16 x 4", Gr 8

- hex, 3/4 NF x 4 inch, Grade 8

4шт.

20

218404

NUT,3/4"-16, G8

- hex, 3/4 inch NF, Grade 8

6шт.

21

25868R1

BOLT,Hex, 3/4" - 16 x 6 1/2", Gr 8

- hex, 3/4 NC x 6-1/2 inch, Grade 8

2шт.

22

1280692C1

AXLE PIN

PIN - axle rear pivot

1шт.

23

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - grease, 3/16 inch hole

1шт.

24

1280683C1

AXLE PIN,12.7mm OD x 178mm L

PIN - retaining, 1/2 x 6-1/2 inch

1шт.

25

934792R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

2шт.

26

120732C2

AXLE PIN,31.7mm OD x 90mm L

PIN - axle front pivot

1шт.

27

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN - headed, 3/8 x 4-1/8 inch

1шт.

28

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

29

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING - grease, short 65 degree 1/8 inch PTF

1шт.

30

100063C1

THRUST WASHER

- axle thrust

1шт.

33

531260R93

AXLE

EXTENSION ASSEMBLY - axle

2шт.

34

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- extension

2шт.

35

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING - grease, 3/16 inch hole

2шт.

36

71785C2

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering

2шт.

37

48701D

SHIELD

- wheel dust

1шт.

38

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

- oil, wheel

1шт.

43

427546

JAM NUT,Jam, 1 3/8"-12, G5

- hex jam, 1-3/8 inch NF

2шт.

44

Q326

WASHER

- flat, 1-13/32 x 2-3/4 x 3/64 inch

2шт.

45

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING - thrust, steering knuckle pivot thrust

2шт.

46

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle pivot

2шт.

47

148418C1

ARM

- right steering knuckle, left

1шт.

48

148419C1

STEERING ARM

ARM - left steering knuckle, right

1шт.
