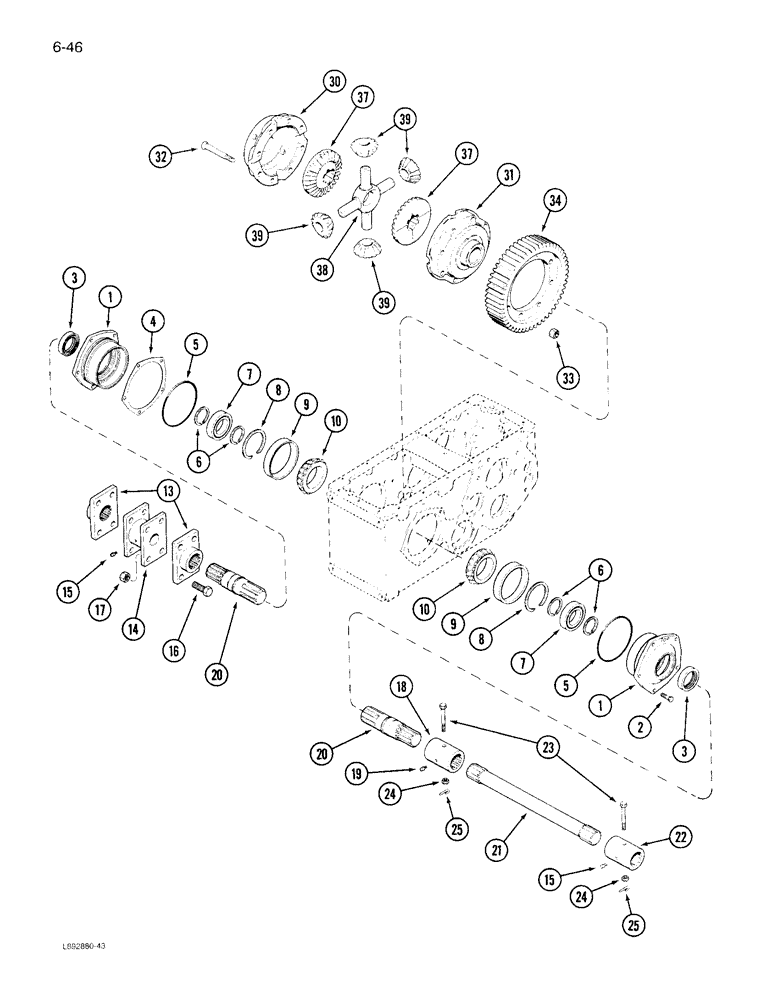

Запчасти Case IH 1822 (6-46) - TRANSMISSION DIFFERENTIAL (03) - POWER TRAIN

1963918C3

TRANSMISSION

ASSEMBLY - cotton picker, 1822 (See Note)

1шт.

1963922C3

TRANSMISSION

ASSEMBLY - cotton picker, 1844 (See Note)

1шт.

1

379445R1

BEARING ASSY,61.9 mm ID x 76.2 mm

- bearing

2шт.

2

27347R1

BOLT,Hex, 3/8" - 16 x 1 1/8" , Gr 8

- hex, 3/8 NC x 1-1/8 inch, Grade 8

10шт.

3

380182R91

OIL SEAL,42.42mm ID x 62.05mm OD x 8.41mm Thk

- oil

2шт.

4

573976R1

DISC

SHIM - cage, 0.003 inch

1шт.

4

573977R1

SHIM

- cage, 0.005 inch

1шт.

4

573978R1

SHIM

- cage, 0.010 inch

1шт.

5

610412C1

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

- 4-5/8 x 4-7/8 x 1/8 inch (replaces 614012C1) (subs to 238-5247)

2шт.

6

379511R1

SNAP RING,#177, 1.657", Ext

RING - retaining snap

4шт.

7

1963958C1

BEARING, BALL,44.99 mm ID x 74.99 mm OD x 16 mm

BEARING - differential shaft, 2-15/16 inch OD

2шт.

8

379485R1

RING

- retaining snap

2шт.

9

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing

2шт.

10

ST2039

BEARING CONE,68.26mm ID x 22.07mm W

CONE - bearing, differential

2шт.

13

214639C1

HUB

- axle

3шт.

See Figure Note.

1шт.

14

1278328C3

SPACER

- axle

1шт.

See Figure Note.

1шт.

15

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING - grease, 1/4 inch PT

1шт.

See Figure Note.

1шт.

16

414077C1

BOLT,Hex, 5/8" - 18 x 1 3/4"

- hex, 5/8 NC x 1-3/4 inch

8шт.

See Figure Note.

1шт.

17

414089C1

FLANGE NUT,5/8" - 18

NUT - hex, 5/8 inch NC

8шт.

See Figure Note.

1шт.

18

184342C1

COUPLING

ASSEMBLY - axle

2шт.

See Figure Note.

1шт.

19

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 inch drive type

1шт.

See Figure Note.

1шт.

20

533847R3

SHAFT

- differential

2шт.

21

1288901C1

SHAFT

- drive

1шт.

See Figure Note.

1шт.

23

27652R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex drilled, 3/8 NC x 3 inch, Grade 8

2шт.

See Figure Note.

1шт.

24

654049R1

LOCK NUT

- hex slotted, 3/8 inch NC

2шт.

See Figure Note.

1шт.

25

21864R1

COTTER PIN

- retaining

2шт.

See Figure Note.

1шт.

395631R92

PACKAGE

CASE AND GEAR KIT - differential

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - differential

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - differential

1шт.

32

395636R2

BOLT,1/2" - 20 x 3.87"

- housing retaining

8шт.

32

113-345

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

- hex, 7/16 NC x 3-1/2 inch

2шт.

33

381368R1

NUT,Hex, 1/2" - 20, Gr 8

- hex special, Grade 8

8шт.

33

129-104

NUT,7/16"-14, G5

2шт.

34

NSS

NOT SOLD SEPARAT

GEAR - driven, 53 tooth

1шт.

37

360962R2

GEAR

- level, 28 tooth

2шт.

38

388093R1

U-JOINT SPIDER

SPIDER - differential

1шт.

39

360961R1

GEAR

- spider, 15 tooth

4шт.
