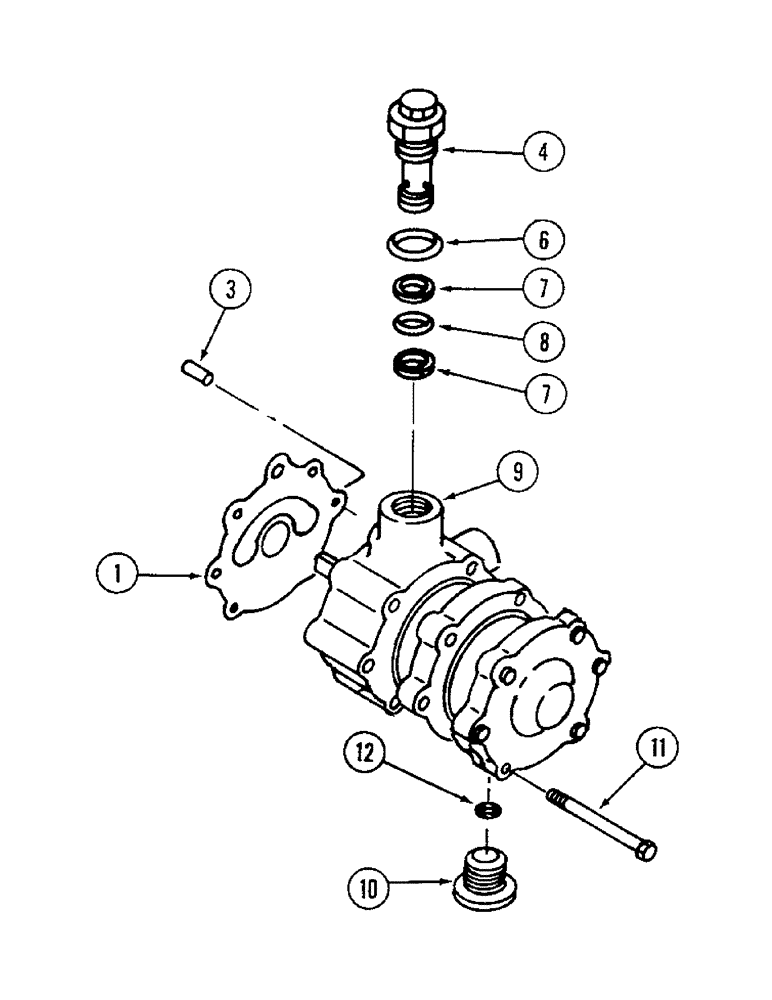

Запчасти Case IH 1822 (6-32) - HYDROSTATIC PUMP CHARGE PUMP (03) - POWER TRAIN

133761C91

PUMP

ASSEMBLY - charge (1822 Cotton Picker)

1шт.

92740C1

PUMP

ASSEMBLY - charge (1844 Cotton Picker)

1шт.

1

133760C1

GASKET

- charge pump

1шт.

3

140754C1

PIN

- dowel, 5/16 x 5/8 inch

2шт.

4

140771C1

VALVE

ASSEMBLY - low pressure relief

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

-117, 90 Duro, .799" ID x .103" Thk

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - pump (See Note)

1шт.

10

9410356

PLUG

- 1/4 inch straight thread o-ring boss

1шт.

11

113-159

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

4шт.

12

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
