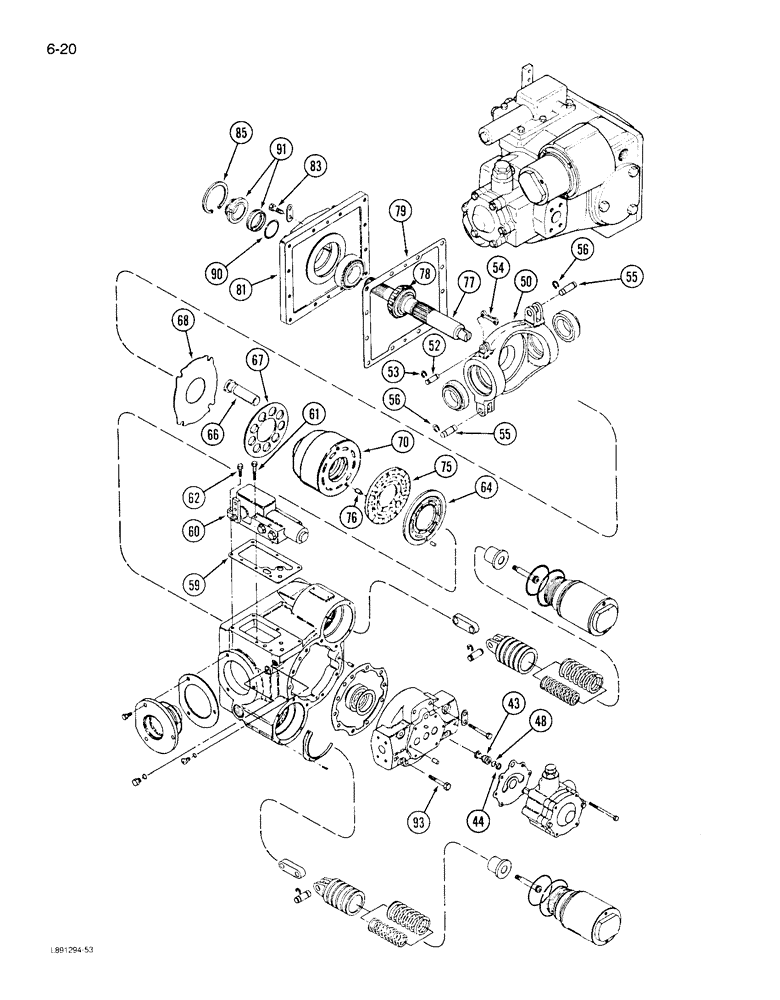

Запчасти Case IH 1822 (6-20) - HYDROSTATIC PUMP, 1822 COTTON PICKER (03) - POWER TRAIN

PUMP ASSEMBLY - hydrostatic (Continued)

1шт.

43

140769C1

CHECK VALVE

VALVE - check

1шт.

44

140770C1

RING

- check valve

1шт.

48

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- check valve, 9/16 x 3/4 x 3/32 inch

2шт.

50

1980163C1

HOUSING

PLATE ASSEMBLY - swash (Includes Ref 97)

1шт.

52

140765C1

PIN

- control valve link

1шт.

53

875777R1

SNAP RING,#25, Ext

Ring, Snap, , control valve link pin #25, Ext

2шт.

54

142387C1

PIPE FITTING

LINK - control valve, connecting

1шт.

55

140766C1

PIN,14.22mm OD x 39.12mm L

- servo linkage

2шт.

56

28145R1

SNAP RING,#56, Ext

Ring, Snap, , servo linkage pin #56, Ext

4шт.

59

133756C1

GASKET

- control valve

1шт.

60

REF

INSTRUCTION

VALVE - control (See Page 6-31)

1шт.

61

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

62

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

64

1980165C1

PLATE

- pump valve

1шт.

1980164C1

KIT

ROTATING KIT - group

1шт.

66

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

67

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

68

NSS

NOT SOLD SEPARAT

PLATE - thrust

1шт.

70

NSS

NOT SOLD SEPARAT

BARREL - cylinder

1шт.

75

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

76

140754C1

PIN

- bearing plate dowel

2шт.

77

1980162C1

SHAFT

ASSEMBLY - drive input (with snap ring)

1шт.

78

92742C1

TAPERED BEARING

CONE - bearing, drive shaft

1шт.

79

142414C1

GASKET

- mounting flange

1шт.

81

NSS

NOT SOLD SEPARAT

FLANGE - mounting (Order 1976869C1)

1шт.

83

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

12шт.

85

606937C1

SNAP RING,2.835", Int, #281

Ring, Snap, 2.835", Int, #281

1шт.

1346205C1

SEAL KIT

SEAL ASSEMBLY - shaft (Replaces 142518C92)

1шт.

90

NSS

NOT SOLD SEPARAT

O-RING - shaft

1шт.

91

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

93

24841R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

Hex, 3/8"-16 x 1 1/2 inch, G8

2шт.
